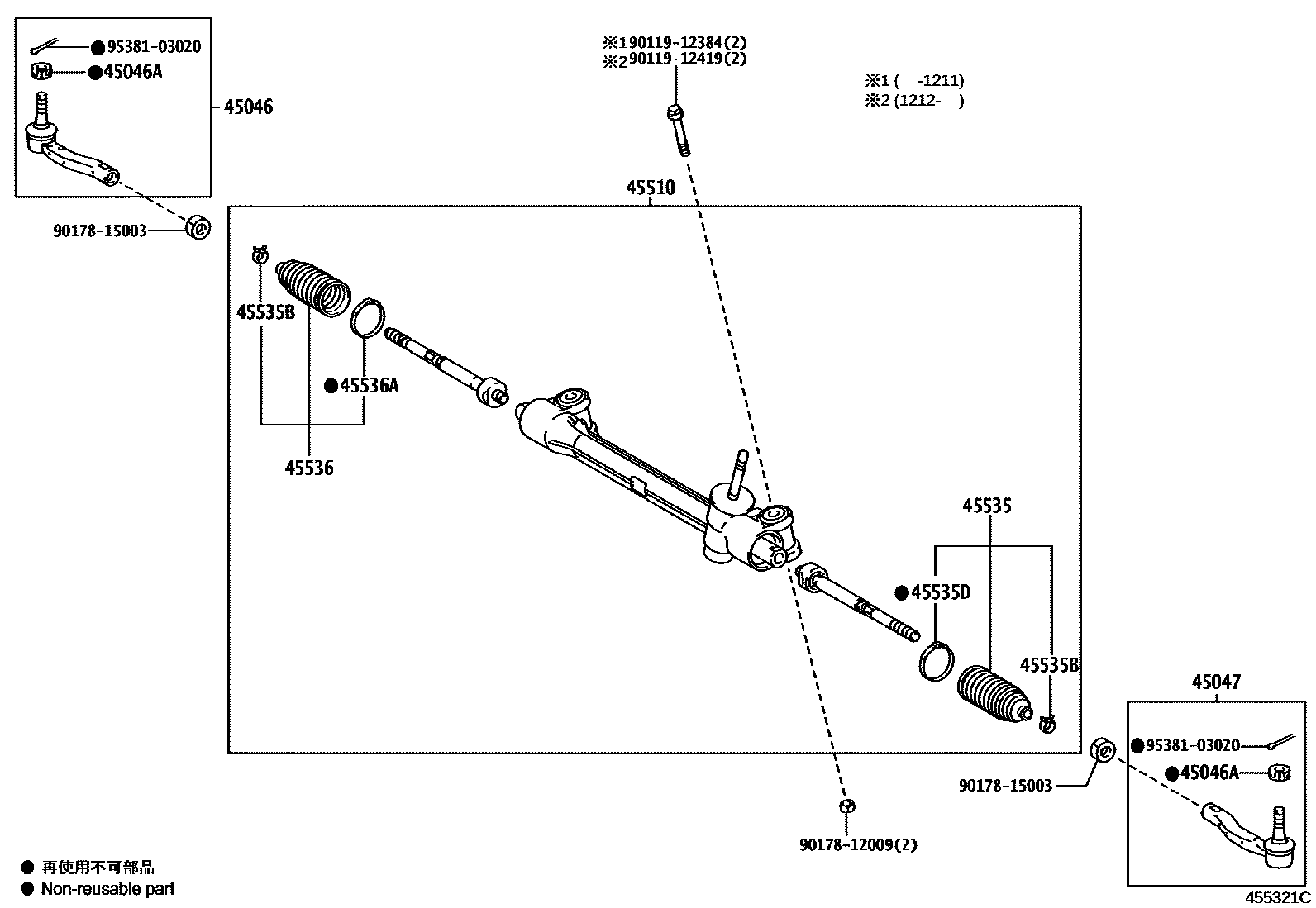

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-59115iZSP110200706-201407

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iZSP110200706-201407

45047END SUB-ASSY, TIE ROD, LH

main45046-59115iZSP110200706-201407

45510GEAR ASSY, STEERING

main45510-52190iZSP110201008-201212

main45510-52191iZSP110201301-201407

main45510-52210iZSP110200706-201008

45535BOOT, STEERING RACK, NO.1

main45535-59015iZSP110200706-201104

main45535-59035iZSP110201105-201407

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2iZSP110200706-201407

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-52010iZSP110200706-201407

45536BOOT, STEERING RACK, NO.2

main45535-59015iZSP110200706-201104

main45535-59035iZSP110201105-201407

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-52010iZSP110200706-201407

9011912384

main90119-12384

9011912419

main90119-12419

9017812009

main90178-12009

9017815003

main90178-15003

9538103020

main95381-03020

14 parts on this diagram · 1 diagram in section
