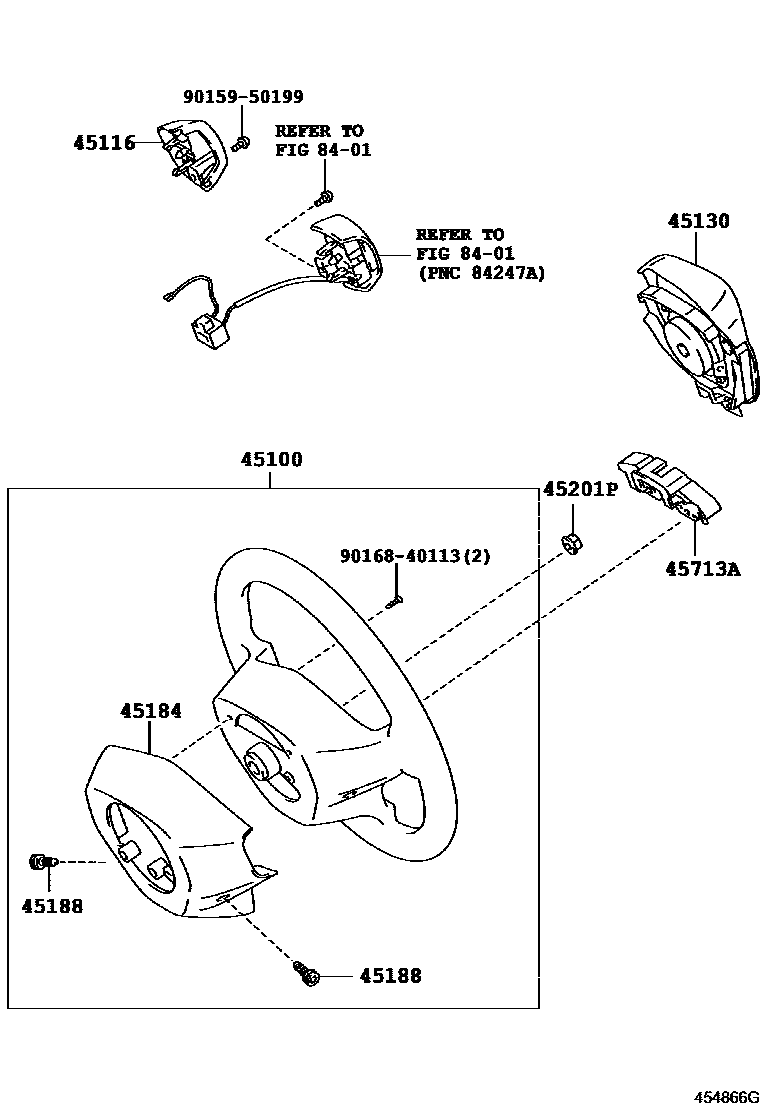

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-12E00-B0iZSP110200706-201407

3-SPOKE,URETHANE,DK.GRAY,TRIM1#

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52050iZSP110200706-201008

main45116-52100iZSP110201008-201407

main45116-52060iZSP110..USA200805-200806

SPECIAL EDITION,4R8

main45116-52130iZSP110..CND201108-201110

12MY SPECIAL EDITION FOR USA

45130BUTTON ASSY, HORN

main45130-12B90-B0iZSP110200706-201407

DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-12360-B0iZSP110200706-201407

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iZSP110200706-201407

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iZSP110200706-201407

45713ADAMPER, STEERING SHAKE

main45713-52040iZSP110..4FC200907-201407

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9016840113

main90168-40113

10 parts on this diagram · 1 diagram in section
