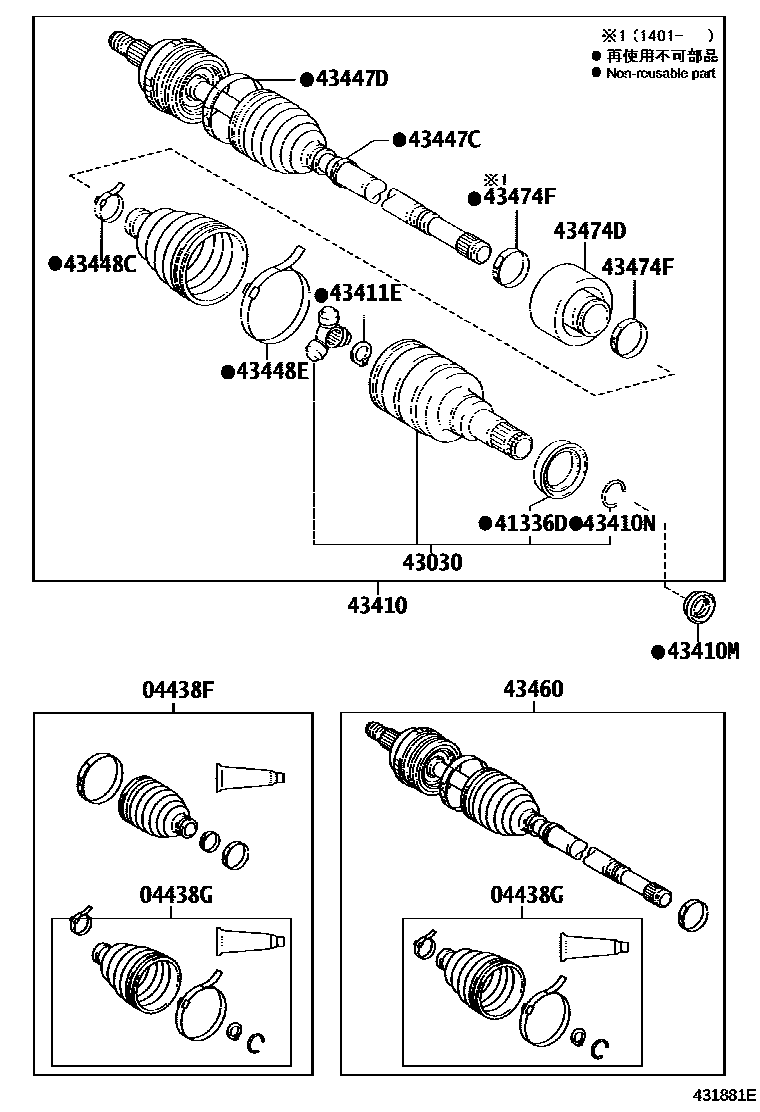

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-12540iZSP110200706-201003

main04428-12740iZSP110201003-201407

sub04428-12780

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-12310iZSP110200706-201003

main04438-12A00iZSP110201003-201407

sub04438-12A01

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12060iZSP110200706-201407

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-12120iZSP110200706-201407

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-52250iZSP110200706-201407

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35055iZSP110..4FC200706-201407

sub90311-35069

main90311-35057iZSP110..5F200706-201011

main90311-35065iZSP110..5F201011-201407

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-27005iZSP110200706-201407

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZSP110200706-201407

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZSP110200706-201407

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZSP110200706-201407

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZSP110200706-201407

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZSP110200706-201407

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59615iZSP110201003-201407

sub43460-59616

main43460-59655iZSP110200706-201002

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iZSP110200706-201407

sub43474-12210

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-14010×2iZSP110200706-201407

15 parts on this diagram · 2 diagrams in section
