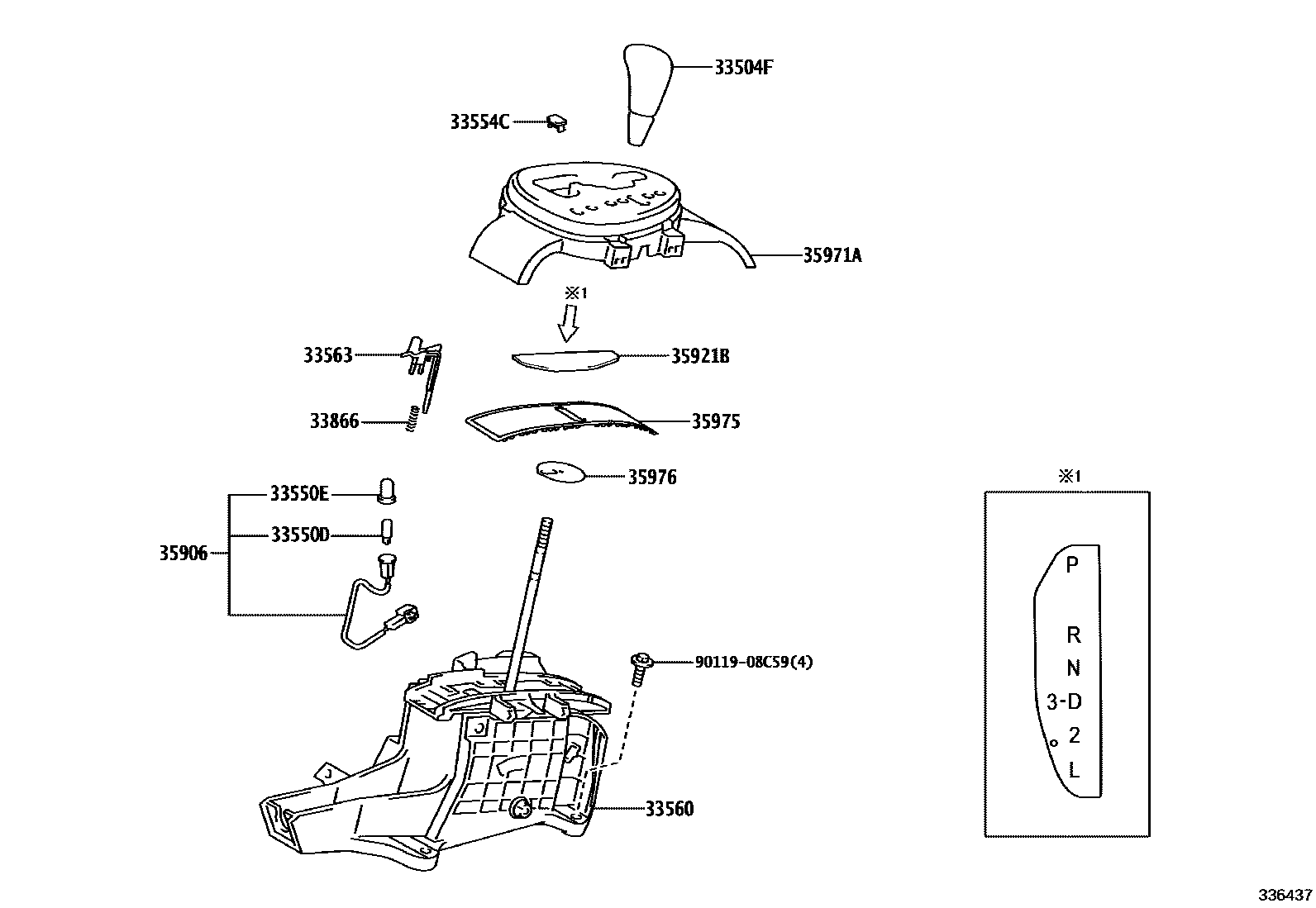

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12430-B0iZSP110..4FC200706-201407

DK.GRAY,TRIM1#

main33504-52100iZSP110..5F200706-201407

33550DBULB, POSITION INDICATOR LAMP

main35955-74010iZSP110..4FC200706-201407

12V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main35956-52010iZSP110..4FC200706-201407

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-52030iZSP110..4FC200706-201407

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-52220iZSP110..4FC200706-201407

33563BUTTON, SHIFT LOCK RELEASE

main33563-52100iZSP110..4FC200706-201407

33866SPRING, SHIFT LOCK RELEASE

main33866-52010iZSP110..4FC200706-201407

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-52090iZSP110..4FC200706-201407

35921BPLATE, CONTROL POSITION INDICATOR NO,2

main35921-52090iZSP110..4FC200706-201407

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-52230iZSP110..4FC200706-201407

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-52080iZSP110..4FC200706-201407

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-52080iZSP110..4FC200706-201407

9011908C59

main90119-08C59

13 parts on this diagram · 3 diagrams in section
