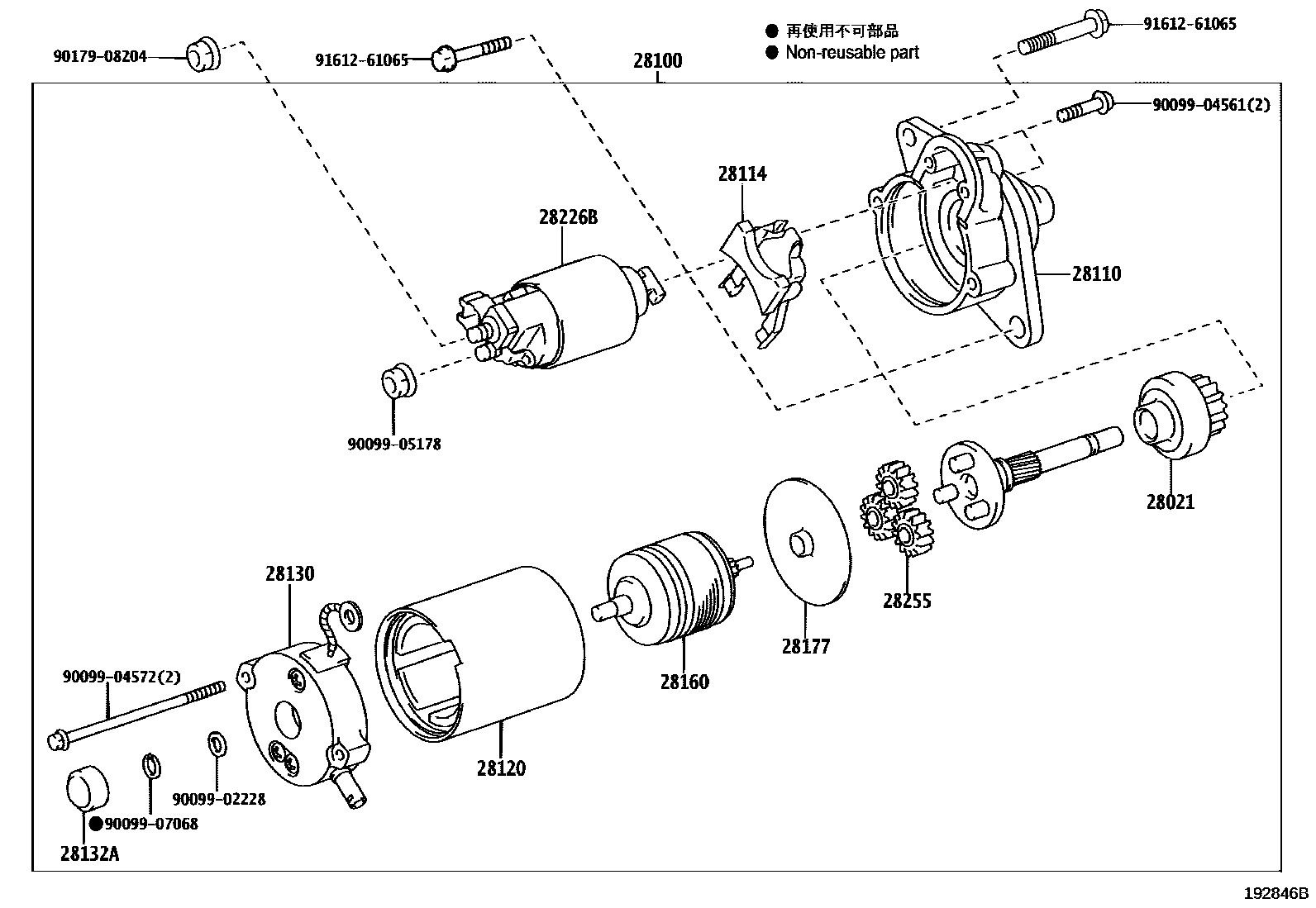

STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2ZRFE..ZSP110200706-201407

28100STARTER ASSY

main28100-37040i2ZRFE..ZSP110200706-200909

12V 1.6KW

main28100-37041i2ZRFE..ZSP110200910-201407

12V 1.6KW

28110HOUSING ASSY, STARTER DRIVE

main28110-37040i2ZRFE..ZSP110200706-201407

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2ZRFE..ZSP110200706-201407

28120YOKE ASSY, STARTER

main28120-28040i2ZRFE..ZSP110200706-200807

main28120-28060i2ZRFE..ZSP110200807-201407

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-37040i2ZRFE..ZSP110200706-201407

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2ZRFE..ZSP110200706-201407

28160ARMATURE ASSY, STARTER

main28160-21060i2ZRFE..ZSP110200706-201407

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ZRFE..ZSP110200706-201407

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2ZRFE..ZSP110200706-201407

28255GEAR, PLANET

main28255-28040×3i2ZRFE..ZSP110200706-201407

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9017908204

main90179-08204

9161261065

main91612-61065

18 parts on this diagram · 1 diagram in section
