ALTERNATOR

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

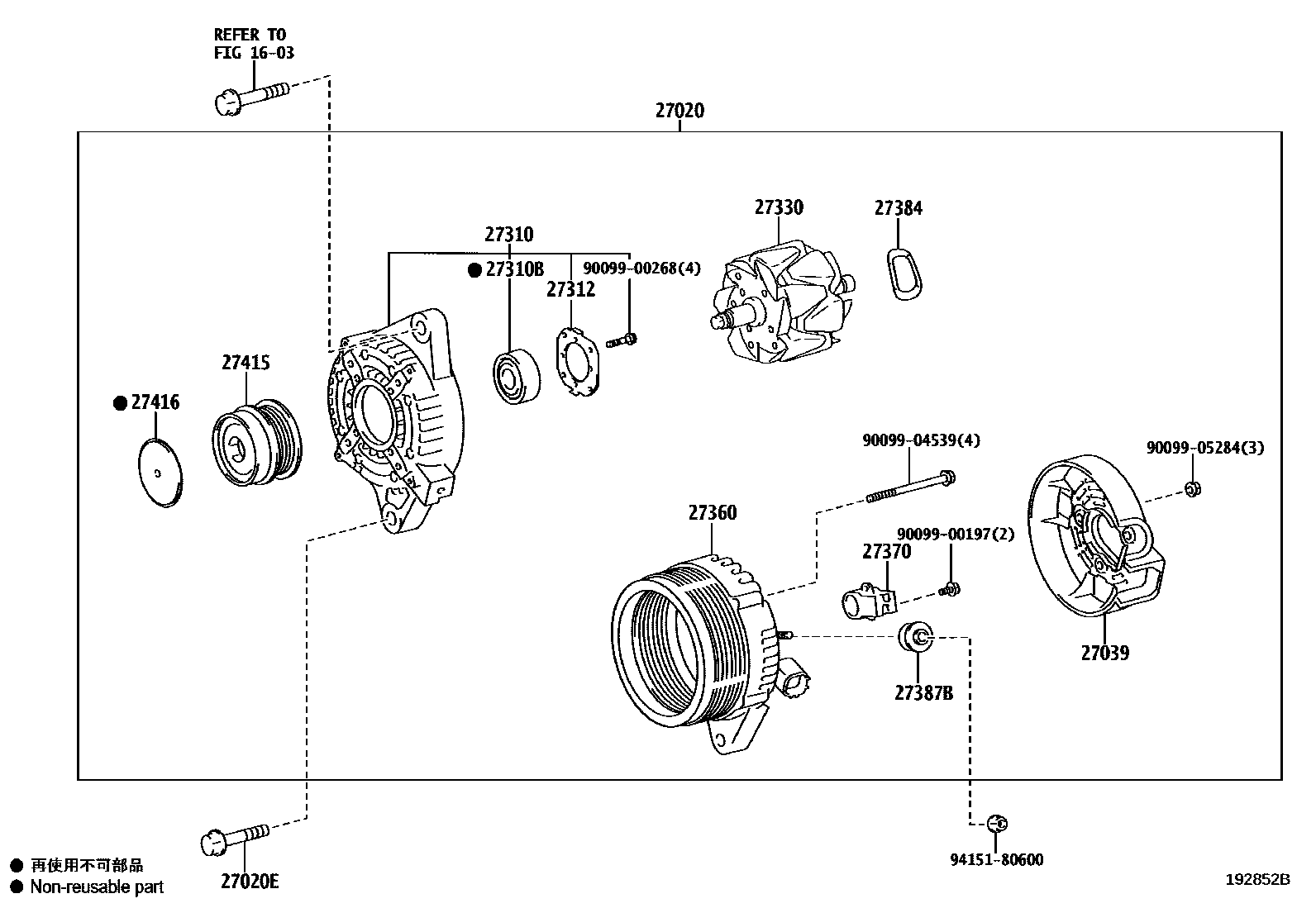

27020ALTERNATOR ASSY

main27060-37040i2ZRFE..ZSP110200706-200902

12V 100A

main27060-37041i2ZRFE..ZSP110200903-201407

12V 100A

27020EBOLT(FOR ALTERNATOR)

main90105-10307i2ZRFE..ZSP110200706-201407

27039COVER, ALTERNATOR REAR END

main27039-26170i2ZRFE..ZSP110200706-201009

main27039-31390i2ZRFE..ZSP110201009-201407

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-37030i2ZRFE..ZSP110200706-201407

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i2ZRFE..ZSP110200706-201407

27312PLATE, RETAINER

main27312-72100i2ZRFE..ZSP110200706-201407

27330ROTOR ASSY, ALTERNATOR

main27330-30070i2ZRFE..ZSP110200706-201407

27360COIL ASSY, ALTERNATOR

main27360-37050i2ZRFE..ZSP110200706-201407

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2ZRFE..ZSP110200706-201407

27384WASHER

main27384-50030i2ZRFE..ZSP110200706-201407

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i2ZRFE..ZSP110200706-201407

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0T010i2ZRFE..ZSP110200706-200902

main27415-0T011i2ZRFE..ZSP110200903-201308

main27415-0T060i2ZRFE..ZSP110201308-201407

27416CAP, ALTERNATOR PULLEY

main27416-0W020i2ZRFE..ZSP110200706-201308

main27416-0W050i2ZRFE..ZSP110201308-201407

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415180600

main94151-80600

19 parts on this diagram · 1 diagram in section
