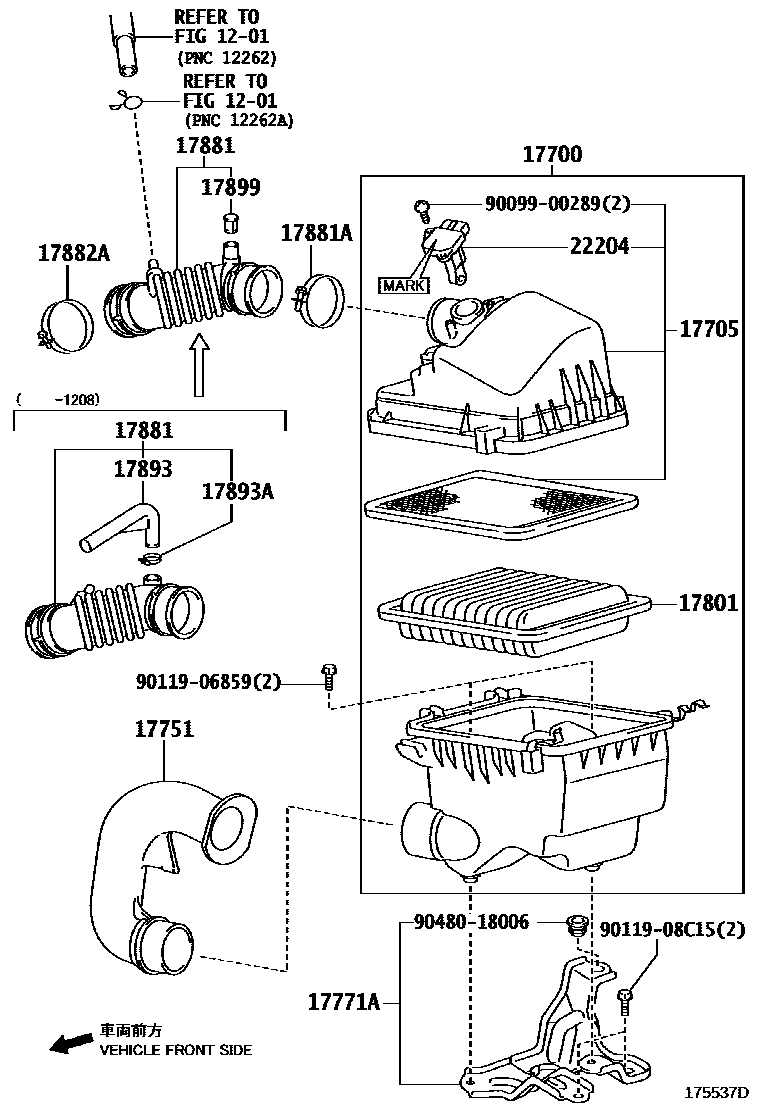

AIR CLEANER
1201VENTILATION HOSE
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17771ABRACKET, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
17893ACLAMP, HOSE
17899PLUG, RESONATOR HOSE
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0H010
MARK 22204-0P010
MARK 22204-0T010
MARK 22204-0T040
MARK 22204-0V010
MARK 22204-0V020
MARK 22204-28010
9009900289
main90099-00289
9011906859
main90119-06859
9011908C15
main90119-08C15
9048018006
main90480-18006
17 parts on this diagram · 1 diagram in section
