ENGINE OVERHAUL GASKET KIT

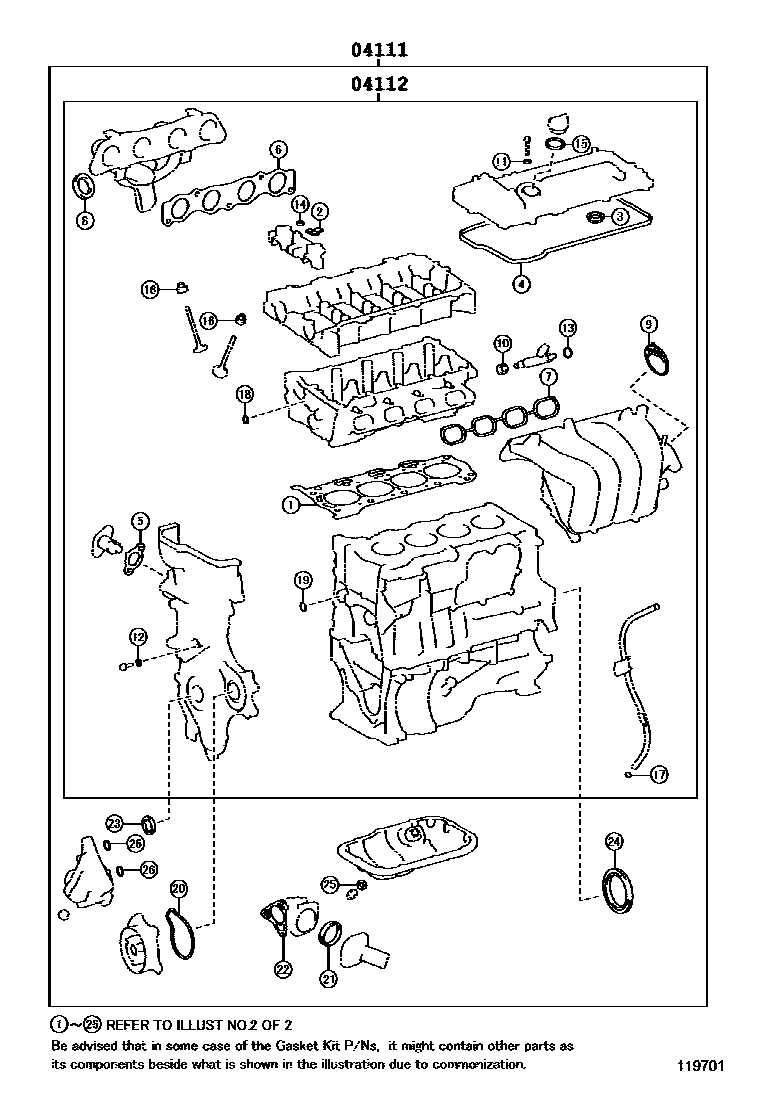

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-37110i200706-200806

main04111-37111i200806-200903

main04111-37112i200903-201110

main04111-37114i201110-201202

main04111-37115i201203-201407

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37090i200706-200806

main04112-37091i200806-200903

main04112-37092i200903-201110

main04112-37093i201110-201202

main04112-37094i201203-201407

2 parts on this diagram · 2 diagrams in section
