STANDARD TOOL

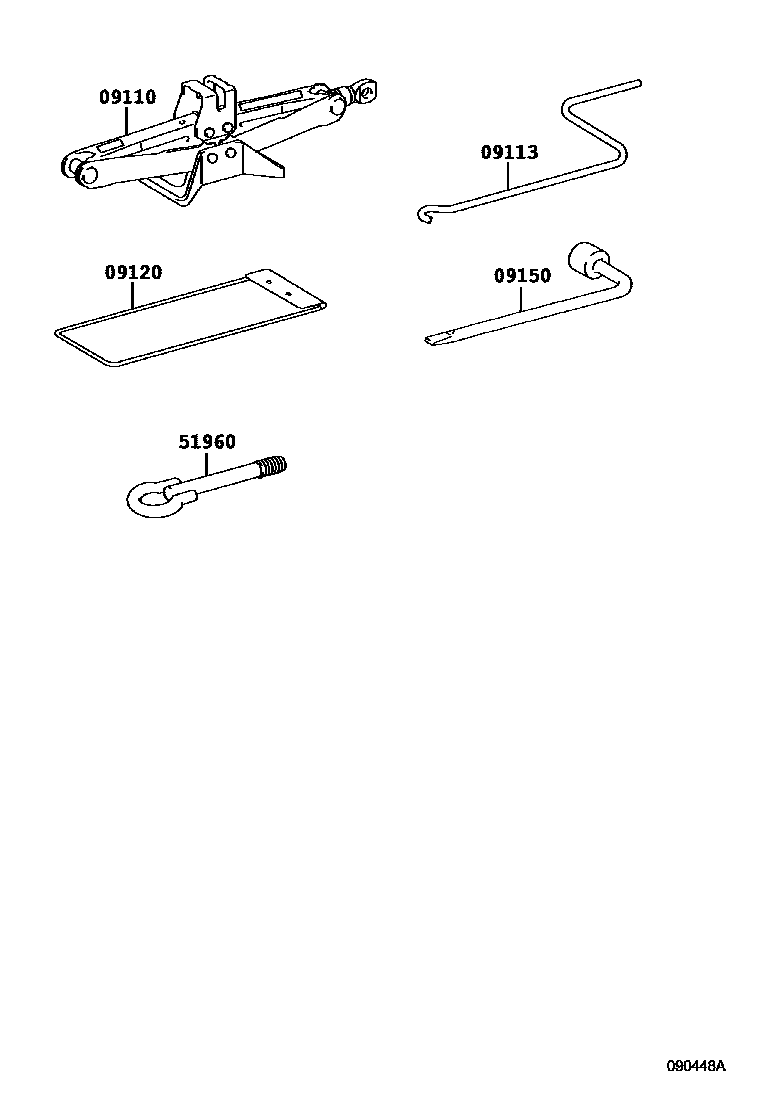

Parts diagram

09110JACK ASSY

main09111-12160i200706-200902

main09111-12210i200903-201009

main09111-12230i201010-201407

09113HANDLE, JACK

main09113-20050i201110-201407

main09113-52040i200706-201109

09120BAG, TOOL

main09120-37030i200706-201407

09150WRENCH, HUB NUT BOX

main09150-40010i200706-201407

51960HOOK ASSY, FRONT

main51960-47020i200706-201407

5 parts on this diagram · 1 diagram in section
