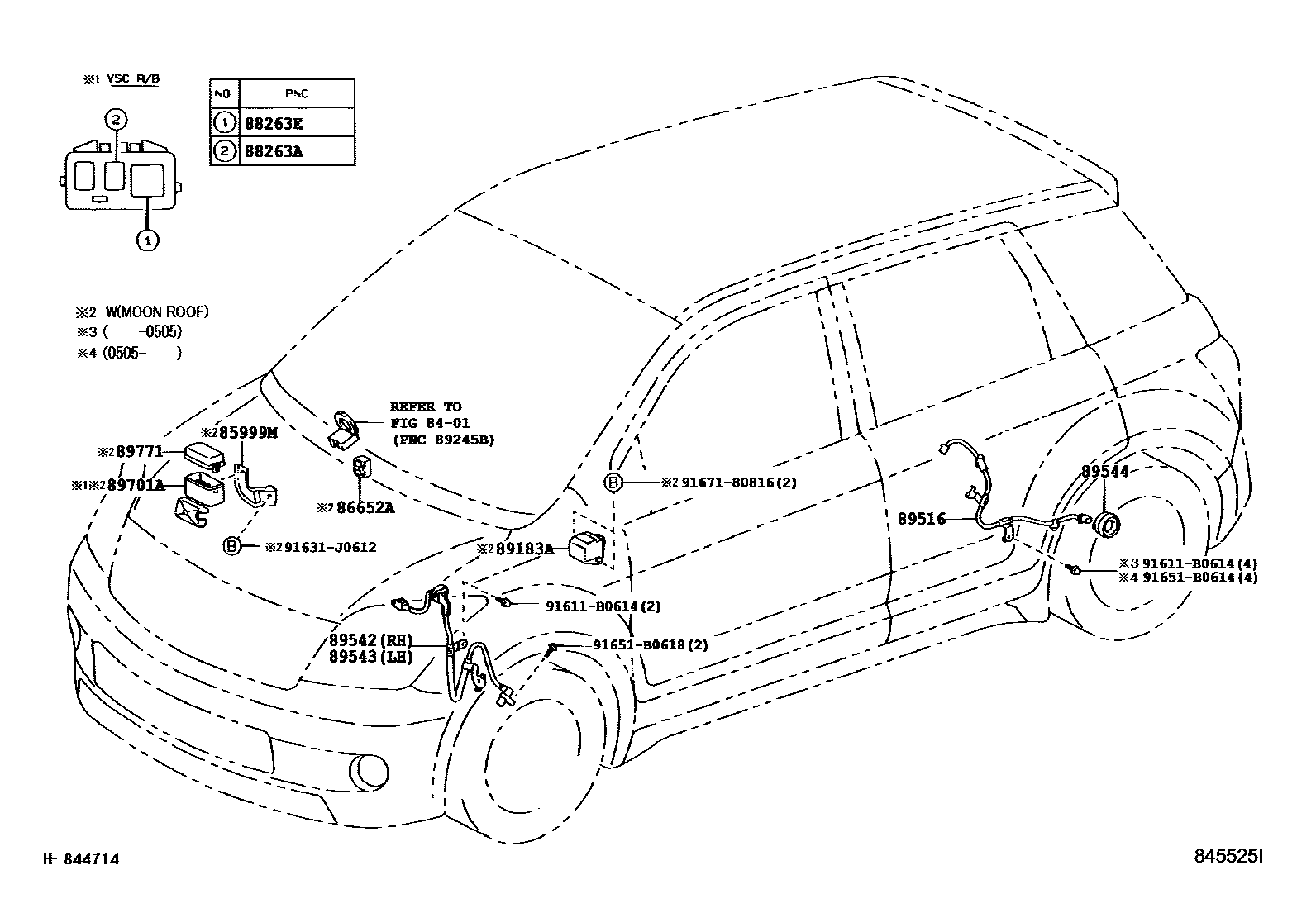

ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85999MBRACKET, RELAY

main85999-52020iNCP61200507

WITH(MOON ROOF)

86652ABUZZER ASSY, SKID CONTROL

main86652-48010iNCP61200405-200507

MOON ROOF

88263ARELAY, SKID CONTROL

main88263-32070iNCP61200605

VSC-WITH

88263ERELAY, SKID CONTROL NO.2

main88263-21010iNCP61200405-200507

MOON ROOF

89183ASENSOR, YAWRATE

main89183-48010iNCP61200405-200507

MOON ROOF

main89183-60020iNCP61200507-200605

WITH(MOON ROOF)

89516WIRE, SKID CONTROL SENSOR

main89516-52010iNCP61200304-200507

RH

main89516-52020iNCP61200304-200507

LH

89542SENSOR, SPEED, FRONT RH

main89542-52010iNCP61200507-200612

89543SENSOR, SPEED, FRONT LH

main89543-52010iNCP61200304-200507

89544SENSOR, SKID CONTROL

main89544-12010×2iNCP61200507-200612

main89544-52030×2iNCP61200304-200507

NSK,*369

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-21020iNCP61200405-200507

MOON ROOF

89771COVER, ABS RELAY BLOCK, UPPER

main89771-21020iNCP61200405-200507

MOON ROOF

91611B0614

main91611-B0614

91631J0612

main91631-J0612

91651B0614

main91651-B0614

91651B0618

main91651-B0618

9167180816

main91671-80816

17 parts on this diagram · 1 diagram in section
