WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1CLAMP & BRACKET 0007 1CONNECTOR

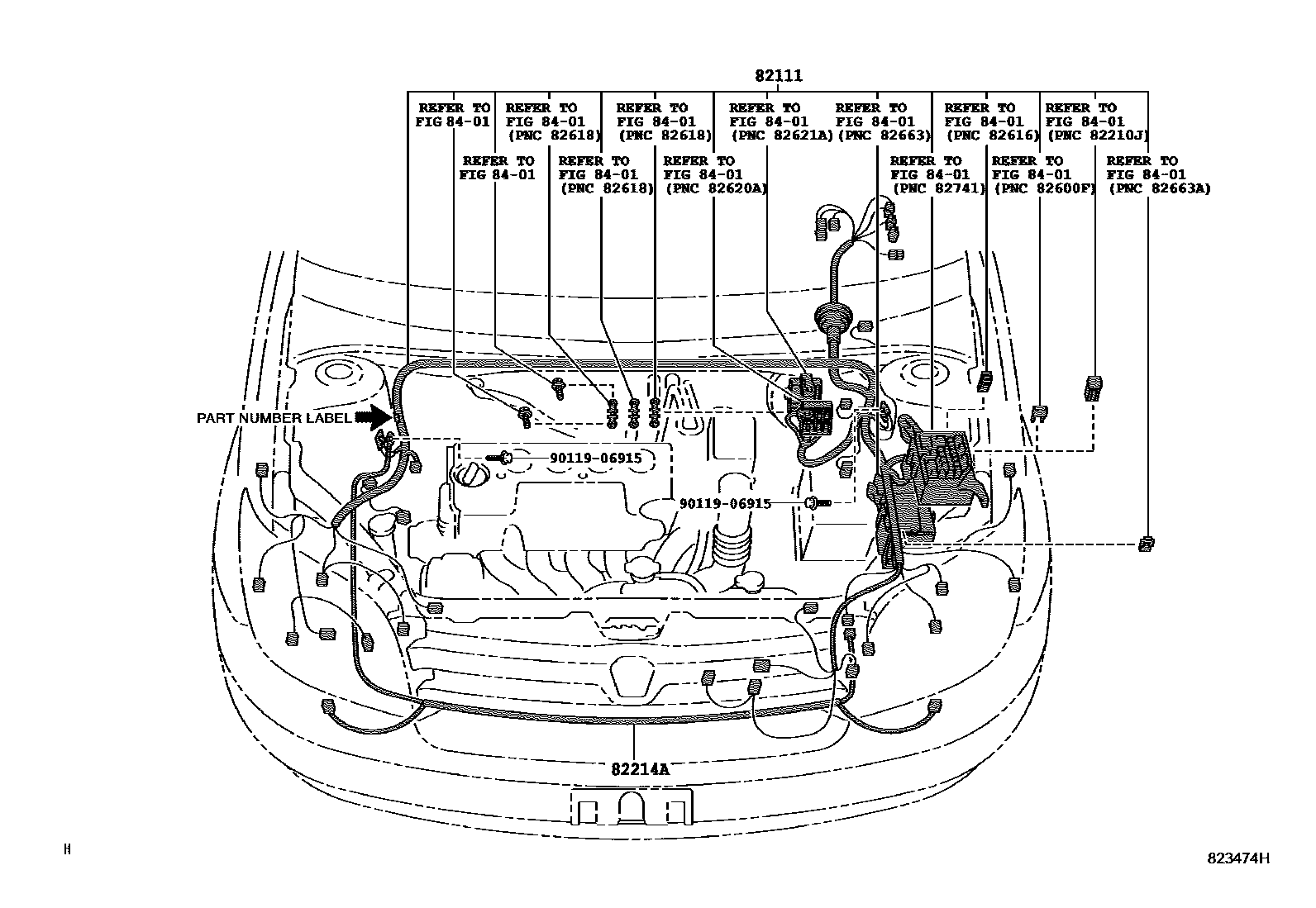

82111WIRE, ENGINE ROOM MAIN

main82111-52F30iNCP61200605-200608

VSC-WITH

main82111-52F31iNCP61200608

VSC-WITH

82214AWIRE, LAMP

main82214-52030iNCP61200304-200507

FRONT FOG LAMP-WITH

main82214-52060iNCP61200507-200612

FRONT FOG LAMP-WITH

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906915

main90119-06915

4 parts on this diagram · 7 diagrams in section
