BATTERY & BATTERY CABLE

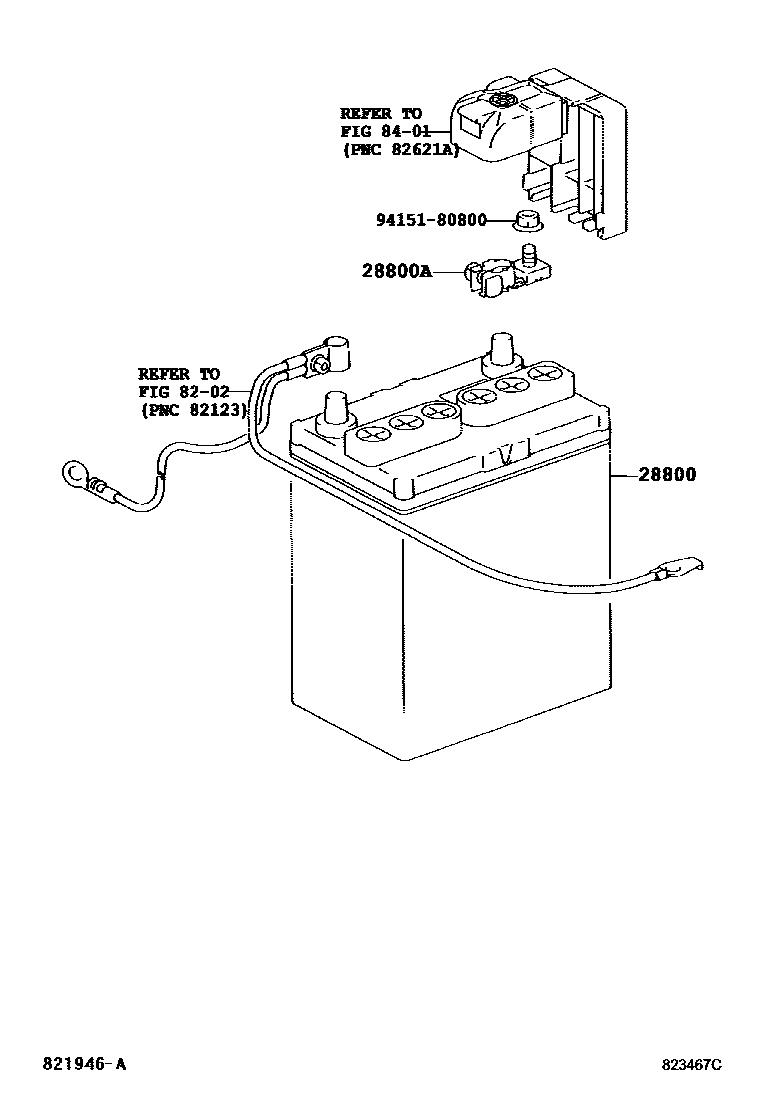

Parts diagram

28800BATTERY

main28800-11291i200304-200507

55D23R,PANASONIC

main28800-11331i200304-200507

55D23R,FURUKAWA

28800ATERMINAL, BATTERY POSITIVE

main90982-05053i200304-200507

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180800

main94151-80800

5 parts on this diagram · 1 diagram in section
