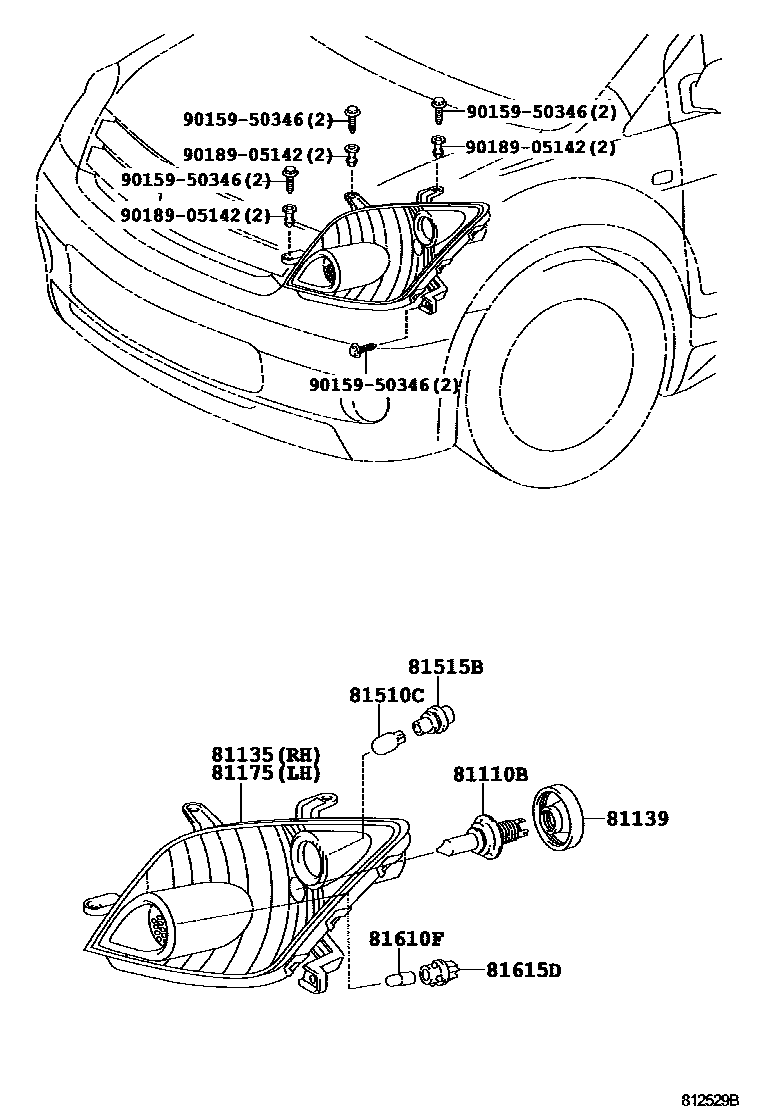

HEADLAMP

0001 1 0002 1

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iNCP61200304-200507

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81105-52450iNCP61200304-200507

main81130-52650iNCP61200507-200607

main81130-52651iNCP61200608

81139COVER, HEADLAMP SOCKET

main81139-52010×2iNCP61200304-200507

81175UNIT ASSY, HEADLAMP, LH

main81106-52450iNCP61200304-200507

main81170-52640iNCP61200507-200607

main81170-52641iNCP61200608

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2iNCP61200304-200507

12V 21W

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-52270×2iNCP61200507

main90075-99080×2iNCP61200304-200507

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP61200304-200507

12V 5W

81615DSOCKET, CLEARANCE LAMP

main81138-52570×2iNCP61200507

main81615-12590×2iNCP61200304-200507

9015950346

main90159-50346

9018905142

main90189-05142

10 parts on this diagram · 2 diagrams in section
