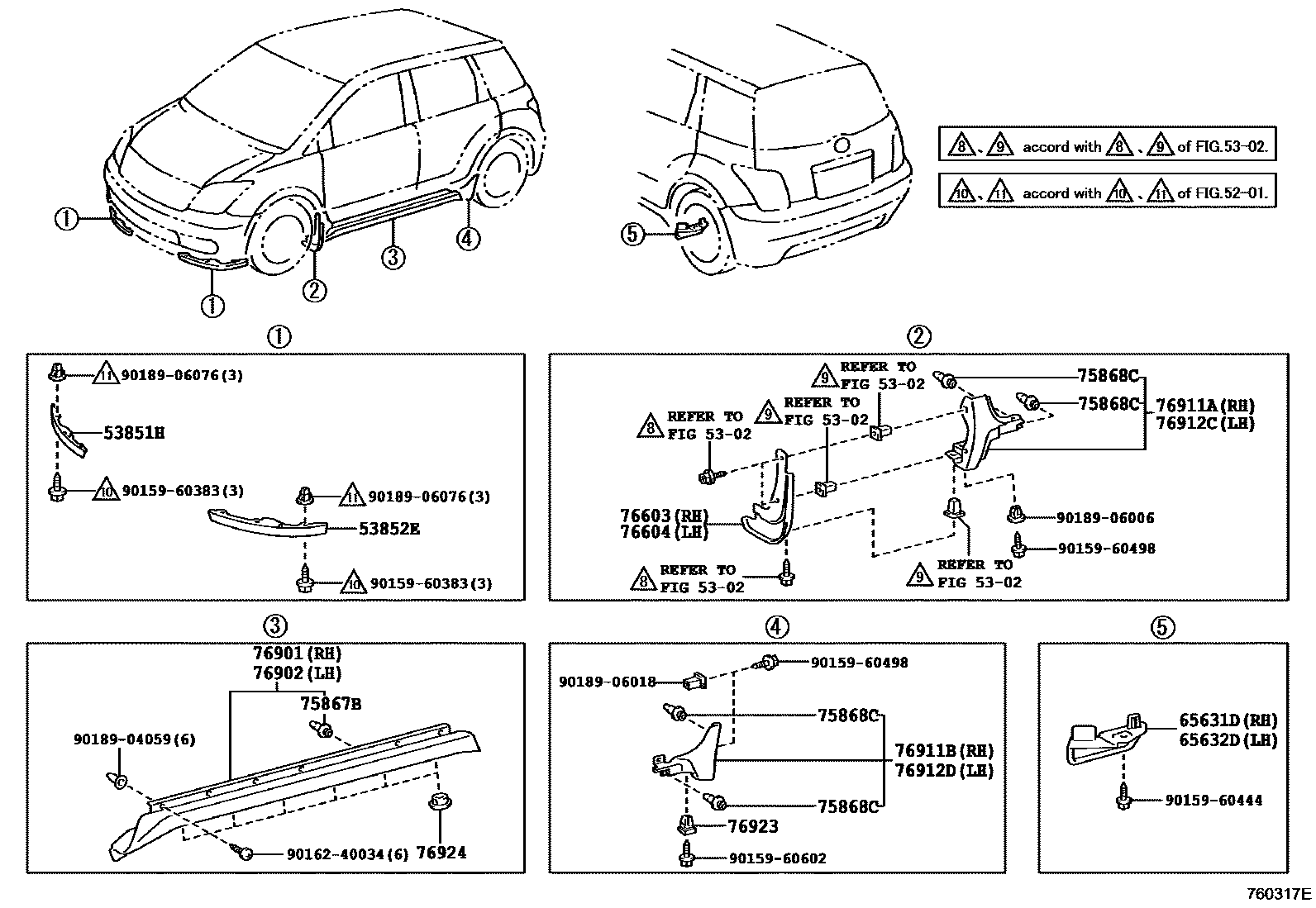

MUDGUARD & SPOILER
5302
53851HPAD, FRONT SPOILER, RH
53852EPAD, FRONT SPOILER, LH
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
75867BCLIP, ROCKER PANEL MOULDING
75868CCLIP, REAR SPOILER, NO.2
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
76901MUDGUARD SUB-ASSY, SIDE, RH
76902MUDGUARD SUB-ASSY, SIDE, LH
76911AMUDGUARD, FENDER PANEL, RH
WHITE,068
GRAY M. M,1E3
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX MC.,3P2
DK.BLUE M.M.,8P4
WHITE,068
DK.GRAY MC.,1E0
SILVER M.M.,1E7
BLACK MC.,209
DK. RED M.M.,3Q3
DK.BLUE M.M.,8P4
SPECIAL EDITION(USA),SUPER RED 5,3P0
SPECIAL EDITION(USA),BLUE MC.,8M6
SPECIAL EDITION(USA),BLUE ME.,8T4
76911BMUDGUARD, SIDE, RH
WHITE,068
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX MC.,3P2
DK.BLUE M.M.,8P4
SPECIAL EDITION(USA),BLUE MC.,8M6
SPECIAL EDITION(USA),SUPER RED 5,3P0
76912CMUDGUARD, FENDER PANEL, LH
WHITE,068
GRAY M. M,1E3
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX MC.,3P2
DK.BLUE M.M.,8P4
SPECIAL EDITION(USA),SUPER RED 5,3P0
SPECIAL EDITION(USA),BLUE MC.,8M6
76912DMUDGUARD, SIDE, LH
WHITE,068
GRAY M.M.,1E3
SILVER M.M.,1E7
BLACK MC.,209
BORDEAUX MC.,3P2
DK.BLUE M.M.,8P4
SPECIAL EDITION(USA),BLUE MC.,8M6
SPECIAL EDITION(USA),SUPER RED 5,3P0
76923RETAINER, SIDE MUDGUARD
76924RETAINER, SIDE MUDGUARD, NO.2
9015960383
main90159-60383
9015960444
main90159-60444
9015960498
main90159-60498
9015960602
main90159-60602
9016240034
main90162-40034
9018904059
main90189-04059
9018906006
main90189-06006
9018906018
main90189-06018
9018906076
main90189-06076
26 parts on this diagram · 3 diagrams in section
