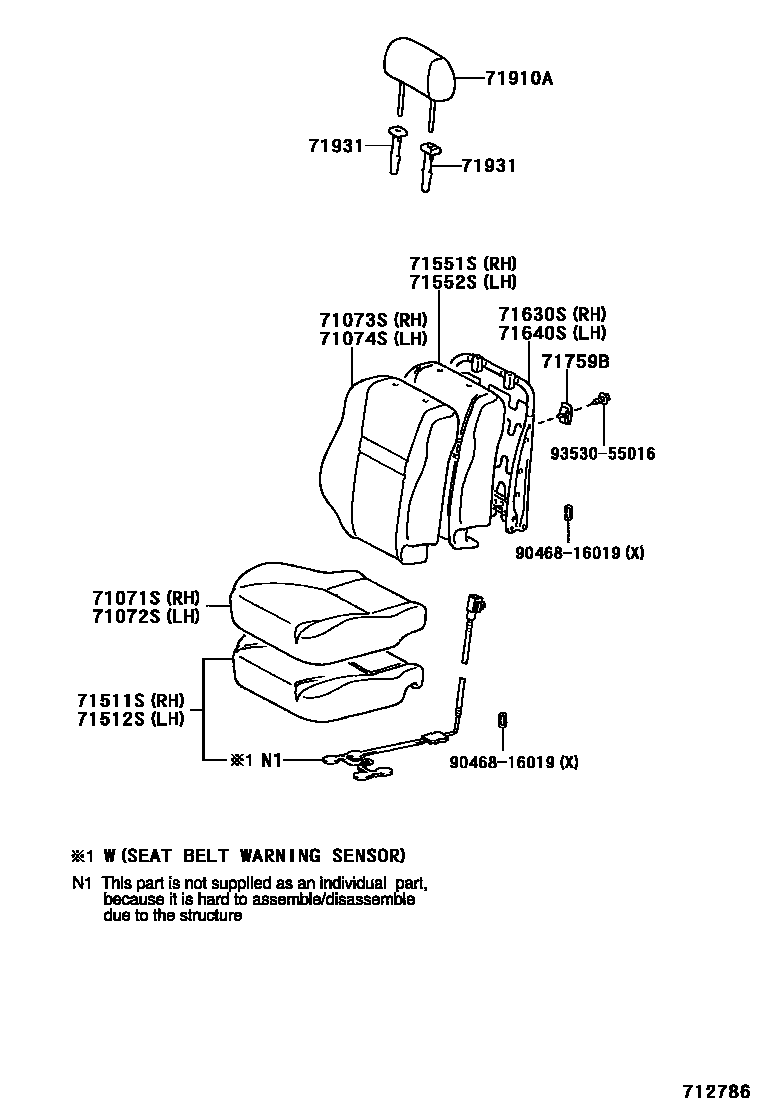

FRONT SEAT & SEAT TRACK

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-52A30-B0supersedes 71071-52A20-B0i200507-200608

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),DK.GREY,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GREY,TRIM1#

main71071-52C30-B1i200609-200611

SPECIAL EDITION(USA),DK.GRAY,TRIM13

main71071-52C31-B0supersedes 71071-52C30-B0i200608-200612

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM1#

main71071-52C31-B1i200609-200611

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM13

main71071-5C200-C1supersedes 71071-5C200-C0i200408-200409

SPECIAL EDITION(USA),BLACK/RED,TRIM1#

main71071-5C200-C2supersedes 71071-5C200-C0i200504-200505

SPECIAL EDITION(USA),BLACK/BLUE,TRIM1#

main71071-5C210-C0supersedes 71071-5C200-C0i200304-200507

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),BLACK,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,BLACK,TRIM1#

main71071-5C210-C1supersedes 71071-5C200-C0i200408-200409

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/RED,TRIM1#

main71071-5C210-C2supersedes 71071-5C200-C0i200504-200505

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/BLUE,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-52730-C2supersedes 71072-52730-C1i200408-200409

SPECIAL EDITION(USA),BLACK/RED,TRIM1#

main71072-52730-C3supersedes 71072-52730-C1i200504-200505

SPECIAL EDITION(USA),BLACK/BLUE,TRIM1#

main71072-52A30-B0supersedes 71072-52B30-B0i200507-200608

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),DK.GREY,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GREY,TRIM1#

main71072-52C50-B1i200609-200611

SPECIAL EDITION(USA),DK.GRAY,TRIM13

main71072-52C51-B0supersedes 71072-52C50-B0i200608-200612

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM1#

main71072-52C51-B1i200609-200611

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM13

main71072-5C300-C0supersedes 71072-52730-C1i200304-200507

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),BLACK,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,BLACK,TRIM1#

main71072-5C300-C1supersedes 71072-52730-C1i200408-200409

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/RED,TRIM1#

main71072-5C300-C2supersedes 71072-52730-C1i200504-200505

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/BLUE,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-52550-C3supersedes 71073-52550-C2i200408-200409

SPECIAL EDITION(USA),BLACK/RED,TRIM1#

main71073-52550-C4supersedes 71073-52550-C2i200504-200505

SPECIAL EDITION(USA),BLACK/BLUE,TRIM1#

main71073-52650-C0supersedes 71073-52550-C2i200304-200507

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),BLACK,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,BLACK,TRIM1#

main71073-52650-C1supersedes 71073-52550-C2i200408-200409

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/RED,TRIM1#

main71073-52650-C2supersedes 71073-52550-C2i200504-200505

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/BLUE,TRIM1#

main71073-52B70-B0supersedes 71073-52B60-B0i200507-200608

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),DK.GREY,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GREY,TRIM1#

main71073-52E40-B0supersedes 71073-52E50-B0i200608-200612

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM1#

main71073-52E40-B1i200609-200611

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM13

main71073-52E50-B1i200609-200611

SPECIAL EDITION(USA),DK.GRAY,TRIM13

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-52430-C1supersedes 71074-52430-C0i200408-200409

SPECIAL EDITION(USA),BLACK/RED,TRIM1#

main71074-52430-C2supersedes 71074-52430-C0i200504-200505

SPECIAL EDITION(USA),BLACK/BLUE,TRIM1#

main71074-52440-C0supersedes 71074-52430-C0i200304-200507

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),BLACK,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,BLACK,TRIM1#

main71074-52440-C1supersedes 71074-52430-C0i200408-200409

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/RED,TRIM1#

main71074-52440-C2supersedes 71074-52430-C0i200504-200505

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER & PASSENGER & SIDE,BLACK/BLUE,TRIM1#

main71074-52760-B0supersedes 71074-52750-B0i200507-200608

SRS AIR BAG-DRIVER,PASSENGER &SIDE &CURTAIN(CUT OFF),DK.GREY,TRIM1#; SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GREY,TRIM1#

main71074-52A60-B0supersedes 71074-52A70-B0i200608-200612

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM1#

main71074-52A60-B1i200609-200611

SPECIAL EDITION(USA)&SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN,DK.GRAY,TRIM13

main71074-52A70-B1i200609-200611

SPECIAL EDITION(USA),DK.GRAY,TRIM13

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71502-52020i200304-200507

main71511-52450i200608

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71511-63020i200304-200507

main71512-52320i200608

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-13160i200507-200608

main71551-52540supersedes 71551-52470i200608

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-13160i200507-200608

main71552-52450supersedes 71551-52470i200608

SRS AIR BAG-DRIVER,PASSENGER(ADVANCED)&SIDE &CURTAIN

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-52190i200304-200507

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-52030i200409-200507

main71640-52040i200304-200408

71759BHOOK, FRONT SEATBACK

main71759-13020-B0×2i200304-200507

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52240-C0×2i200304-200507

BLACK,TRIM1#

main71910-52540-B0×2i200507-200612

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47010-B2×2i200304-200507

W(LOCK),DK.GRAY,TRIM1#

main71931-47010-B2×2i200304-200507

W/O(LOCK),DK.GRAY,TRIM1#

9046816019

main90468-16019

9353055016

main93530-55016

15 parts on this diagram · 7 diagrams in section
