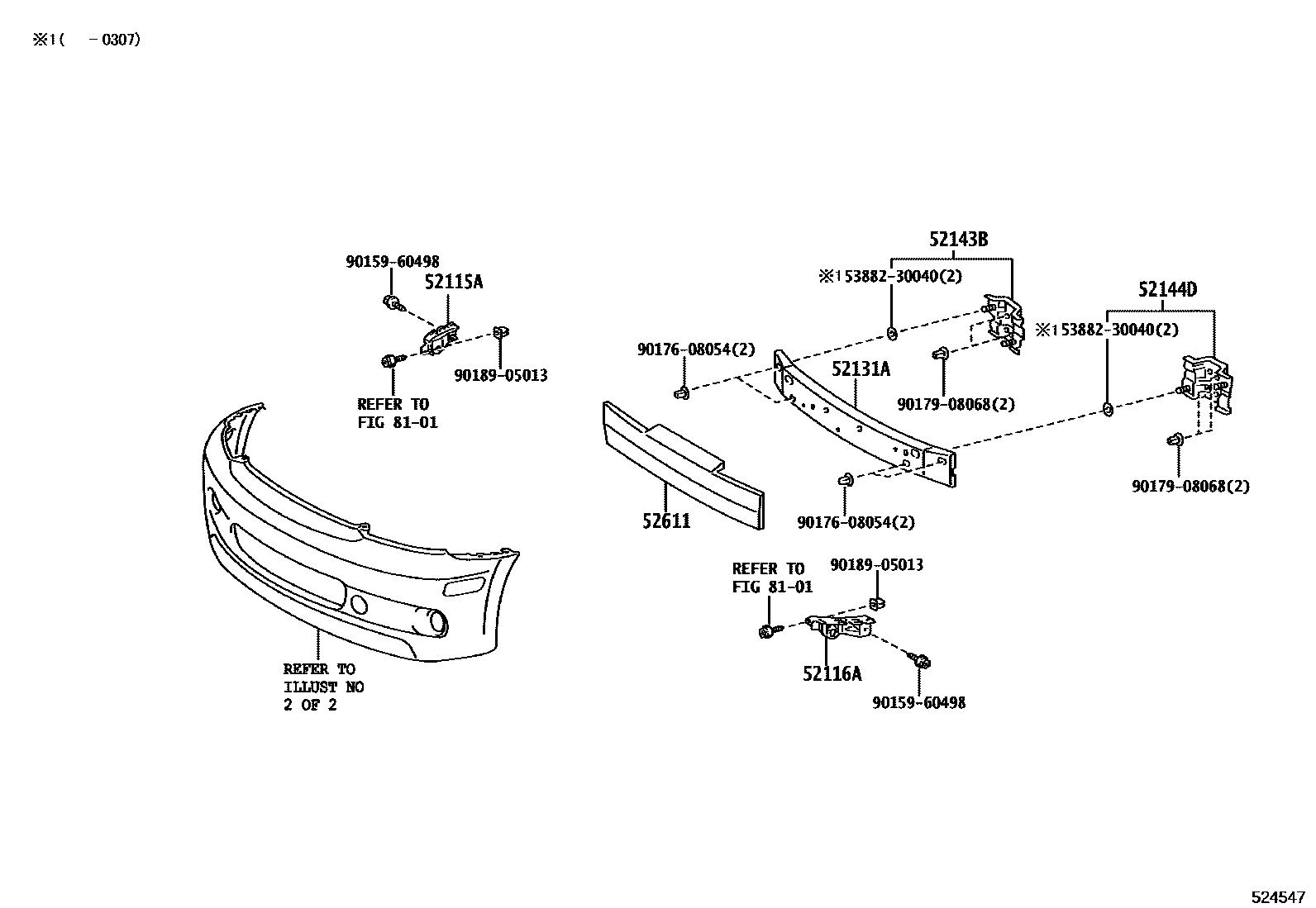

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-52030iNCP61200304-200507

main52115-52071iNCP61200507-200612

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-52030iNCP61200304-200507

main52116-52061iNCP61200507

52131AREINFORCEMENT, FRONT BUMPER

main52021-52020iNCP61200304-200507

52143BBRACKET, FRONT BUMPER SIDE

main52143-52130iNCP61200304-200507

52144DBRACKET, FRONT BUMPER SIDE, LH

main52144-52120iNCP61200304-200507

52611ABSORBER, FRONT BUMPER ENERGY

main52611-52050iNCP61200304-200507

main52611-52080iNCP61200507

8101HEADLAMP

→ Go to FIG 81-01

5388230040PACKING, FRONT FENDER MAIN

main53882-30040

9015960498

main90159-60498

9017608054

main90176-08054

9017908068

main90179-08068

9018905013

main90189-05013

12 parts on this diagram · 4 diagrams in section
