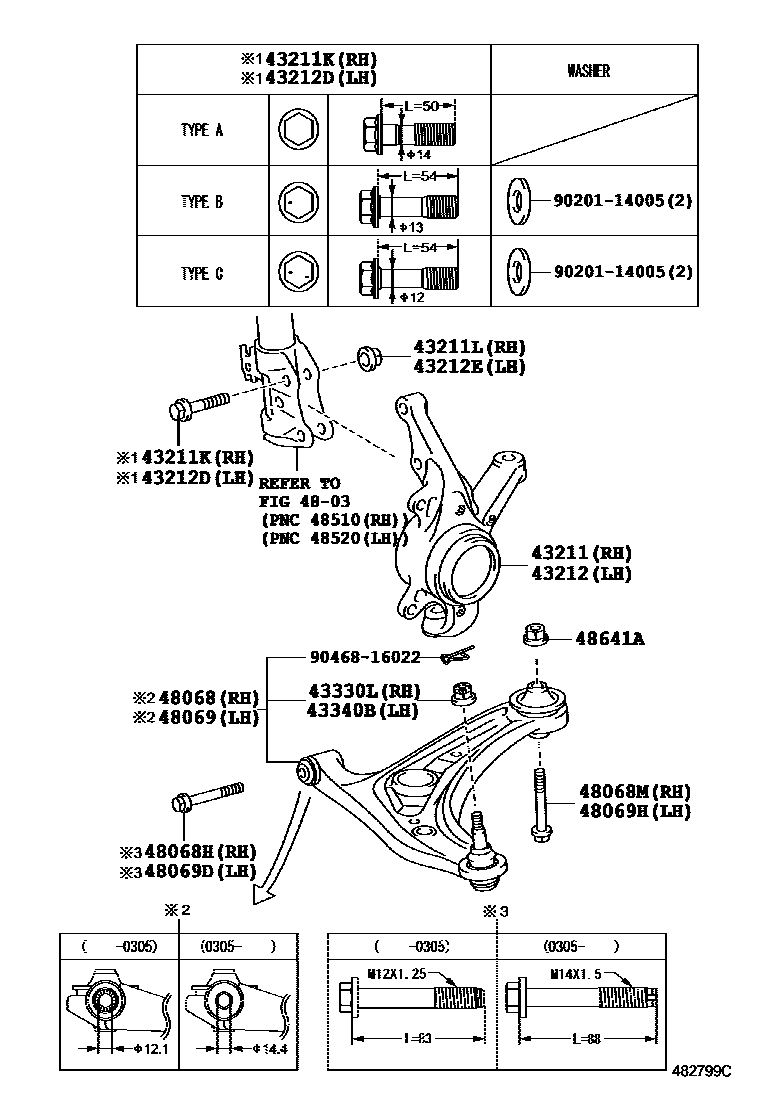

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-52020iNCP61200304-200612

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-14140iNCP61200507

OD=14

main90105-14140iNCP61200304-200507

OD=14,TYPE A:REFER ILLUST.

main90105-14146iNCP61200304-200507

OD=13,TYPE B:REFER ILLUST.

main90105-14146iNCP61200507

OD=13

main90105-14147iNCP61200304-200507

OD=12,TYPE C:REFER ILLUST.

main90105-14147iNCP61200507

OD=12

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-14062iNCP61200304-200507

43212KNUCKLE, STEERING, LH

main43212-52020iNCP61200304-200507

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-14140iNCP61200304-200507

OD=14,TYPE A:REFER ILLUST.

main90105-14140iNCP61200507

OD=14

main90105-14146iNCP61200507

OD=13

main90105-14146iNCP61200304-200507

OD=13,TYPE B:REFER ILLUST.

main90105-14147iNCP61200304-200507

OD=12,TYPE C:REFER ILLUST.

main90105-14147iNCP61200507

OD=12

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-14062iNCP61200304-200507

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-12007iNCP61200304-200507

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-12007iNCP61200304-200507

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-19176iNCP61200304-200305

main48068-59065iNCP61200305-200507

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-12338iNCP61200304-200305

main90119-14086iNCP61200305-200507

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90119-12337iNCP61200304-200507

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-19156iNCP61200304-200305

main48069-59065iNCP61200305-200507

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-12338iNCP61200304-200305

main90119-14086iNCP61200305-200507

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90119-12337iNCP61200304-200507

48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)

main90178-12009iNCP61200304-200507

9020114005

main90201-14005

9046816022

main90468-16022

18 parts on this diagram · 1 diagram in section
