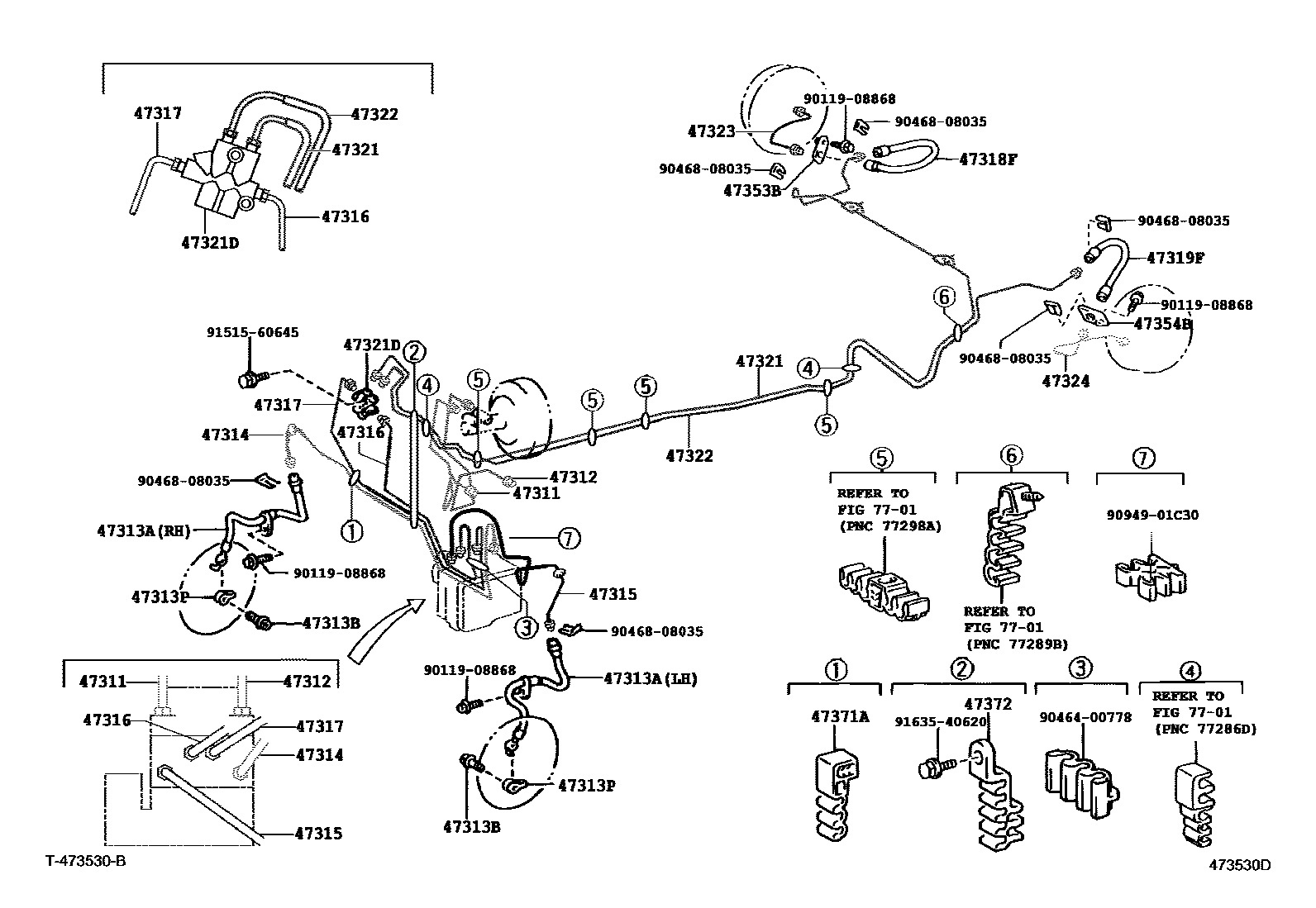

Toyota 671440 — BRAKE TUBE & CLAMP
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47323TUBE, REAR BRAKE, NO.3
47324TUBE, REAR BRAKE, NO.4
47353BBRACKET, FLEXIBLE HOSE, NO.3
47354BBRACKET, FLEXIBLE HOSE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
7701FUEL TANK & TUBE
9011908868
9046400778
9046808035
9094901C30
9151560645
9163540620
27 parts on this diagram · 4 diagrams in section
BRAKE TUBE & CLAMP for Toyota 671440
This section contains 34 genuine Toyota parts for the BRAKE TUBE & CLAMP system of the Toyota 671440. Key components include: ACTUATOR ASSY, BRAKE, HOLDER, BRAKE ACTUATOR BOLT, CUSHION, BRAKE ACTUATOR BOLT, BRACKET ASSY, BRAKE ACTUATOR, TUBE, FRONT BRAKE, NO.1.
