ALTERNATOR

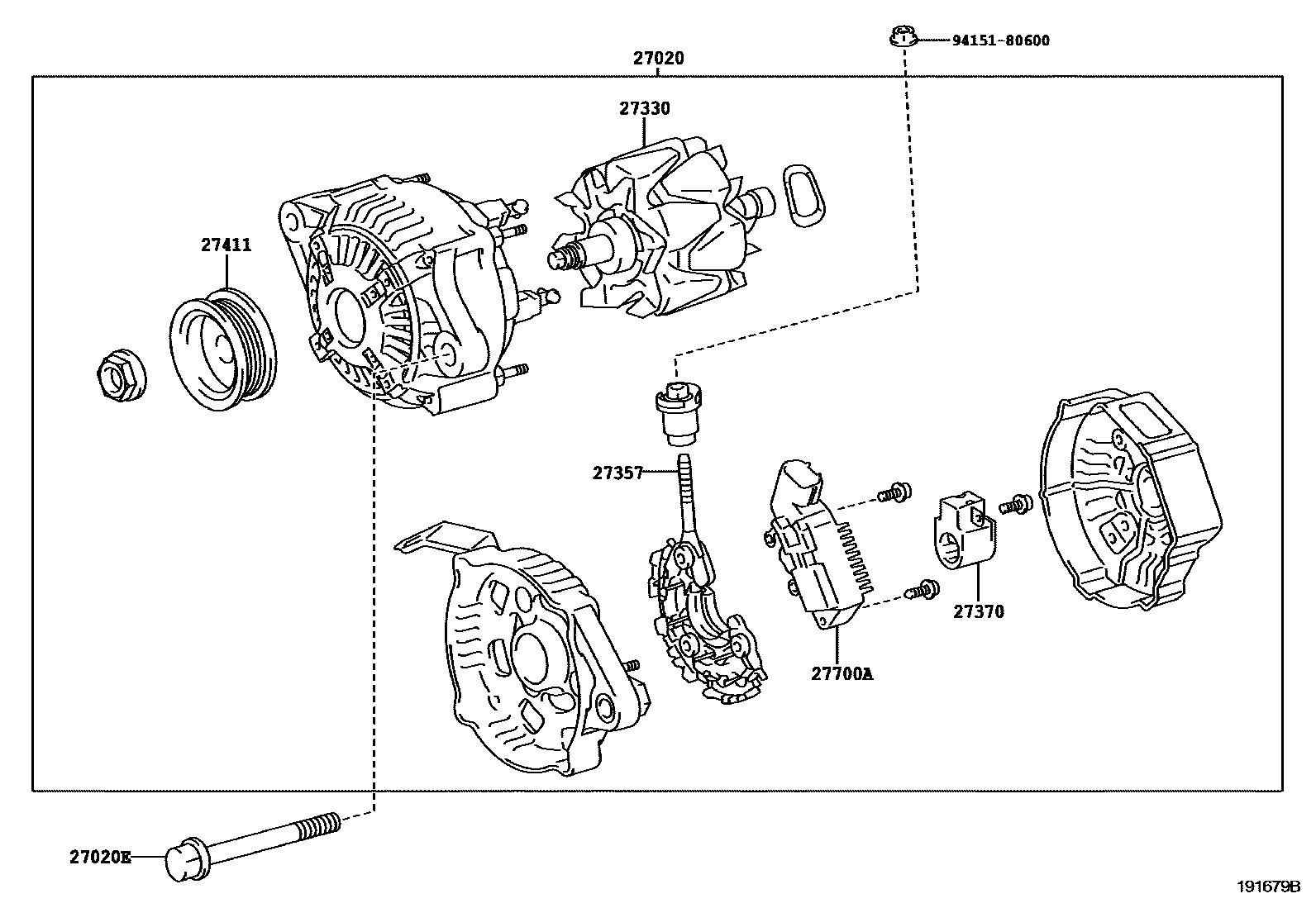

Parts diagram

27020ALTERNATOR ASSY

main27060-21030i200304-200305

12V 80A

main27060-21031i200305-200308

12V 80A

main27060-21140i200308-200507

12V 80A

27020EBOLT(FOR ALTERNATOR)

main90105-10075i200304-200507

27330ROTOR ASSY, ALTERNATOR

main27330-16390i200304-200507

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i200304-200507

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-75060i200304-200507

27411PULLEY, ALTERNATOR

main27411-21030i200304-200507

27700AREGULATOR ASSY, GENERATOR

main27700-21010i200304-200507

9415180600

main94151-80600

8 parts on this diagram · 1 diagram in section
