HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
main87050-0D020supersedes 87050-0D090iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD200811-201107
FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87050-0D010iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD; KSP90,NSP90..FRP..LHD..SOL200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87050-0D030supersedes 87050-0D010iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD; KSP90..FRP..LHD..TRSTD200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-MANUAL
COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87050-0D051iKSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER; COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO
main87050-0D080supersedes 87050-0D020iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200811
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main87050-0D180iKSP90..FRP..LHD..SOL; KSP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD; NSP90..FRP..LHD..SOL; NSP90..FRP..LHD..TRSTD200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87050-0D190iKSP90..FRP..LHD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD; NSP90..FRP..LHD200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO
87103BMOTOR SUB-ASSY, BLOWER W/FAN
main87103-0D110supersedes 87103-52131iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD200811-201107
FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87103-52152supersedes 87103-0D100iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD; KSP90,NSP90..FRP..LHD..TRSTD; NSP90..FRP..LHD..TRSTD201101-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-AUTO; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
main87103-52150iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..SOL; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200511-200810
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-AUTO
main87103-52151iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..SOL; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200810-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-AUTO
87107AUNIT SUB-ASSY, HEATER RADIATOR
87121LBRACKET, HEATER
main87121-0D010iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; KSP90,SCP90..FRP..LHD..SOL; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
87130DBLOWER ASSY
main87130-0D081supersedes 87130-0D021iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD200811-201107
FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main87130-0D010supersedes 87130-0D071iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200809
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-MANUAL
main87130-0D020supersedes 87130-0D081iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200809
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-MANUAL
main87130-0D030iKSP90,NLP90..FRP..LHD..TRSTD; KSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200511-200809
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER; COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL
main87130-0D031iKSP90,NLP90..FRP..LHD..TRSTD; KSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200810-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER; COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W; COLD SPEC, WITH(REAR HEATER DUCT); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)
FRONT AIR CONDITIONER-AUTO
FRONT AIR CONDITIONER-AUTO
main87130-0D070supersedes 87130-0D011iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL200511-200809
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main87130-0D071supersedes 87130-0D011iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL200810-200811
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main87130-0D080supersedes 87130-0D021iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200809
FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main87130-0D090iKSP90,NLP90..FRP..LHD..TRSTD; KSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200511-200809
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main87130-0D091iKSP90,NLP90,NSP90..FRP..LHD..TRSTD; KSP90,NSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL; NSP90..FRP..LHD..SOL; NSP90..FRP..LHD..TRSTD200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-WITHOUT(UNIT(W/H ONLY)); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
87138CRESISTOR, BLOWER
main87138-0K090iKSP90,NLP90,NSP90..FRP..SOL; KSP90,NLP90,NSP90..FRP..TRSTD; KSP90,NSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL; NSP90..FRP..LHD..SOL200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-WITHOUT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & AIR INLET&FRONT AIRCONDITIONER-WITHOUT(UNIT(W/H ONLY)); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT; RUSSIA SPEC&COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
87139CFILTER, CLEAN AIR
CLEAN AIR FILTER-W/O
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87174GGUIDE, AIR HEATER
main87174-0D010iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; KSP90,SCP90..FRP..LHD..SOL; KSP90..FRP..LHD..SOL; NLP90..FRP..LHD..SOL200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT HEATER-POWER HEATER & NORMAL&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
88539JHOSE, DRAIN COOLER
88548BCASE, AIR FILTER
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
FRONT AIR CONDITIONER-AUTO
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-AUTO
main88650-0D170iKSP90,NLP90,SCP90..FRP; KSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD; KSP90,SCP90..FRP..LHD..SOL200511-200811
COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-MANUAL; FRONT AIR CONDITIONER-W/O; FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY)
main88650-0D180iKSP90,SCP90..FRP..LHD; KSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D180; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D180; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; FRONT HEATER-AIR INLET MODE & PTC HEATER; FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D180
main88650-0D190iKSP90,SCP90..FRP..LHD..SOL; KSP90,SCP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT),MARK 88650-0D190; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D190; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY),MARK 88650-0D190; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-W/O,MARK 88650-0D190; COLD SPEC, WITH(REAR HEATER DUCT),MARK 88650-0D190; FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D190; FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O UNIT (W/H ONLY),MARK 88650-0D190; FRONT HEATER-AIR INLET MODE & PTC HEATER&FRONT AIR CONDITIONER-W/O,MARK 88650-0D190
FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-MANUAL
main88650-0D260iKSP90,NSP90..FRP..LHD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD; NSP90..FRP..LHD200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D260; COLD SPEC, WITH OUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D260; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL; FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D260; FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-MANUAL
ENGINE-WITHOUT(STOP & START SYSTEM)&FRONT AIR CONDITIONER-DEALER KIT; ENGINE-WITHOUT(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITHOUT; ENGINE-WITHOUT(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); FRONT AIR CONDITIONER-DEALER KIT; FRONT AIR CONDITIONER-WITHOUT; FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
COLD SPEC, WITH(REAR HEATER DUCT); FRONT HEATER-AIR INLET & PTC600W
main88650-0D290iKSP90,NSP90..FRP..LHD..SOL; KSP90,NSP90..FRP..LHD..TRSTD; NLP90..FRP..LHD..SOL; NLP90..FRP..LHD..TRSTD200811-201107
COLD SPEC, WITH OUT(REAR HEATER DUCT),MARK 88650-0D290; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D290; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),MARK 88650-0D290; COLD SPEC, WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT,MARK 88650-0D290; COLD SPEC, WITH(REAR HEATER DUCT),MARK 88650-0D290; FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-DEALER KIT,MARK 88650-0D290; FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),MARK 88650-0D290; FRONT HEATER-AIR INLET & PTC600W&FRONT AIR CONDITIONER-WITHOUT,MARK 88650-0D290
871240D050CLAMP, HEATER
main87124-0D050
90119W0068
main90119-W0068
9015960383
main90159-60383
9015970003
main90159-70003
90182W0016
main90182-W0016

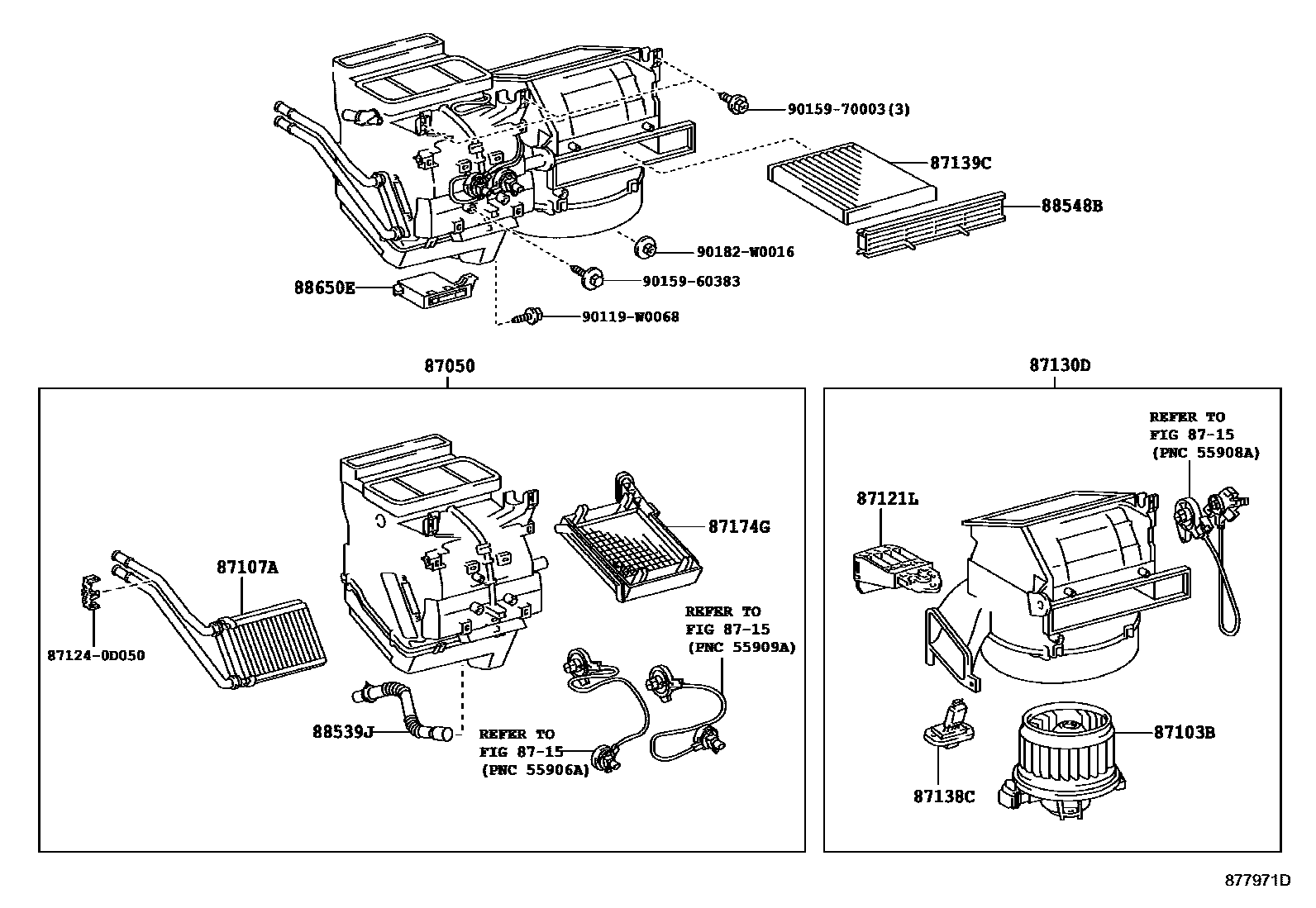

17 parts on this diagram · 9 diagrams in section
