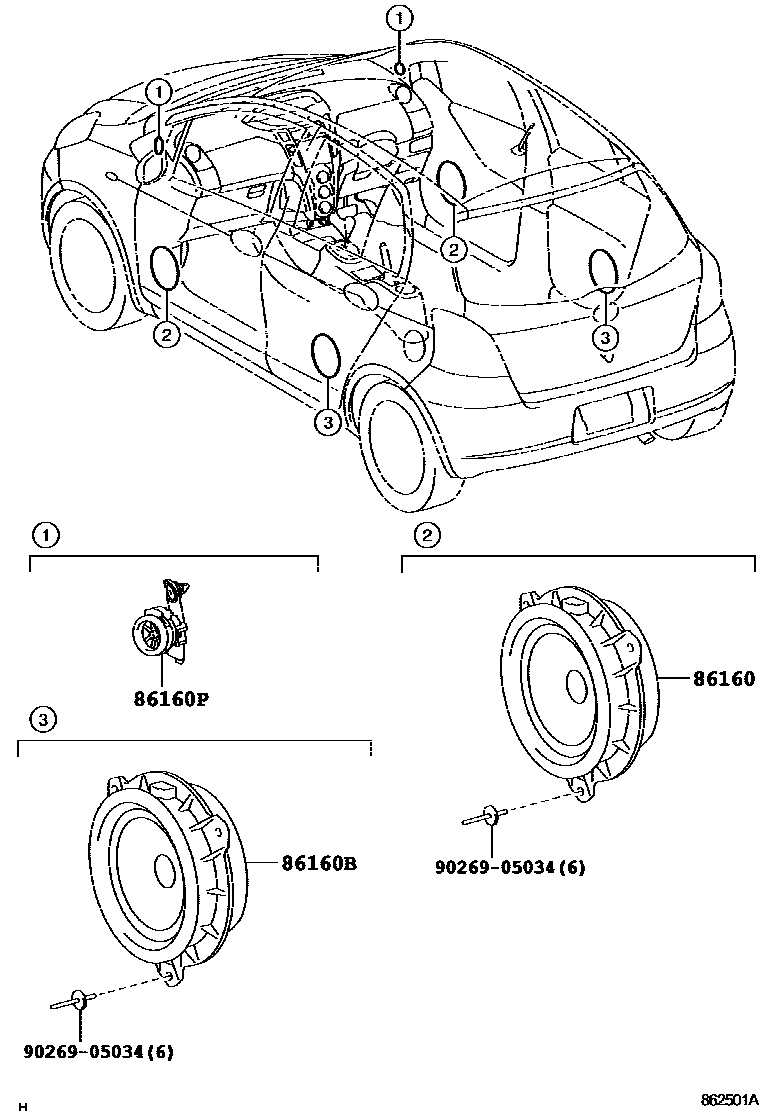

SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0D180×2iKSP90,NLP90,SCP90..FRP200511-200811

86160BSPEAKER ASSY, REAR

main86160-0D190×2iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200811

AUDIO-LMU CD DSP 6SP EXT 2DIN

86160PSPEAKER ASSY, FRONT NO.2

main86160-0D200iKSP90,NLP90,SCP90..FRP200511-200811

RH

main86160-0D210iKSP90,NLP90,SCP90..FRP200511-200811

LH

9026905034

main90269-05034

4 parts on this diagram · 1 diagram in section
