OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

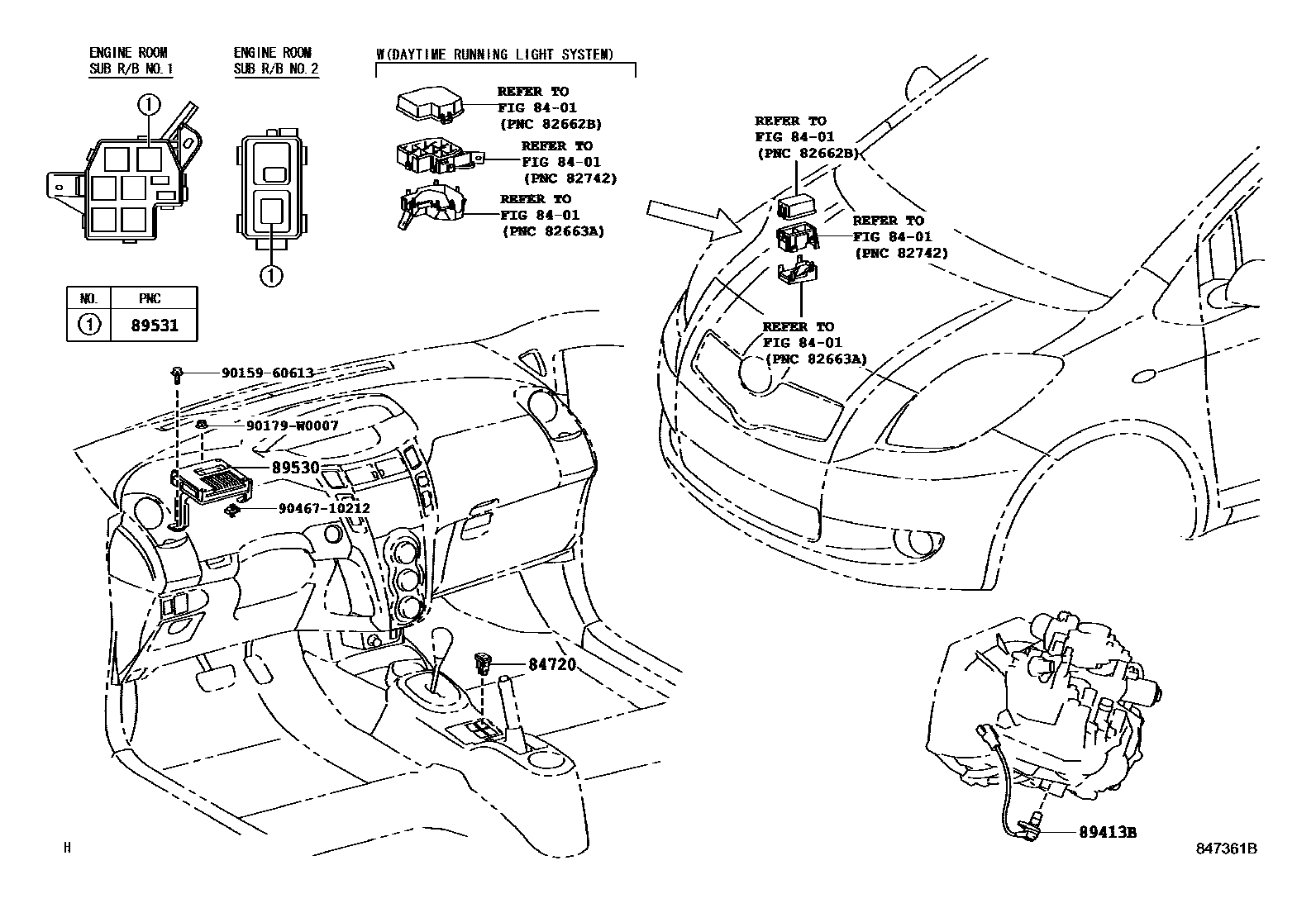

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

84720SWITCH ASSY, PATTERN SELECT

main84720-0D010iKSP90,NLP90,SCP90..FRP..5FS200511-200811

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-22010iNLP90,NSP90..FRP..6FS200902-201107

main89413-64010iNLP90..FRP..5FS200511-200811

main89413-70010iKSP90,SCP90..FRP..5FS200511-200811

89530COMPUTER ASSY, TRANSMISSION CONTROL

main89530-52120iKSP90..FRP..LHD..5FS200511-200601

main89530-52121iKSP90..FRP..LHD..5FS200602-200811

main89530-52130iKSP90..FRP..RHD..5FS200511-200601

main89530-52131iKSP90..FRP..RHD..5FS200602-200811

main89530-52140iSCP90..FRP..LHD..5FS200511-200811

main89530-52150iSCP90..FRP..RHD..5FS200511-200811

main89530-52160iNLP90..FRP..LHD..5FS200511-200811

main89530-52170iNLP90..FRP..RHD..5FS200511-200811

89531RELAY, TRANSMISSION CONTROL

main90080-87030iKSP90,NLP90,SCP90..FRP..5FS200511-200811

9015960613

main90159-60613

90179W0007

main90179-W0007

9046710212

main90467-10212

8 parts on this diagram · 6 diagrams in section
