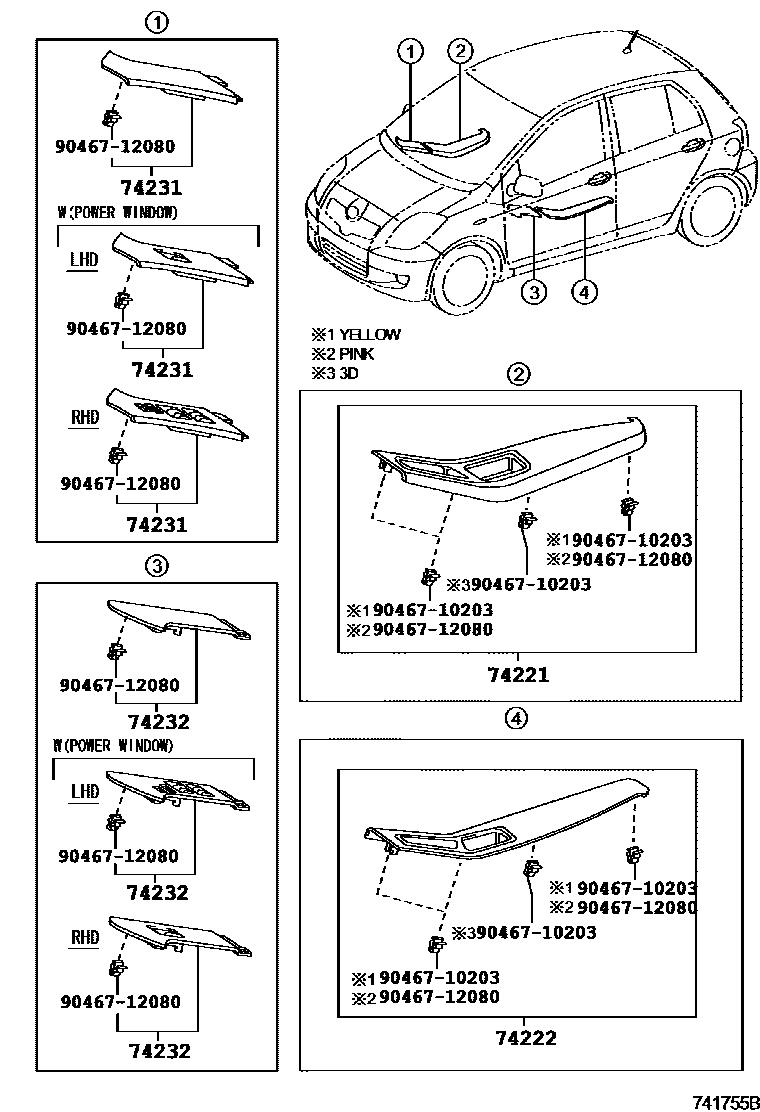

ARMREST & VISOR
74221COVER, DOOR ARMREST, RH
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
74222COVER, DOOR ARMREST, LH
GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
GREGE,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-0D080-B0iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200811
GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),GRAY,TRIM1#
GREGE,TRIM4#
main74231-0D090-B0iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200811
GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
S PACKAGE&POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO),GRAY,TRIM1#
POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO),GREGE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-0D090-B0iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200811
GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),GRAY,TRIM1#
GREGE,TRIM4#
main74232-0D110-B0iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200811
GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),GRAY,TRIM1#
GREGE,TRIM4#
GRAY,TRIM1#
S PACKAGE&POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO),GRAY,TRIM1#
POWER WINDOW-WITH FRONT & REAR (DRIVER AUTO),GREGE,TRIM4#
9046710203
main90467-10203
9046712080
main90467-12080
6 parts on this diagram · 2 diagrams in section
