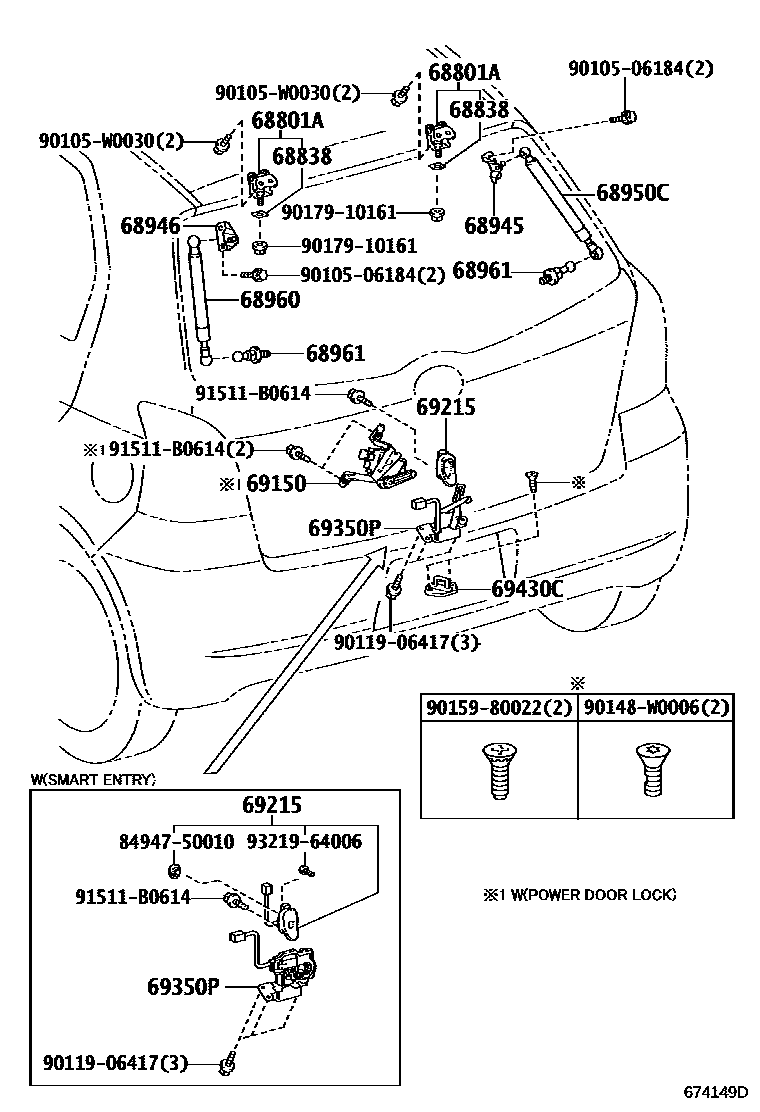

BACK DOOR LOCK & HANDLE
68801AHINGE SUB-ASSY, BACK DOOR, UPPER
(L)
(J)
68838PAD, BACK DOOR HINGE, NO.1
T=1.0,(L)
T=0.5
T=1.1,(J)
T=0.5,(J)
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
(J)
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
(L)
(J)
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
68961BOLT, BACK DOOR STAY
69150ACTUATOR ASSY, BACK DOOR LOCK
69215HANDLE, BACK DOOR OUTSIDE
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START)
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START)
69430CSTRIKER ASSY, BACK DOOR LOCK
8494750010COVER, DOOR ELECTRICAL KEY SWITCH
main84947-50010
9010506184
main90105-06184
90105W0030
main90105-W0030
9011906417
main90119-06417
90148W0006
main90148-W0006
9015980022
main90159-80022
9017910161
main90179-10161
91511B0614
main91511-B0614
9321964006
main93219-64006
20 parts on this diagram · 1 diagram in section
