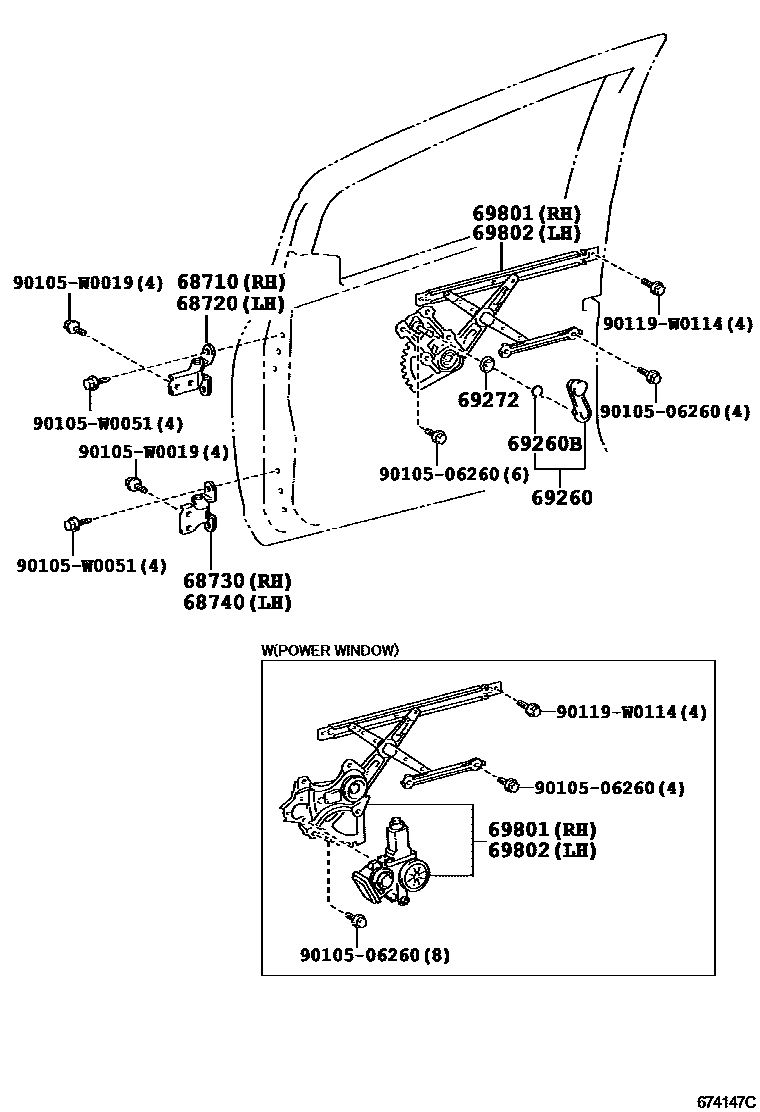

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D040iKSP90,NLP90,SCP90..FRP200511-200811

main68710-12151iKSP90,NLP90,NSP90..FRP200811-201107

(J)

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D040iKSP90,NLP90,SCP90..FRP200511-200811

main68720-12151iKSP90,NLP90,NSP90..FRP200811-201107

(J)

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0D030iKSP90,NLP90,SCP90..FRP200511-200811

main68730-33021iKSP90,NLP90,NSP90..FRP200811-201107

(J)

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0D030iKSP90,NLP90,SCP90..FRP200511-200811

main68740-33021iKSP90,NLP90,NSP90..FRP200811-201107

(J)

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02020-B2×2iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

DK.GRAY,TRIM1#; POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO),DK.GRAY,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52100×2iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02022×2iKSP90,NLP90,SCP90..FRP..TRSTD200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-0D031iKSP90,NLP90,SCP90..FRP..5D..TRSTD200511-200811

main69810-0D041iKSP90,NLP90,SCP90..FRP..RHD..5D..SOL; KSP90,NLP90,SCP90..FRP..RHD..5D..TRSTD200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69810-0D131iKSP90,NLP90,SCP90..FRP..LHD..5D..SOL; KSP90,NLP90,SCP90..FRP..LHD..5D..TRSTD200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69810-0D170iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-200610

main69810-0D180iKSP90,NLP90,SCP90..FRP..LHD..3D..SOL; KSP90,NLP90,SCP90..FRP..LHD..3D..TRSTD200601-200610

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69810-0D190iKSP90,NLP90,SCP90..FRP..RHD..3D..SOL; KSP90,NLP90,SCP90..FRP..RHD..3D..TRSTD200601-200610

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-0D031iKSP90,NLP90,SCP90..FRP..5D..TRSTD200511-200811

main69820-0D041iKSP90,NLP90,SCP90..FRP..LHD..3D..SOL; KSP90,NLP90,SCP90..FRP..LHD..3D..TRSTD200610-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69820-0D141iKSP90,NLP90,SCP90..FRP..RHD..5D..SOL; KSP90,NLP90,SCP90..FRP..RHD..5D..TRSTD200511-200811

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69820-0D180iKSP90,NLP90,SCP90..FRP..3D..TRSTD200601-200610

main69820-0D190iKSP90,NLP90,SCP90..FRP..RHD..3D..SOL; KSP90,NLP90,SCP90..FRP..RHD..3D..TRSTD200601-200610

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

main69820-0D200iKSP90,NLP90,SCP90..FRP..LHD..3D..SOL; KSP90,NLP90,SCP90..FRP..LHD..3D..TRSTD200601-200610

POWER WINDOW-WITH FRONT ONLY (DRIVER AUTO)

9010506260

main90105-06260

90105W0019

main90105-W0019

90105W0051

main90105-W0051

90119W0114

main90119-W0114

13 parts on this diagram · 1 diagram in section
