FRONT DOOR LOCK & HANDLE

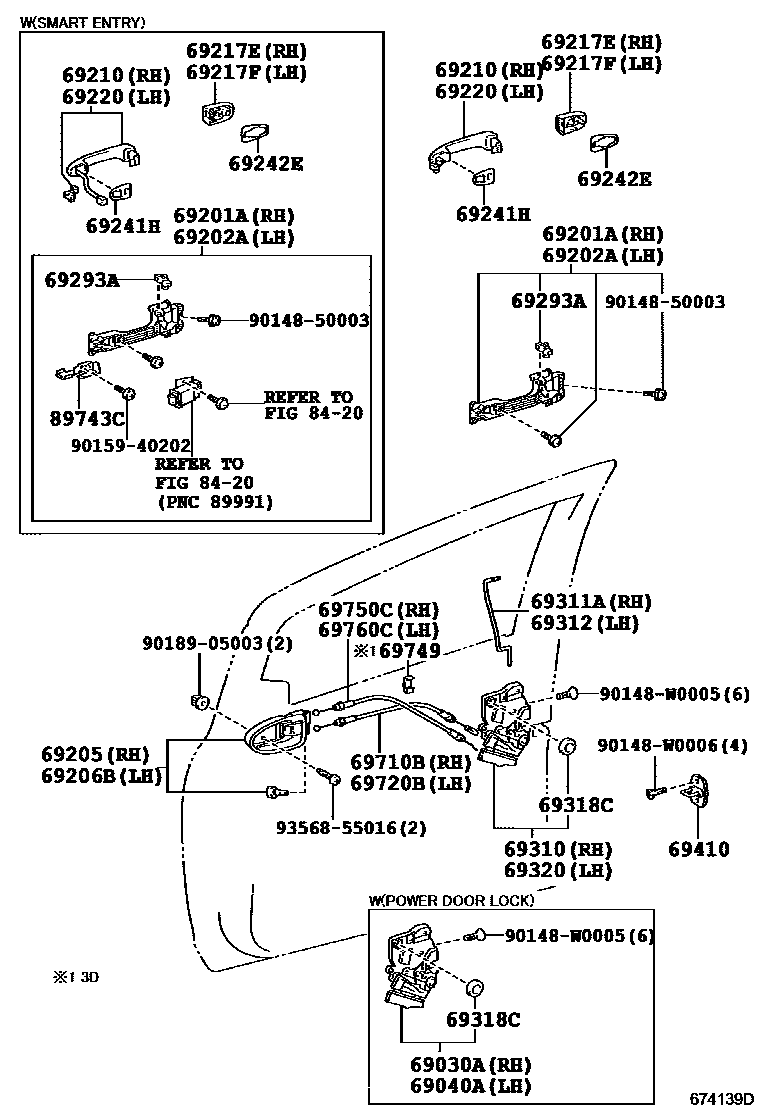

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-0D120i200811
main69030-0D140i200511-200811
main69030-0D130i200811
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
main69030-0D150i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
main69030-0D340supersedes 69030-0D140i201005
WIRELESS DOOR LOCK-WITH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-0D070i200511-200811
main69040-0D140i200511-200811
main69040-0D110i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)
main69040-0D120supersedes 69040-0D070i200811
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START); POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
main69040-0D350supersedes 69040-0D070i201005
WIRELESS DOOR LOCK-WITH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0D030i200811-201107
main69201-0D010i200811-201107
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main69201-0D020i201008-201107
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM); WEST PACKAGE&POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIPTYPE & SMART KEY SYSTEM); WEST PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM)
main69201-0D040i201008-201107
WEST PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-0D010i200511-200811
main69202-0D020i201008
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM); WEST PACKAGE&POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIPTYPE & SMART KEY SYSTEM); WEST PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MAT SILVER(GRIP TYPE & SMART KEY SYSTEM); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM)
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-0D090-B0i200511-200811
DK.GRAY,TRIM1#; DOOR INSIDE HANDLE=W/O PAINTED,DK.GRAY,TRIM18
main69205-0D100-B0i200511-200811
DK.GRAY & SILVER,TRIM18
main69205-0D100-B1i200511-200811
GRAY & SILVER,TRIM19
main69205-0D210-B0i200811-201107
DK.GRAY,TRIM1#
main69205-0D210-E0i200811-201001
GREGE,TRIM4#
main69205-0D090-B3i200511-200706
DOOR INSIDE HANDLE=W/O PAINTED,GRAY,TRIM19
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-0D090-B0i200511-200811
DK.GRAY,TRIM1#; DOOR INSIDE HANDLE=W/O PAINTED,DK.GRAY,TRIM18
main69206-0D100-B0i200511-200811
DK.GRAY & SILVER,TRIM18
main69206-0D100-B1i200511-200811
GRAY,TRIM19
main69206-0D200-B0i200811-201107
DK.GRAY,TRIM1#
main69206-0D200-E0i200811-201001
GREGE,TRIM4#
main69206-0D090-B3i200511-200706
DOOR INSIDE HANDLE=W/O PAINTED,GRAY,TRIM19
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69211-0D070i200811-201107
NO PAINT REQ.
main69211-0D901supersedes 69211-0D070i200811-201107
PAINT REQ.; PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); PAINT REQ.,POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOORLOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main69210-0D060-A0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),WHITE,068; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),WHITE,068
main69210-0D060-B0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILVER M.M.,1E7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILVER M.M.,1E7
main69210-0D060-B1i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),MEDIUM SILVER ME.,1F8; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),MEDIUM SILVER ME.,1F8
main69210-0D060-B3i200706-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),GRAY ME.,1G3
main69210-0D060-B6i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILVER,068 ,1E7 ,1F8 ,1G3 ,209 ,3P0 ,5A7 ,8P4 ,8S5 ,8T4 ,8T7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILVER,068 ,1E7 ,1F8 ,1G3 ,209 ,3P0 ,5A7 ,8P4 ,8S5 ,8T4 ,8T7
main69210-0D060-C0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLACK MC.,209; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLACK MC.,209
main69210-0D060-D0i200811-201008
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0
main69210-0D060-E0i200511-200706
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),ORANGE M.M.,4S9
main69210-0D060-F1i200811-201001
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),YELLOW,5A6
main69210-0D060-F2i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILKY GOLD M.M.,5A7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILKY GOLD M.M.,5A7
main69210-0D060-G0i200511-200706
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),DK.GREEN M.M.,6S3
main69210-0D060-J0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),DK.BLUE M.M.,8P4; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),DK.BLUE M.M.,8P4
main69210-0D060-J1i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),BLUE M.M.,8T0
main69210-0D060-J2i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),GRAYISH BLUE M.M.,8T1
main69210-0D060-J7i200811-201001
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAYISH BLUE ME.,8S5
main69210-0D060-J8i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLUE ME.,8T4; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLUE ME.,8T4
main69210-0D060-R0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLUE ME.,8T7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLUE ME.,8T7
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-0D040i200811-201107
BLACK
main69217-0D903supersedes 69217-0D040i200511-200811
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main69217-0D050i201005-201107
BLACK,WIRELESS DOOR LOCK-WITH
main69217-0D904i201005-201008
WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); WIRELESS DOOR LOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-0D040i200811-201107
BLACK
main69217-0D903supersedes 69217-0D040i200811-201107
OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main69217-0D050i200811-201107
BLACK,POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-WITH
main69217-0D904i200811-201005
POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH; POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOOR LOCK-SMARTKEY:FRONT & BACK(WITH/PUSH START); WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69211-0D070i200811-201107
NO PAINT REQ.
main69211-0D901supersedes 69211-0D070i200511-200811
PAINT REQ.; PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED); PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROLTR(COLORED)W/HTR; PAINT REQ.,POWER DOOR LOCK-W/DOUBLE LOCK, DRIVER SIDE:MANUAL SWITCH&WIRELESS DOORLOCK-WITH&OUTSIDE REAR VIEW MIRROR-ELECTRIC REMOTE CONTROL(COLORED)
main69210-0D060-A0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),WHITE,068; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),WHITE,068
main69210-0D060-B0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILVER M.M.,1E7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILVER M.M.,1E7
main69210-0D060-B1i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),MEDIUM SILVER ME.,1F8; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),MEDIUM SILVER ME.,1F8
main69210-0D060-B3i200811-201008
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAY ME.,1G3
main69210-0D060-B6i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILVER,068 ,1E7 ,1F8 ,1G3 ,209 ,3P0 ,5A7 ,8P4 ,8S5 ,8T4 ,8T7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILVER,068 ,1E7 ,1F8 ,1G3 ,209 ,3P0 ,5A7 ,8P4 ,8S5 ,8T4 ,8T7
main69210-0D060-C0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLACK MC.,209; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLACK MC.,209
main69210-0D060-D0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SUPER RED 5,3P0; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SUPER RED 5,3P0
main69210-0D060-E0i200511-200706
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),ORANGE M.M.,4S9
main69210-0D060-F1i200811-201001
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),YELLOW,5A6
main69210-0D060-F2i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),SILKY GOLD M.M.,5A7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),SILKY GOLD M.M.,5A7
main69210-0D060-G0i200511-200706
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),DK.GREEN M.M.,6S3
main69210-0D060-J0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),DK.BLUE M.M.,8P4; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),DK.BLUE M.M.,8P4
main69210-0D060-J1i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),BLUE M.M.,8T0
main69210-0D060-J2i200511-200811
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START),GRAYISH BLUE M.M.,8T1
main69210-0D060-J7i200811-201001
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),GRAYISH BLUE ME.,8S5
main69210-0D060-J8i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLUE ME.,8T4; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLUE ME.,8T4
main69210-0D060-R0i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),BLUE ME.,8T7; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),BLUE ME.,8T7
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-0D020×2i200511-200811
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-0D020×2i200511-200808
main69242-52020×2i200809-200811
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030i200511-200811
RH
main69293-12040i200511-200811
LH
69310LOCK ASSY, FRONT DOOR, RH
main69310-0D070i200511-200811
POWER DOOR LOCK-W/O
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-0D030i200511-200811
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-0D030i200811
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-47010×2i200511-200811
69320LOCK ASSY, FRONT DOOR, LH
main69320-0D070i200511-200811
POWER DOOR LOCK-W/O
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-0D030×2i200511-200811
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-0D080i200601-200811
main69710-0D090i200811
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-0D080i200601-200811
main69710-0D090i200811
69749CLAMP, FRONT DOOR LOCK LINK
main69749-32040×2i200811
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-0D040i200601-200811
main69750-0D050i200811
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-0D040i200811
main69750-0D050i200811
8420WIRELESS DOOR LOCK
→ Go to FIG 84-20
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-0D010i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),RH; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),RH
main89743-0D020i201008-201107
WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-COLORED(SMART KEY SYSTEM),LH; WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)&DOOR OUTSIDE HANDLE-MATSILVER(GRIP TYPE & SMART KEY SYSTEM),LH
9014850003
main90148-50003
90148W0005
main90148-W0005
90148W0006
main90148-W0006
9015940202
main90159-40202
9018905003
main90189-05003
9356855016
main93568-55016

32 parts on this diagram · 1 diagram in section
