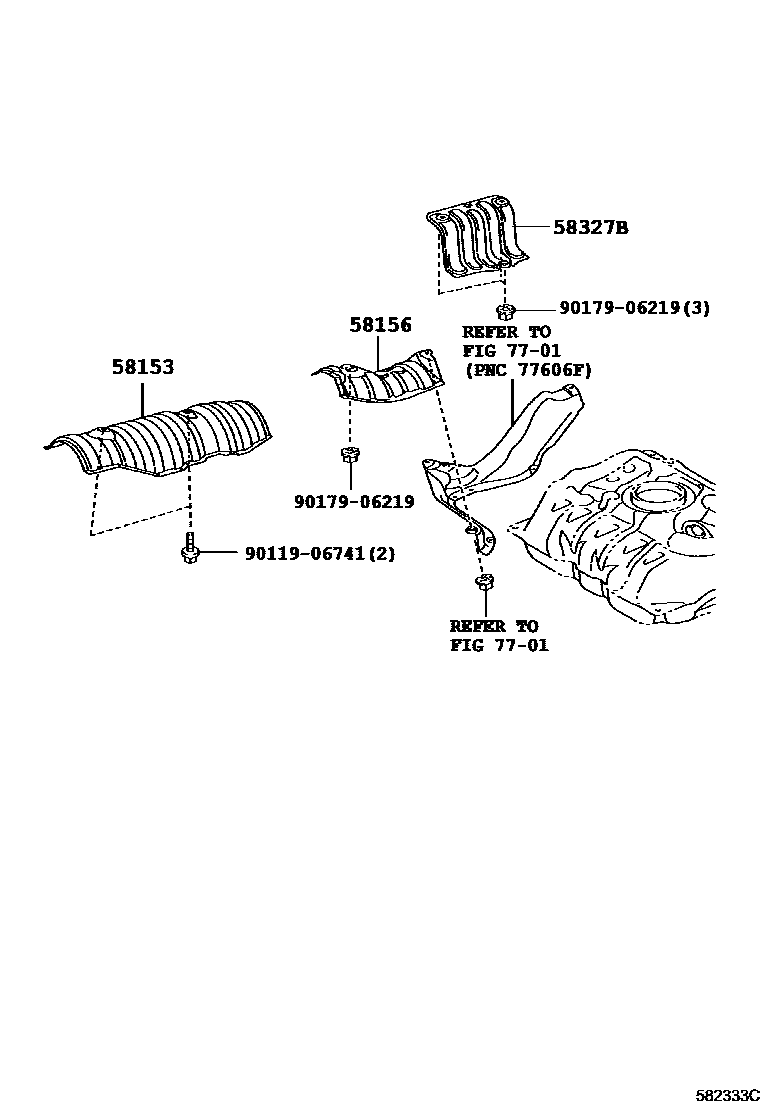

FLOOR INSULATOR

0001 1 0002 1

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0D040iKSP90,SCP90..FRP200511-200811

main58153-0D060iNSP90..FRP..LHD200811-201107

COLD SPEC, WITH(REAR HEATER DUCT)

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-0D010iKSP90,SCP90..FRP200511-200811

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0D050iKSP90,NLP90,SCP90..FRP200511-200811

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011906741

main90119-06741

9017906219

main90179-06219

6 parts on this diagram · 2 diagrams in section
