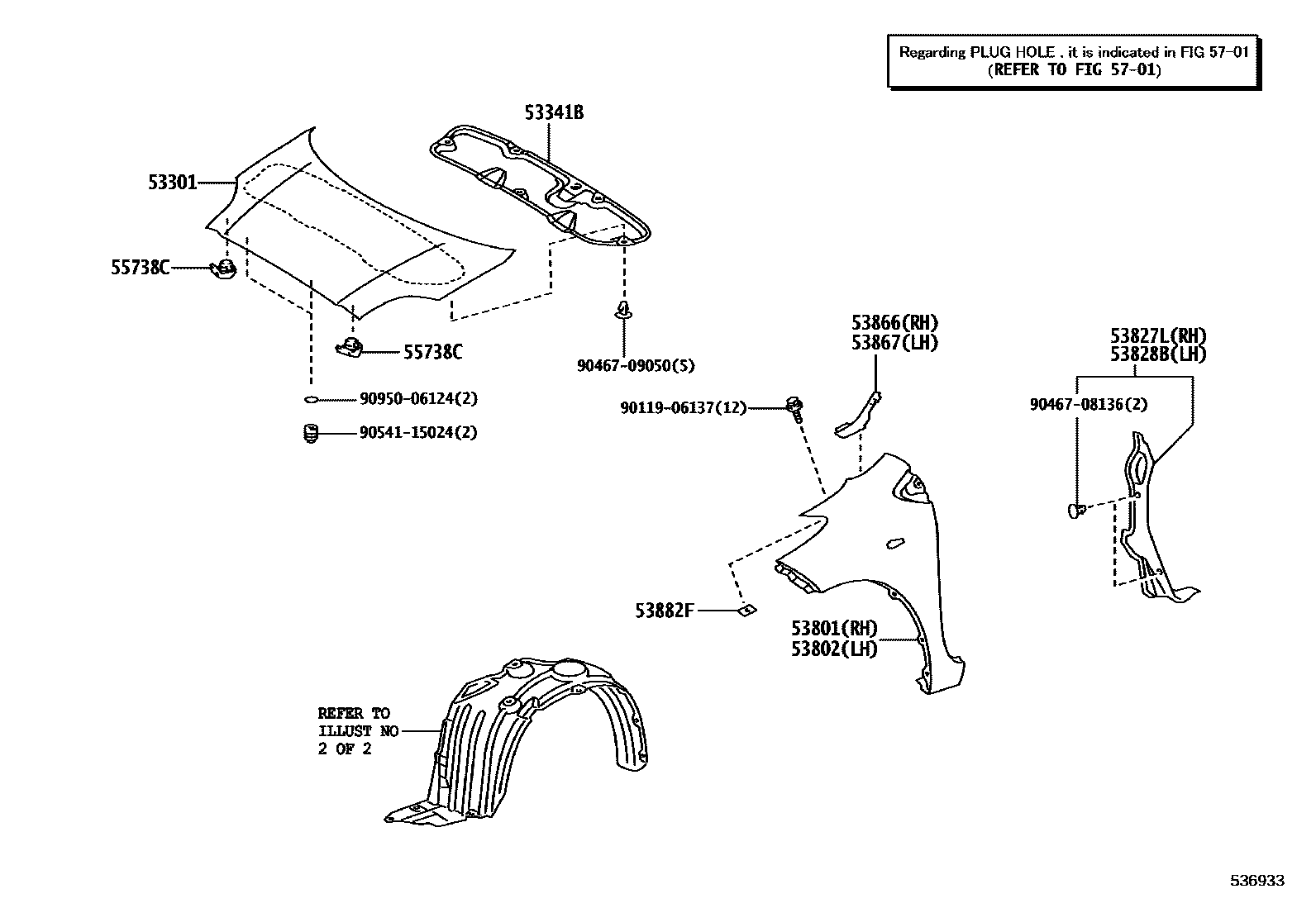

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
INSTRUMENT PANEL UNDER COVER=D & P SEAT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
main53827-52100iKSP90,SCP90..FRP..LHD..TRSTD; KSP90,SCP90..FRP..TRSTD; NLP90..FRP;KSP90,SCP90..FRP..SOL200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT); INSTRUMENT PANEL UNDER COVER=D & P SEAT; INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH OUT(REAR HEATER DUCT); INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH(REAR HEATER DUCT)
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
main53828-52120iKSP90,SCP90..FRP..LHD..TRSTD; KSP90,SCP90..FRP..TRSTD; NLP90..FRP;KSP90,SCP90..FRP..SOL200511-200811
COLD SPEC, WITH OUT(REAR HEATER DUCT); COLD SPEC, WITH(REAR HEATER DUCT); INSTRUMENT PANEL UNDER COVER=D & P SEAT; INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH OUT(REAR HEATER DUCT); INSTRUMENT PANEL UNDER COVER=D & P SEAT&COLD SPEC, WITH(REAR HEATER DUCT)
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53882FSEAL, FRONT FENDER
55738CSTOPPER, HOOD, RH
5701HOLE PLUG
9011906137
main90119-06137
9046708136
main90467-08136
9046709050
main90467-09050
9054115024
main90541-15024
9095006124
main90950-06124
16 parts on this diagram · 4 diagrams in section
