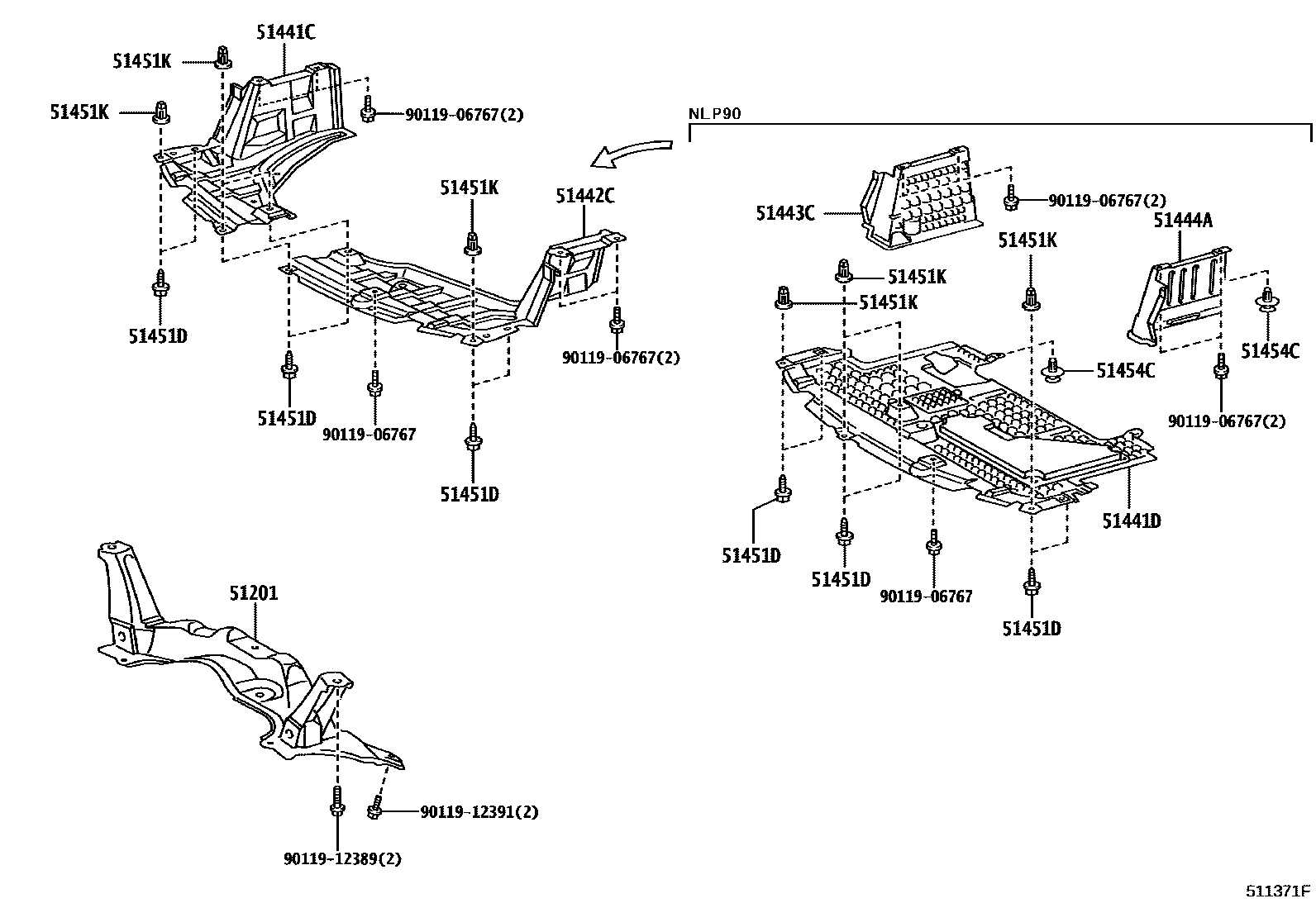

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-0D090iKSP90,SCP90..FRP200511-200811

main51201-0D093iKSP90,NSP90..FRP201102-201107

main51201-0D100iNLP90..FRP200811-201102

main51201-0D103iNLP90..FRP201102-201107

51441CCOVER, ENGINE UNDER, RH

main51441-0D100iKSP90,SCP90..FRP200511-200811

main51441-0D190iNSP90..FRP200811

main51441-0D210iKSP90..FRP200811

51441DCOVER, ENGINE UNDER

main51441-0D130iNLP90..FRP200511-200612

main51441-0D200iNLP90..FRP200811

51442CCOVER, ENGINE UNDER, LH

main51442-0D050iKSP90,SCP90..FRP200511-200811

main51442-0D130iKSP90,NSP90..FRP200811

51443CCOVER, ENGINE UNDER, REAR RH

main51443-0D010iNLP90..FRP200511-200612

main51443-0D020iNLP90..FRP200811

51444ACOVER, ENGINE UNDER, REAR LH

main51444-0D010iNLP90..FRP200511-200612

main51444-0D020iNLP90..FRP200811

51451DSCREW, NO.1

main90159-60383×6iKSP90,NLP90,SCP90..FRP200511-200811

51451KGROMMET, SCREW, NO.1

main90189-06076×4iKSP90,NLP90,SCP90..FRP200511-200811

51454CSILENCER, ENGINE UNDER COVER, REAR

main51454-48010×2iNLP90..FRP200511-200811

9011906767

main90119-06767

9011912389

main90119-12389

9011912391

main90119-12391

12 parts on this diagram · 3 diagrams in section
