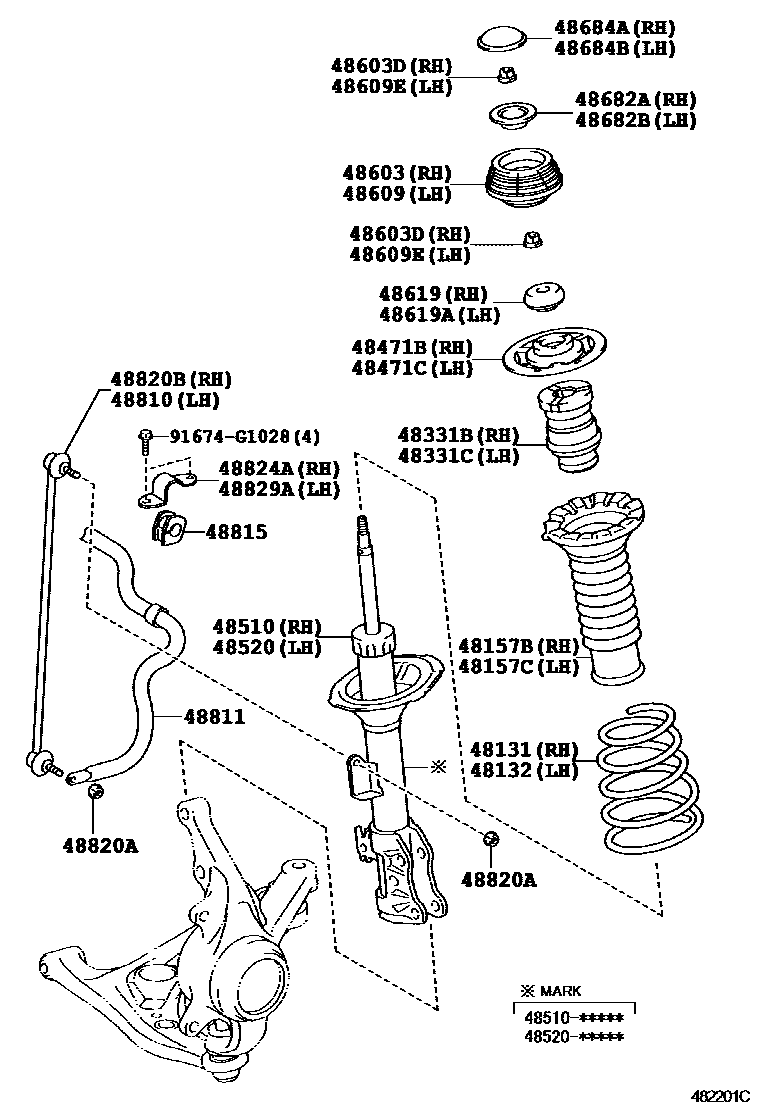

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
48132SPRING, FRONT COIL, LH
ROUGH ROAD AREA SPEC.-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
ROUGH ROAD AREA SPEC-SPARE TIRE=GROUND TIRE
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0D170
MARK 48510-0D171
MARK 48510-0D190
MARK 48510-0D191
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0D010
MARK 48520-0D011
MARK 48520-0D030
MARK 48520-0D031
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48619BEARING, STRUT MOUNTING, RH
48619ABEARING, STRUT MOUNTING, LH
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
91674G1028
main91674-G1028
28 parts on this diagram · 1 diagram in section
