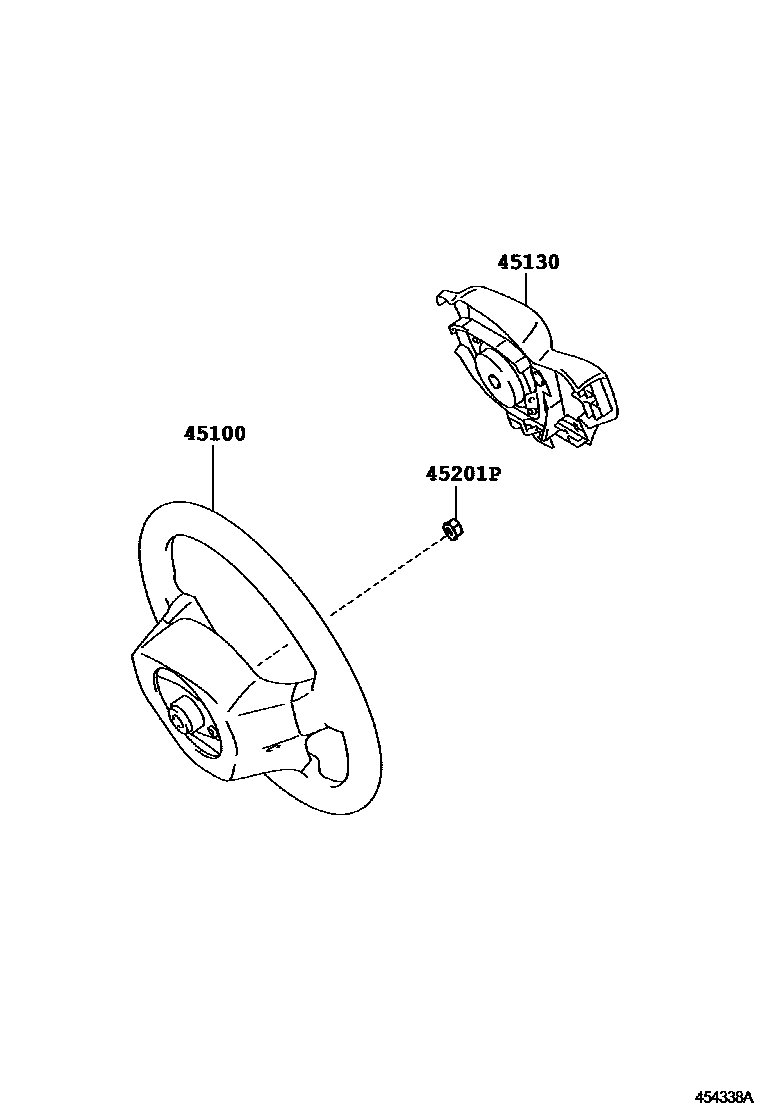

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,ASH BROWN,TRIM4#
main45100-0D130-B0supersedes 45100-0D140-B1iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200811
3-SPOKE,URETHANE,DK.GRAY,TRIM1#; 3-SPOKE,URETHANE,STEERING WHEEL-URETHANE,DK.GRAY,TRIM1#
main45100-0D140-B0supersedes 45100-0D130-B0iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200705
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#
main45100-0D140-B1supersedes 45100-0D130-B0iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200705-200811
3-SPOKE,LEATHER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,DK.GRAY,TRIM1#
main45100-0D140-B2iKSP90,NLP90,NSP90..FRP..TRSTD; KSP90..FRP..5F..SOL; NLP90,NSP90..FRP..6F..SOL200811-201107
3-SPOKE,LEATHER,AUDIO-AM/FM CD 6SPEAKER,DK.GRAY & GRAY,TRIM1#; 3-SPOKE,LEATHER,AUDIO-RADIOLESS 6SPEAKER,DK.GRAY & GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH)&AUDIO-AM/FM CD 6SPEAKER,DK.GRAY & GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH)&AUDIO-RADIOLESS 6SPEAKER,DK.GRAY & GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH),DK.GRAY & GRAY,TRIM1#
3-SPOKE,LEATHER,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH)&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH)&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED, WITH(AUDIO SWITCH)&AUDIO-AM/FM CD 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED, WITH(AUDIO SWITCH)&AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED, WITH(AUDIO SWITCH)&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED, WITH(AUDIO SWITCH)&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH)&*PSH&DIMPLED&AUDIO-AM/FM CD 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH)&*PSH&DIMPLED&AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH)&*PSH&DIMPLED&AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH)&*PSH&DIMPLED&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-WITH(AUDIO SWITCH)&*PSH&AUDIO-AM/FM CD 6SPEAKER,DK.GRAY,TRIM1#; 3-SPOKE,LEATHER,STEERING WHEEL-WITH(AUDIO SWITCH)&*PSH&AUDIO-RADIOLESS 6SPEAKER,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,AUDIO-AM/FM CD 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-WITH(AUDIO SWITCH)&*PSH&AUDIO-AM/FM CD 6SPEAKER,ASHBROWN,TRIM4#; 3-SPOKE,LEATHER,STEERING WHEEL-WITH(AUDIO SWITCH)&*PSH&AUDIO-RADIOLESS 6SPEAKER,ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED,WITH(AUDIO SWITCH&HANDS FREE),DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-DIMPLED,WITH(AUDIO SWITCH&HANDS FREE),ASH BROWN,TRIM4#
3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH&HANDS FREE)&*PSH&DIMPLED,DK.GRAY,TRIM1#
3-SPOKE,LEATHER,STEERING WHEEL-W(AUDIO SWITCH&HANDS FREE)&*PSH&DIMPLED,ASH BROWN,TRIM4#
45130BUTTON ASSY, HORN
main45130-0D160-B0supersedes 45130-0D150-B0iKSP90,NLP90,NSP90..FRP..(5F,6F)..SOL; KSP90,NLP90,NSP90..FRP..TRSTD200811-201107
DK.GRAY,TRIM1#; STEERING WHEEL-LEATHER,WITH(AUDIO SWITCH),DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
DK.GRAY,TRIM1#
ASH BROWN,TRIM4#
main45130-0D150-B0supersedes 45130-0D160-B0iKSP90,NLP90,SCP90..FRP..SOL; KSP90,NLP90,SCP90..FRP..TRSTD200511-200811
DK.GRAY,TRIM1#; STEERING WHEEL-URETHANE,DK.GRAY,TRIM1#
45201PNUT, STEERING WHEEL SET
3 parts on this diagram · 3 diagrams in section
