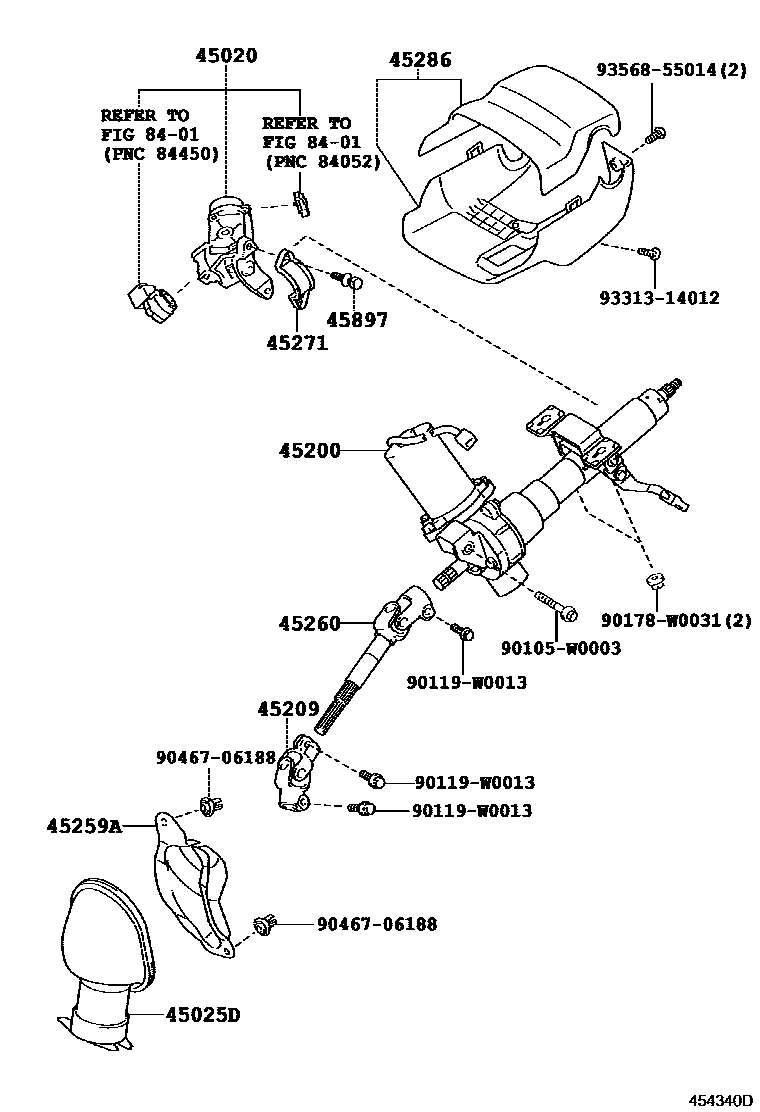

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1W(SMART KEY SYSTEM) 0004 1W(SMART KEY SYSTEM)

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-0D030iKSP90,NLP90,SCP90..FRP200511-200811

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D061iKSP90,NLP90,SCP90..FRP200511-200811

main45025-0D062iKSP90,NLP90,NSP90..FRP201011-201103

45200POST ASSY, STEERING

main45200-0D160supersedes 45200-0D152iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD200511-200707

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D161supersedes 45200-0D152iKSP90,NLP90,SCP90..FRP..LHD..SOL; KSP90,NLP90,SCP90..FRP..LHD..TRSTD200708-200801

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D162supersedes 45200-0D152iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD200811-200903

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D163supersedes 45200-0D152iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD200904-201101

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D164supersedes 45200-0D152iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD201102-201103

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D165supersedes 45200-0D152iKSP90,NLP90,NSP90..FRP..LHD..SOL; KSP90,NLP90,NSP90..FRP..LHD..TRSTD201104-201107

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D170supersedes 45200-0D162iKSP90,NLP90,SCP90..FRP..LHD..SOL200511-200707

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

main45200-0D171supersedes 45200-0D162iKSP90,NLP90,SCP90..FRP..LHD..SOL200708-200801

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

main45200-0D172supersedes 45200-0D162iKSP90,NLP90,SCP90..FRP..LHD..SOL200802-200811

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

main45200-0D173supersedes 45200-0D163iKSP90,NLP90,NSP90..FRP..LHD..SOL200904-201101

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D174supersedes 45200-0D165iKSP90,NLP90,NSP90..FRP..LHD..SOL201102-201103

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D175supersedes 45200-0D165iKSP90,NLP90,NSP90..FRP..LHD..SOL201104-201107

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D190supersedes 45200-0D182iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200511-200707

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D191supersedes 45200-0D182iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200708-200801

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D192supersedes 45200-0D182iKSP90,NLP90,SCP90..FRP..RHD..SOL; KSP90,NLP90,SCP90..FRP..RHD..TRSTD200802-200811

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D193supersedes 45200-0D182iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD200904-201101

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D194supersedes 45200-0D182iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD201102-201103

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D195supersedes 45200-0D182iKSP90,NLP90,NSP90..FRP..RHD..SOL; KSP90,NLP90,NSP90..FRP..RHD..TRSTD201104-201107

STEERING COLUMN-TILT & TELESCOPIC

main45200-0D200supersedes 45200-0D192iKSP90,NLP90,SCP90..FRP..RHD..SOL200511-200707

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

main45200-0D201supersedes 45200-0D192iKSP90,NLP90,SCP90..FRP..RHD..SOL200708-200801

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(W/PUSH START)

main45200-0D202supersedes 45200-0D193iKSP90,NLP90,NSP90..FRP..RHD..SOL200811-200904

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D203supersedes 45200-0D193iKSP90,NLP90,NSP90..FRP..RHD..SOL200905-201101

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D204supersedes 45200-0D195iKSP90,NLP90,NSP90..FRP..RHD..SOL201102-201103

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

main45200-0D205supersedes 45200-0D195iKSP90,NLP90,NSP90..FRP..RHD..SOL201104-201107

WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D030iKSP90,NLP90,SCP90..FRP200511-200811

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D010iKSP90,NSP90..FRP..LHD200811

main45259-0D020iKSP90,NSP90..FRP..RHD..(5FS,6FS)200811

main45259-0D040iNLP90..FRP..LHD200511-200811

main45259-0D050iNLP90..FRP..RHD..6FS200902-201004

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D080iKSP90,NLP90,SCP90..FRP..RHD200511-200811

main45260-0D090iKSP90,NLP90,SCP90..FRP..LHD200511-200811

45271CLAMP, STEERING COLUMN, UPPER

main45271-52030iKSP90,NLP90,SCP90..FRP200511-200811

45286COVER, STEERING COLUMN

main45286-0D914-B0iKSP90,NLP90,NSP90..FRP200811-201107

DK.GRAY,TRIM1#

main45286-0D914-E0iKSP90,NLP90,NSP90..FRP..(5F,6F,6FS)..SOL200811-201001

ASH BROWN,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iKSP90,NLP90,SCP90..FRP200511-200811

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105W0003

main90105-W0003

90119W0013

main90119-W0013

90178W0031

main90178-W0031

9046706188

main90467-06188

9331314012

main93313-14012

9356855014

main93568-55014

16 parts on this diagram · 4 diagrams in section
