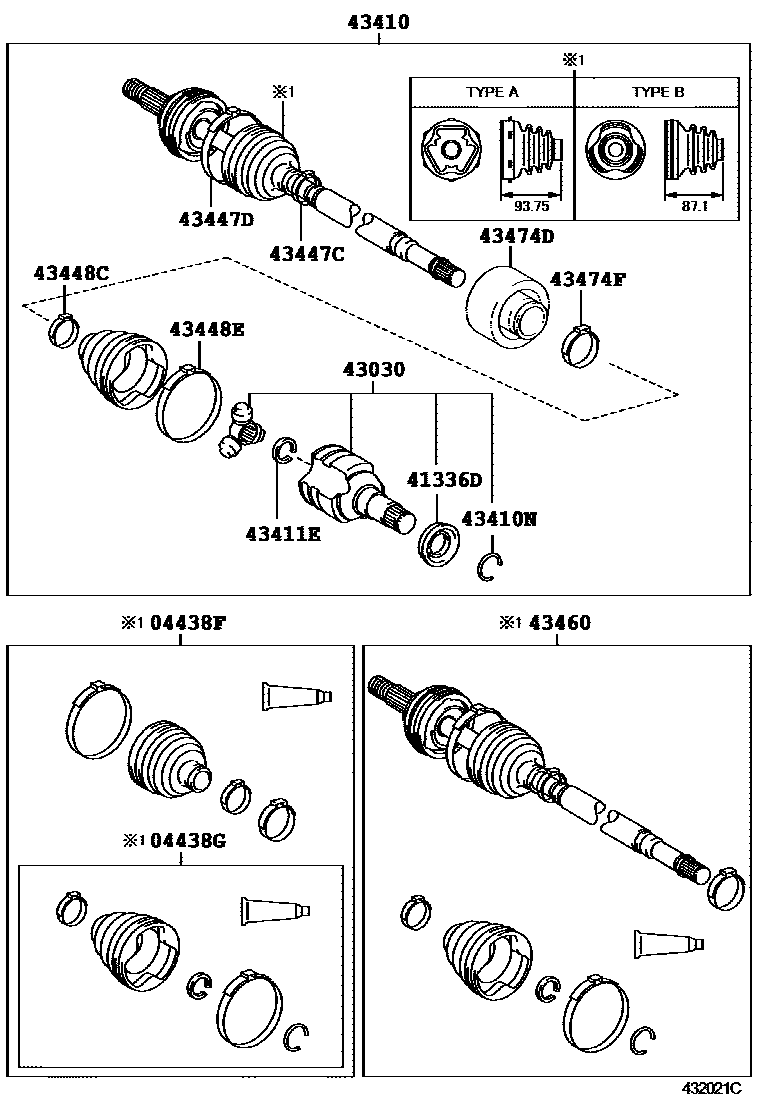

FRONT DRIVE SHAFT
04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
PNC 43410=TYPE B
04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
PNC 43410=TYPE B
41336DCOVER, FRONT DRIVE SHAFT DUST, RH
43410SHAFT ASSY, FRONT DRIVE, RH
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
PNC 43410=TYPE A
sub43425-0H010
PNC 43410=TYPE B
43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
sub42345-0H010
PNC 43410=TYPE A
PNC 43410=TYPE B
43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
PNC 43410=TYPE A
PNC 43410=TYPE B
43474DDAMPER, FRONT DRIVE SHAFT, RH
PNC 43410=TYPE B
43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
PNC 43410=TYPE A
PNC 43410=TYPE B
14 parts on this diagram · 2 diagrams in section
