VENTURI

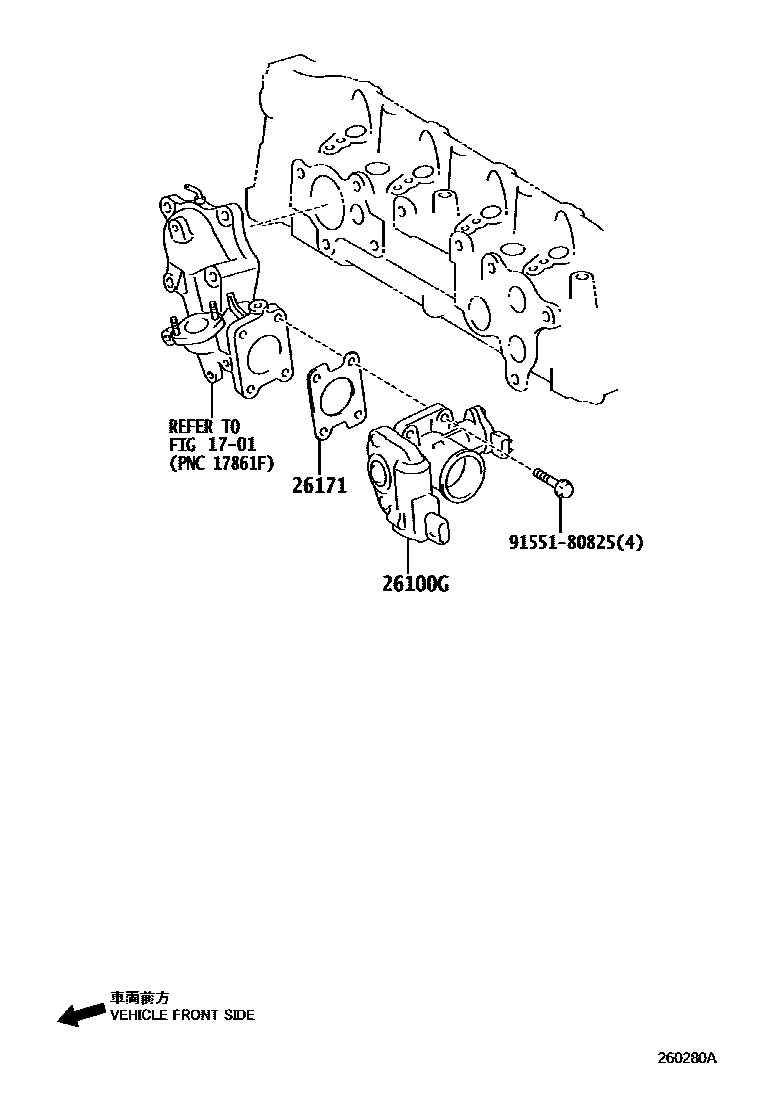

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

26100GBODY ASSY, DIESEL THROTTLE

main26100-0N010i200511-200811

(L)

main26100-0N030i200811

main26100-33040i200511-200811

(J)

26171GASKET, VENTURI

main26171-33030i200811

main26171-33040i200511-200811

9155180825

main91551-80825

4 parts on this diagram · 2 diagrams in section
