FUEL INJECTION SYSTEM

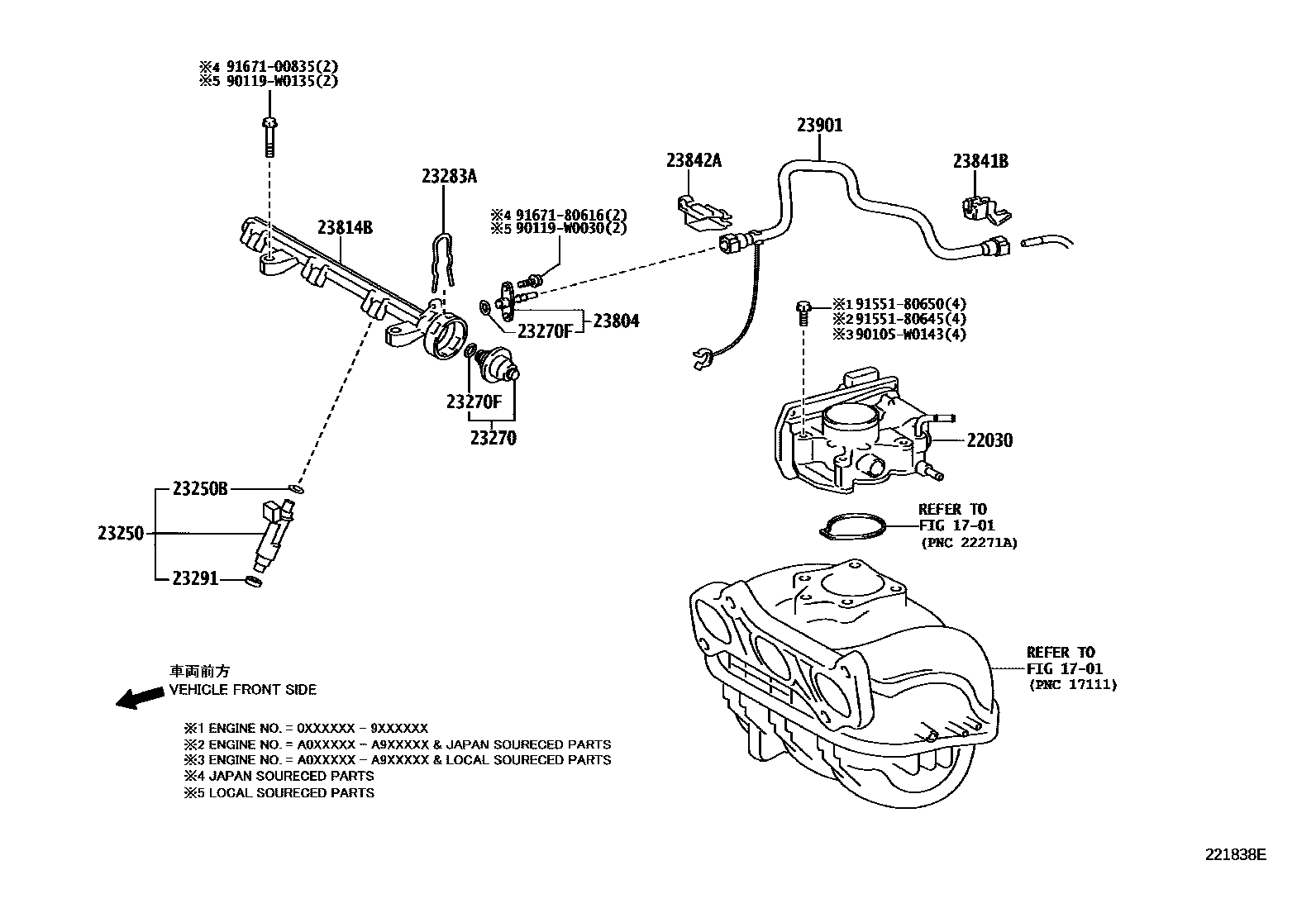

Parts diagram

1701MANIFOLD

→ Go to FIG 17-01

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Q010i200511-200811

main22030-0Q020i200811-201006

main22030-47010i200811

23250INJECTOR ASSY, FUEL

main23209-09020×4i200511

main23209-09030×3i200811-201006

*138

main23209-49085×3i200811

*132

main23209-49205×4i200811

23250BRING, O(FOR FUEL INJECTOR)

main90301-07024×4i200511-200607

main90301-07033×3i200811

main90301-07037×4i200607

main90301-07042×4i200811

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-40010i200811-201006

23270FRING, O(FOR PULSATION DAMPER)

main90301-07033×2i200511-200811

23283AHOLDER, FUEL PRESSURE REGULATOR

main23283-40010i200511-200811

23291INSULATOR, INJECTOR VIBRATION

main23291-0J020×4i200511

main23291-23010×3i200811

*138,(J)

main23291-87701×3i200811-201006

*132

23804PIPE SUB-ASSY, FUEL, NO.4

main23804-40010i200811

23814BPIPE, FUEL DELIVERY

main23814-0Q010i200511-200811

(L)

main23814-40010i200511-200811

(J)

main23814-47020i200811

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i200705-200811

main23841-28010i200511-200704

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-0Q010i200511-200811

23901TUBE SUB-ASSY, FUEL

main23901-0Q050i200511-200811

main23901-0Y010i200811-201107

90105W0143

main90105-W0143

90119W0030

main90119-W0030

90119W0135

main90119-W0135

9155180645

main91551-80645

9155180650

main91551-80650

9167100835

main91671-00835

9167180616

main91671-80616

20 parts on this diagram · 3 diagrams in section
