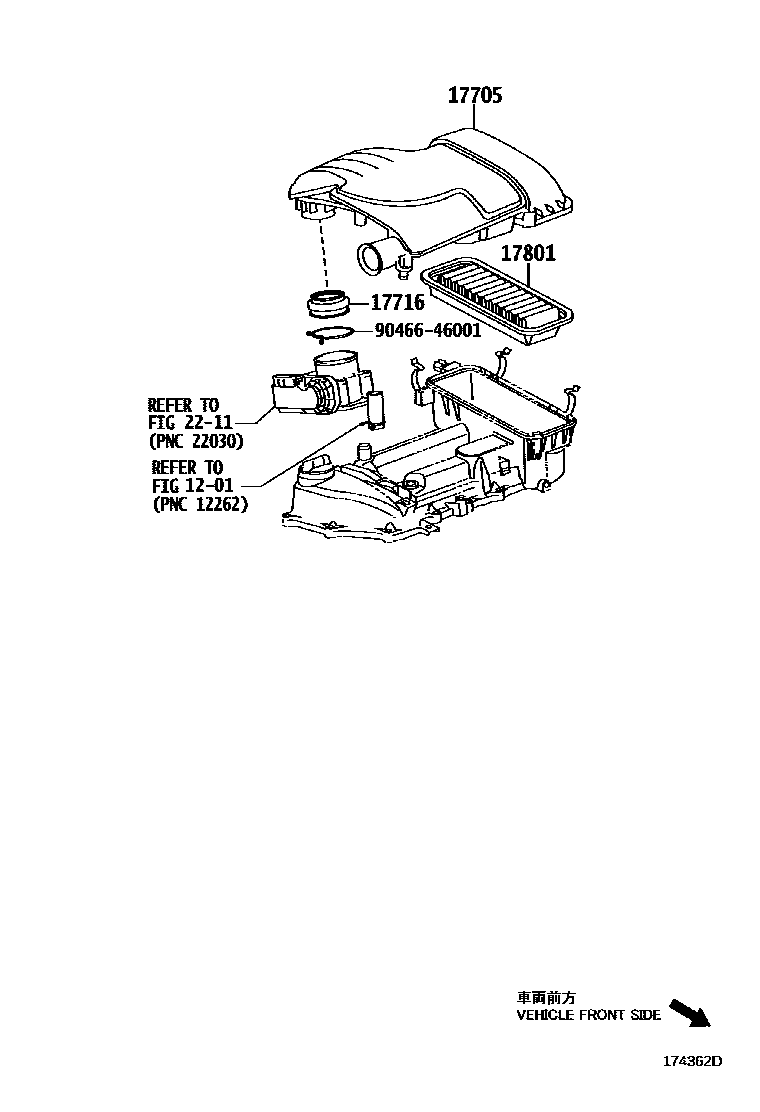

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17705CAP SUB-ASSY, AIR CLEANER

main17705-0J010i2SZFE..SCP90..FRP200511

main17705-0N020i1NDTV..NLP90..FRP200511-200811

main17705-0N050i1NDTV..NLP90..FRP200811-201107

main17705-0Q020i1KRFE..KSP90..FRP..5FS200811-201006

(L)

main17705-0Y010i1NRFE..NSP90..FRP200811-201103

main17705-0Y011i1NRFE..NSP90..FRP201104-201107

main17705-40110i1KRFE..KSP90..FRP..5F200811

(J)

17716SUPPORT,AIR CLEANER CAP

main17716-0Q020i1KRFE..KSP90..FRP200511

(L)

main17716-40030i1KRFE..KSP90..FRP200511

(J)

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0J020i1KRFE..KSP90..FRP200511

(L)

main17801-0N020i1NDTV..NLP90..FRP200511-200811

main17801-0N040i1NDTV..NLP90..FRP200811-201107

main17801-0Y010i1NRFE..NSP90..FRP200811-201107

main17801-23030i1KRFE..KSP90..FRP..5FS200811-201006

(J)

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

9046646001

main90466-46001

6 parts on this diagram · 7 diagrams in section
