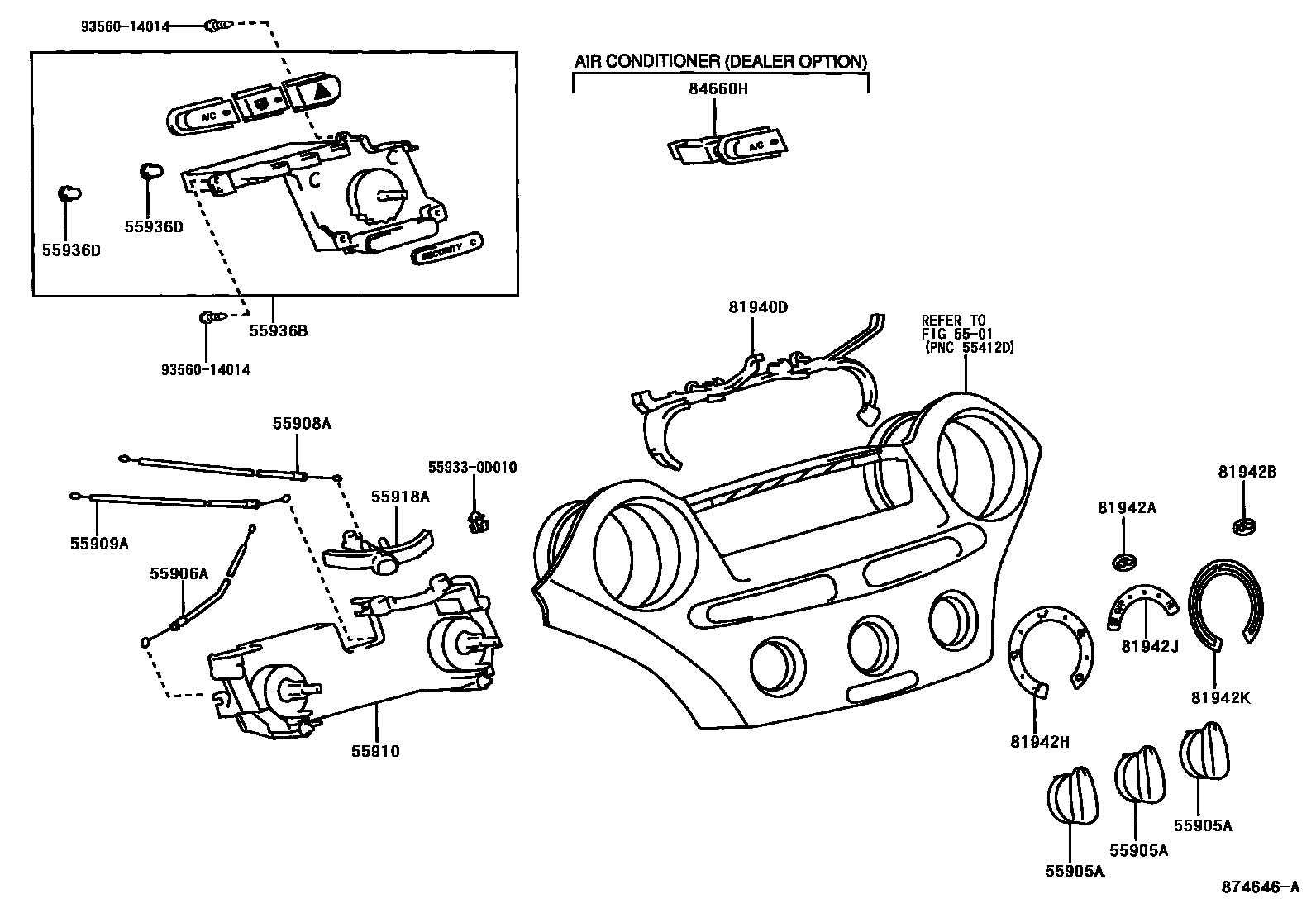

→ Go to FIG 55-01

55905AKNOB, HEATER CONTROL

main55905-0D010×2iSCP1#; SCP1#..LHD200101-200302

W(AIR CONDITIONER)

main55905-0D060×2iNLP10,SCP1#..FRP..(TRSTD,TSGS); NLP10,SCP1#..FRP..LHD..TRSTD200302

W(AIR CONDITIONER)

main55905-0D070×2iNLP10,SCP1#..FRP; NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302

SILVER PAINTED; W(AIR CONDITIONER),SILVER PAINTED

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D010iNLP10,SCP1#..FRP200302

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-0D010iNLP10,SCP1#..FRP..LHD200302

main55908-0D020iNLP10,SCP1#..FRP..RHD200302

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D010iSCP1#..LHD200101-200302

main55909-0D020iSCP1#..RHD200101-200302

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-0D010iNLP10,SCP1#..FRP..LHD200302

W(HEATER)

main55910-0D020iNLP10..FRP..LHD;SCP10..FRP..LHD..5FS;SCP12..FRP..LHD..TRSTD; SCP12..FRP..LHD..SOL;SCP10..FRP..LHD..(SOL,TRSTD)..5F200302

W(AIR CONDITIONER); W(BOOST VENTILATOR & AIR CONDITIONER)

main55910-0D030iSCP1#..RHD200101-200302

main55910-0D060iSCP1#..LHD200101-200302

W(BOOST VENTILATOR)

55918ALEVER, AIR INLET DAMPER CONTROL

main55918-0D010iSCP10200101-200111

main55918-0D020iSCP10..LHD200101-200111

COLD SPEC

main55918-0D060iSCP1#200111-200302

main55918-0D090iNLP10,SCP1#..FRP200302

55936BSWITCH, CENTER CLUSTER MODULE

main84010-0D010iSCP1#200101-200302

main84010-0D020iSCP1#200101-200302

W(AIR CONDITIONER)

main84010-0D070iNLP10,SCP1#..FRP..(SOL,TRSTD)200302-200402

W(AIR CONDITIONER)

main84010-0D071iNLP10,SCP1#..FRP..(SOL,TRSTD)200402

W(AIR CONDITIONER)

main84010-0D080iNLP10,SCP1#..FRP200302-200402

main84010-0D081iNLP10,SCP1#..FRP200402

55936DBLUB, CENTER CLUSTER MODULE SWITCH

main84999-06010×2iNLP10,SCP1#..FRP200302-200402

12V 1.8W

81940DLENS ASSY, HEATER CONTROL

main81940-0D010iSCP1#200101-200302

main81940-0D150iNLP10,SCP1#..FRP200302

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-0D010-B0iNLP10,SCP1#..FRP200302-200511

DK.GRAY,TRIM1#

main81942-0D010-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main81942-0D010-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-0D020-B0iNLP10,SCP1#..FRP200302-200511

DK.GRAY,TRIM1#

main81942-0D020-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main81942-0D020-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-0D030-B1iSCP10..RHD200101-200110

SHADOW GRAY,TRIM1#

main81942-0D030-H0iSCP10..RHD200101-200110

FRENCH TURQUOISE,TRIM7#

main81942-0D070-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main81942-0D070-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

main81942-0D080-B1iSCP1#..LHD200101-200302

W(HEATER),SHADOW GRAY,TRIM1#

main81942-0D080-H0iSCP1#..RHD200110-200302

FRENCH TURQUOISE,TRIM7#

81942JSHEET, HEATER CONTROL NAME, NO.4

main81942-0D040-B1iSCP1#200101-200302

SHADOW GRAY,TRIM1#

main81942-0D040-H0iSCP1#200101-200302

FRENCH TURQUOISE,TRIM7#

81942KSHEET, HEATER CONTROL NAME, NO.5

main81942-0D050-B1iSCP1#..LHD; SCP1#..RHD200101-200302

SHADOW GRAY,TRIM1#; W(HEATER),SHADOW GRAY,TRIM1#

main81942-0D050-H0iSCP1#..LHD; SCP1#..RHD200101-200302

FRENCH TURQUOISE,TRIM7#; W(HEATER),FRENCH TURQUOISE,TRIM7#

main81942-0D060-B1iSCP1#..LHD200101-200302

SHADOW GRAY,TRIM1#

main81942-0D060-H0iSCP1#..LHD200101-200302

FRENCH TURQUOISE,TRIM7#

84660HSWITCH ASSY, COOLER CONTROL

main84660-0D010iNLP10,SCP1#..FRP200302

main84660-52010iSCP1#200101-200302

559330D010GUIDE, LEVER, NO.2

main55933-0D010

9356014014

main93560-14014

18 parts on this diagram · 8 diagrams in section
