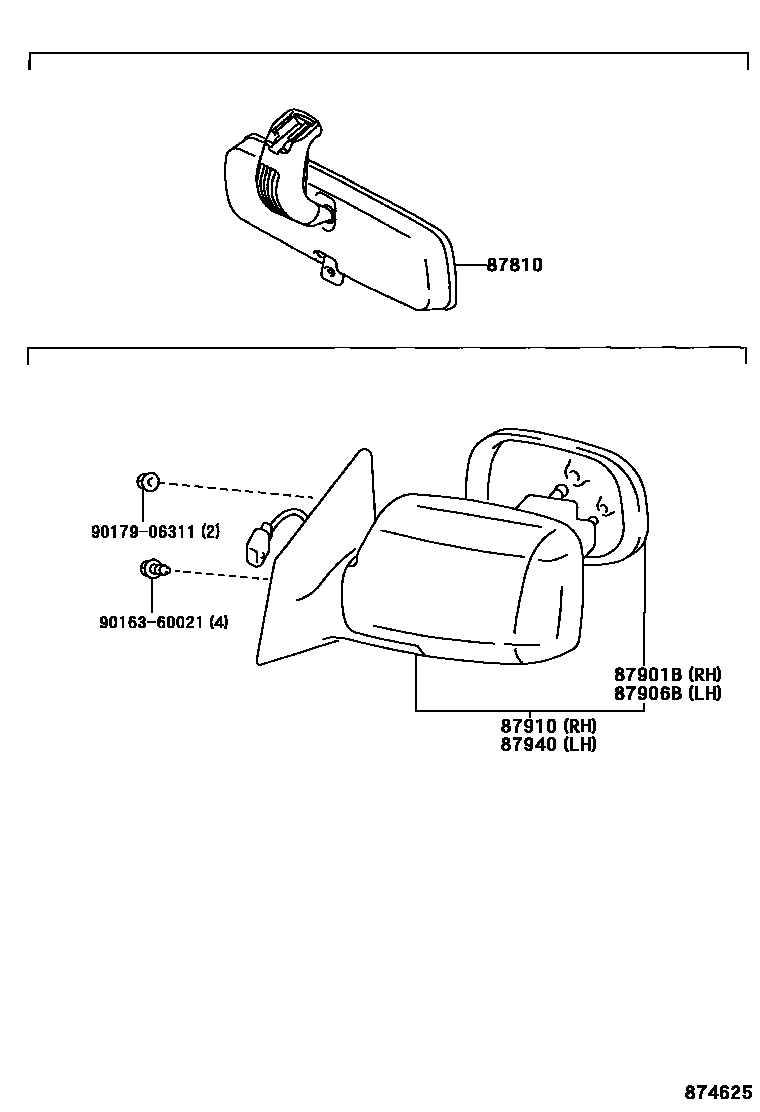

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-0D010iSCP1#200101-200302

main87810-0D011iNLP10,SCP1#..FRP200410

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-0D010iNLP10,SCP1#..FRP200508

main87931-0D030iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

W(HEATER)

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-0D010iNLP10,SCP1#..FRP200405-200507

main87961-0D030iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200405-200507

W(HEATER)

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-0D010iSCP1#..LHD200101-200302

main87910-0D011iNLP10,SCP1#..FRP..LHD..(TRSTD,TSGS)200405-200507

main87910-0D012iNLP10,SCP1#..FRP..LHD..(TRSTD,TSGS)200508

main87910-0D020iNLP10,SCP1#..FRP..RHD..TRSTD200302-200404

main87910-0D021iNLP10,SCP1#..FRP..RHD..TRSTD200405-200507

main87910-0D022iNLP10,SCP1#..FRP..RHD..TRSTD200508

main87910-0D030iSCP1#..LHD200101-200302

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-0D040iSCP1#..LHD..(LUNA,SOL)200101-200302

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D050iSCP1#..RHD..(LUNA,SOL)200101-200302

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D900iNLP10,SCP1#..FRP..LHD..SOL200302

main87910-0D901iNLP10,SCP1#..FRP..RHD..SOL200302

main87910-0D902iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-0D904iNLP10,SCP1#..FRP..LHD..SOL200302-200405

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D905iNLP10,SCP1#..FRP..RHD..SOL200302-200405

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D907iSCP10..FRP..LHD..SOL..5FS;NLP10,SCP1#..FRP..LHD..(SOL,TRSTD)..(4FC,5F)200405-200508

W/COLORED MIRROR

main87910-0D908iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200405-200508

W/COLORED MIRROR

main87910-0D909iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200405-200508

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-0D910iSCP10..FRP..LHD..TRSTD..5FS200501-200508

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D911iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200405-200508

W/COLORED MIRROR;ELECTRIC REMOTE CONTROL MIRROR

main87910-0D914iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

W/COLORED MIRROR

main87910-0D915iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200508

W/COLORED MIRROR

main87910-0D916iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87910-0D917iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

ELECTRIC REMOTE CONTROL MIRROR

main87910-0D918iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200508

ELECTRIC REMOTE CONTROL MIRROR

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-0D010iNLP10,SCP1#..FRP..LHD..(TRSTD,TSGS)200302-200404

main87940-0D011iNLP10,SCP1#..FRP..LHD..(TRSTD,TSGS)200405-200507

main87940-0D012iNLP10,SCP1#..FRP..LHD..(TRSTD,TSGS)200508

main87940-0D020iSCP1#..RHD200101-200302

main87940-0D021iNLP10,SCP1#..FRP..RHD..TRSTD200405-200507

main87940-0D022iNLP10,SCP1#..FRP..RHD..TRSTD200508

main87940-0D030iSCP1#..LHD200101-200302

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-0D040iSCP1#..LHD..(LUNA,SOL)200101-200302

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D050iSCP1#..RHD..(LUNA,SOL)200101-200302

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D900iNLP10,SCP1#..FRP..LHD..SOL200302

main87940-0D901iNLP10,SCP1#..FRP..RHD..SOL200302

main87940-0D902iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302-200405

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-0D904iNLP10,SCP1#..FRP..LHD..SOL200302-200405

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D905iNLP10,SCP1#..FRP..RHD..SOL200302-200405

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D907iSCP10..FRP..LHD..TRSTD..5FS200501-200508

W/COLORED MIRROR

main87940-0D908iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200405-200508

W/COLORED MIRROR

main87940-0D909iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200405-200508

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-0D910iSCP10..FRP..LHD..TRSTD..5FS200501-200508

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D911iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200405-200508

W/COLORED MIRROR;ELECTRIC REMOTE CONTROL MIRROR

main87940-0D914iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

W/COLORED MIRROR

main87940-0D915iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200508

W/COLORED MIRROR

main87940-0D916iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

ELECTRIC REMOTE CONTROL MIRROR W/HEATER

main87940-0D917iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200508

ELECTRIC REMOTE CONTROL MIRROR

main87940-0D918iNLP10..FRP..RHD..SOL;SCP1#..FRP..RHD..(4FC,5F);SCP10..FRP..RHD..SOL..5FS200508

ELECTRIC REMOTE CONTROL MIRROR

9016360021

main90163-60021

9017906311

main90179-06311

7 parts on this diagram · 1 diagram in section
