RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1W(RADIO) 0002 1W/O(RADIO) 0003 1W(RADIO) 0004 1CONDENSER

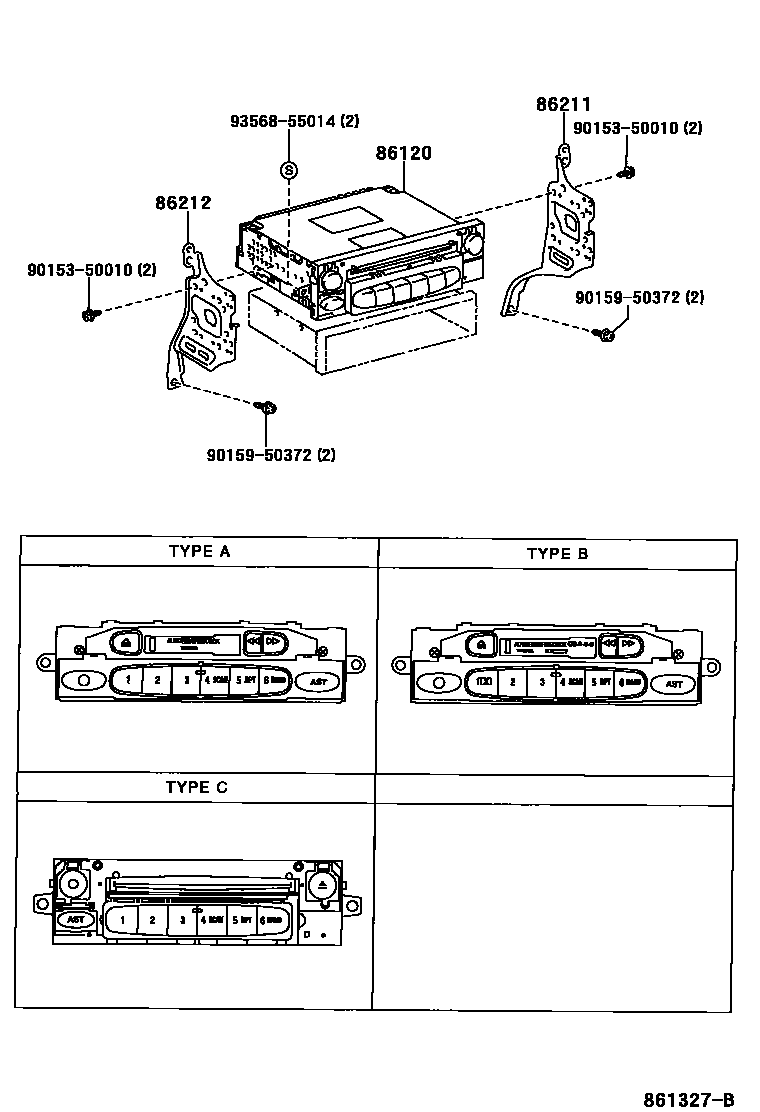

86120RECEIVER ASSY, RADIO

main86120-0D010iSCP10200101-200108

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-0D011iSCP10200108-200201

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-0D012iSCP1#200201-200302

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-0D020iSCP10200101-200108

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-0D021iSCP10200108-200201

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-0D022iSCP1#200201-200302

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-0D030iSCP1#200101-200302

MATSUSHITA,ID=W53805,TYPE C:REFER TO ILLUSTRATION

main86120-0D070iNLP10,SCP1#..FRP200302

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-0D130iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-0D140iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

MATSUSHITA,ID=W53806,TYPE C:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-52010iSCP1#200101-200302

main86211-52140iNLP10,SCP1#..FRP200302

86212BRACKET, RADIO, NO.2

main86212-52010iSCP1#200101-200302

main86212-52130iNLP10,SCP1#..FRP200302

9015350010

main90153-50010

9015950372

main90159-50372

9356855014

main93568-55014

6 parts on this diagram · 4 diagrams in section
