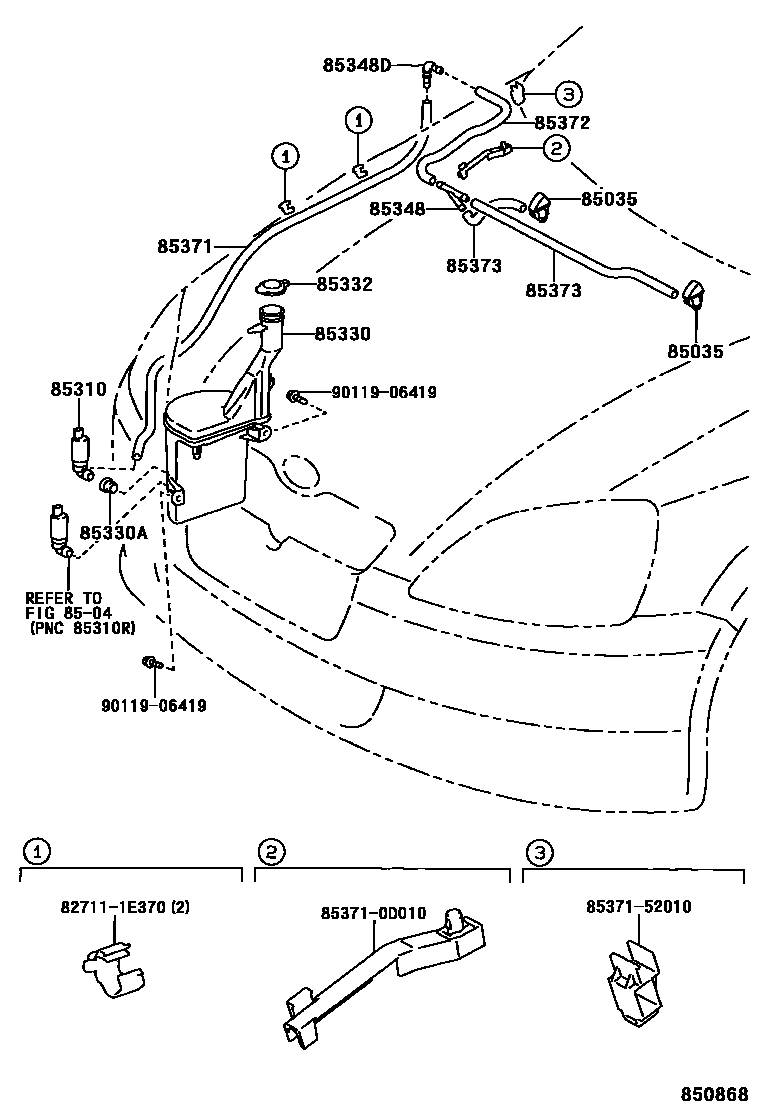

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-0D010×2iNLP10,SCP1#..FRP..RHD200302-200503

main85381-0D011×2iNLP10,SCP1#..FRP..RHD200504

main85381-0D020×2iSCP1#..LHD200101-200302

main85381-0D021×2iNLP10,SCP1#..FRP..LHD200504

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-05030iSCP1#200101-200302

main85330-05031iNLP10,SCP1#..FRP200506

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D010iSCP1#200101-200302

85330ABUSH, WINDSHIELD WASHER JAR

main90069-20005iNLP10,SCP1#..FRP200506

85332CAP, WINDSHIELD WASHER JAR

main85316-0D010iSCP1#200101-200302

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85378-05030iSCP1#200101-200302

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85375-0D010iSCP1#200101-200302

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-16010iSCP1#200101-200302

*H,L=1130

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-16009iSCP1#200101-200302

*H,L=525

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90069-16009iSCP1#200101-200302

*H,L=100

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

853710D010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-0D010

8537152010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52010

9011906419

main90119-06419

15 parts on this diagram · 1 diagram in section
