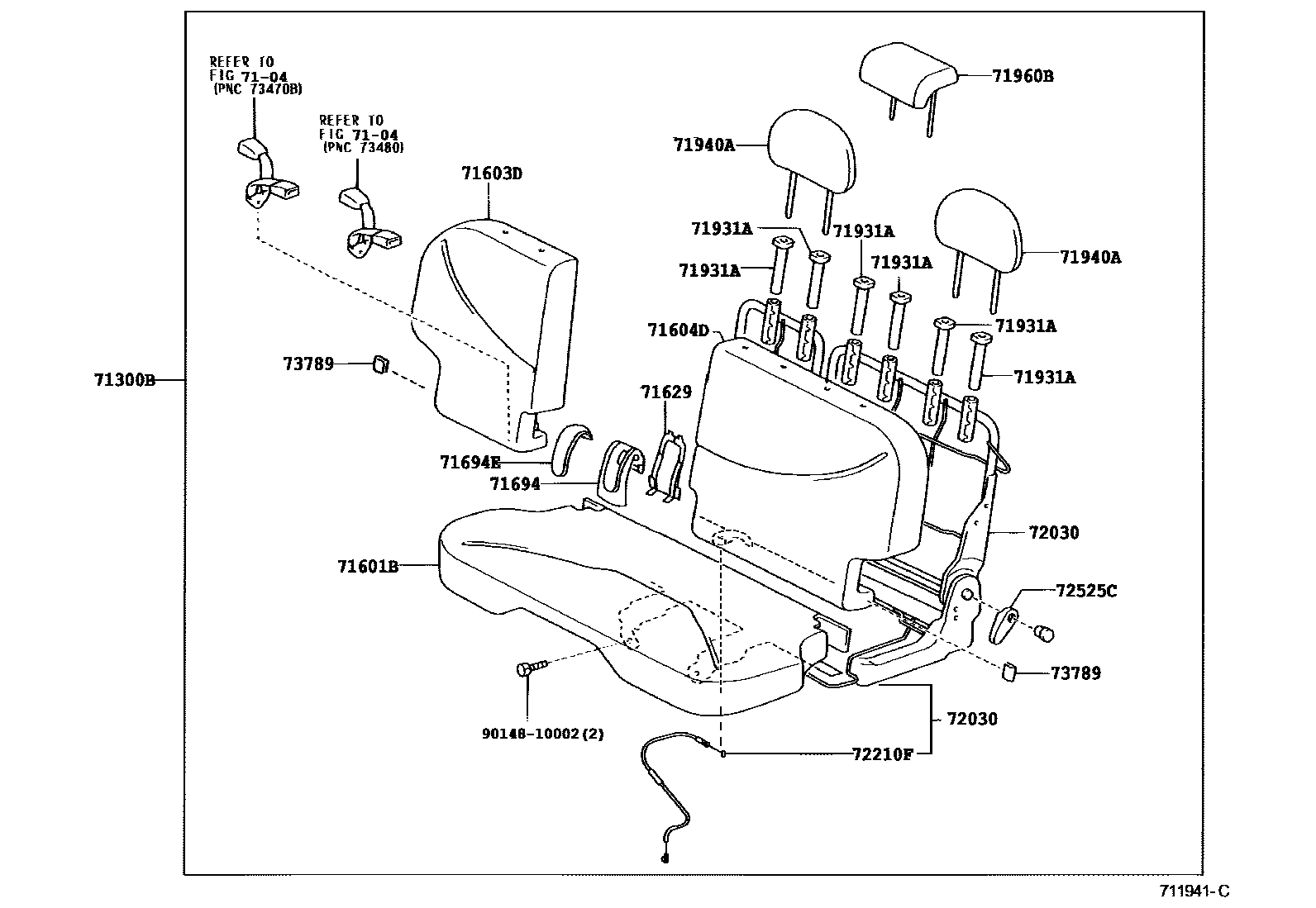

REAR SEAT & SEAT TRACK
7104SEAT BELT & CHILD RESTRAINT SEAT
71300BSEAT ASSY, REAR (BENCH SEAT)
SEAT = TYPE C-*104,DARK GRAY,TRIM1#,7#
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,DARK GRAY,TRIM1#,7#
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104 & W(CENTER HEADREST),DARK GRAY,TRIM1#
SEAT = TYPE B-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104 & W(CENTER HEADREST),DARK GRAY,TRIM1#
SEAT = TYPE A-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104,DARK GRAY,TRIM1#,7#
SEAT = TYPE C-*104,DARK GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,DARK GRAY,TRIM1#,7#
SEAT = TYPE B-*104,DARK GRAY,TRIM1#
SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104 & W(CENTER HEADREST),DARK GRAY,TRIM1#
SEAT = TYPE B-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104,DARK GRAY,TRIM1#
SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104 & W(CENTER HEADREST),DARK GRAY,TRIM1#
SEAT = TYPE A-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
SEAT = TYPE C-*104 & W(CENTER HEADREST),DARK GRAY,TRIM1#
SEAT = TYPE C-*104 & W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
71601BPAD SUB-ASSY, REAR SEAT CUSHION W/COVER
COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC,FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
COLD SPEC & W(*80),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC & W(*80),FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
DK. GRAY,TRIM10,11
-,TRIM17
TRIM18
DK. GRAY,TRIM10,11
main71601-0D070-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200501-200511
ACM PACKAGE,DK. GRAY,TRIM19
BLUE,TRIM10,11,17,18
71603DPAD SUB-ASSY, REAR SEATBACK W/COVER, RH
COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC,FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
COLD SPEC,W(FRONT SEAT AIR BAG),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC,W(FRONT SEAT AIR BAG),FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
W/O(HEAD REST),DK. GRAY,TRIM10,11
W/O(HEAD REST),-,TRIM17
DK. GRAY,TRIM10,11
-,TRIM17
DK. GRAY,TRIM10,11
main71603-0D110-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200501-200511
DK. GRAY,TRIM19
BLUE,TRIM18
71604DPAD SUB-ASSY, REAR SEATBACK W/COVER, LH
COLD SPEC,SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC,FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
COLD SPEC,W(FRONT SEAT AIR BAG),SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#
COLD SPEC,W(FRONT SEAT AIR BAG),FRENCH TURQUOISE,TRIM7#; FRENCH TURQUOISE,TRIM7#
W/O(HEAD REST),DK. GRAY,TRIM10,11
W/O(HEAD REST),-,TRIM17
W(REAR HEADREST 2),DK. GRAY,TRIM10,11
W(REAR HEADREST 2),-,TRIM17
W(REAR HEADREST 3),DK. GRAY,TRIM10,11
W(REAR HEADREST 3),-,TRIM17
DK. GRAY,TRIM10,11
main71604-0D120-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200501-200511
DK. GRAY,TRIM19
BLUE,TRIM10,11,17,18
71629COVER, REAR SEAT CUSHION HINGE
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
DK.GRAY,TRIM1#
71694COVER, REAR SEAT CUSHION HINGE, LOWER LH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
DK.GRAY,TRIM1#
71694ECOVER, REAR SEAT CUSHION HINGE, INNER LH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
71931ASUPPORT, REAR SEAT HEADREST
W(LOCK),SHADOW GRAY,TRIM1#; W(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1#
main71930-0D010-B1×3iNLP10,SCP1#..FRP..(TRSTD,TSGS); NLP10,SCP1#..FRP..TRSTD; NLP10..FRP..SOL;SCP10..FRP..SOL..5FS; SCP1#..FRP..SOL..(4FC,5F)200302-200511
W(LOCK),DK.GRAY,TRIM1#; W(LOCK),DK.GRAY,TRIM10,11; W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1#; W(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11
W(LOCK),FRENCH TURQUOISE,TRIM7#; W(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
W/O(LOCK),SHADOW GRAY,TRIM1#; W/O(LOCK),W(CENTER HEADREST),SHADOW GRAY,TRIM1#
main71931-0D010-B1×3iNLP10,SCP1#..FRP..(TRSTD,TSGS); NLP10,SCP1#..FRP..TRSTD; NLP10..FRP..SOL;SCP10..FRP..SOL..5FS; SCP1#..FRP..SOL..(4FC,5F)200302-200511
W/O(LOCK),DK.GRAY,TRIM1#; W/O(LOCK),DK.GRAY,TRIM10,11; W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM1#; W/O(LOCK),W(CENTER HEADREST),DK.GRAY,TRIM10,11
W/O(LOCK),FRENCH TURQUOISE,TRIM7#; W/O(LOCK),W(CENTER HEADREST),FRENCH TURQUOISE,TRIM7#
71940AHEADREST ASSY, REAR SEAT
SEAT = TYPE C-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE C-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE B-*104,SHADOW GRAY,TRIM1#
SEAT = TYPE B-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE A-*104,SHADOW GREY,TRIM1#
SEAT = TYPE A-*104,FRENCH TURQUOISE,TRIM7#
SEAT = TYPE D-*104,SHADOW GREY,TRIM1#
SEAT = TYPE D-*104,FRENCH TURQUOISE,TRIM7#
main71910-0D150-B0×2iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200501-200511
DK. GRAY,TRIM19
BLUE,TRIM10,11,17,18
DK. GRAY,TRIM10,11,17
DK. GRAY,TRIM10,11
71960BHEADREST ASSY, REAR SEAT, CENTER
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SHADOW GREY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SHADOW GREY,TRIM1#
FRENCH TURQUOISE,TRIM7#
main71960-0D050-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS200501-200511
ACM PACKAGE,DK. GRAY,TRIM19
BLUE,TRIM10,11,17,18
DK. GRAY,TRIM10,11,17
DK. GRAY,TRIM10,11
72030ADJUSTER ASSY, REAR NO.1 SEAT
W/O(HEAD REST)
W(CENTER HEADREST)
72210FCABLE ASSY, SEAT TRACK CONTROL
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
SHADOW GRAY,TRIM1#
DK.GRAY,TRIM1#; DK.GRAY,TRIM10,11
FRENCH TURQUOISE,TRIM7#
73789LABEL, CRS INFORMATION
MEDIUM GRAY,TRIM1#,7#
9014810002
main90148-10002
16 parts on this diagram · 2 diagrams in section
