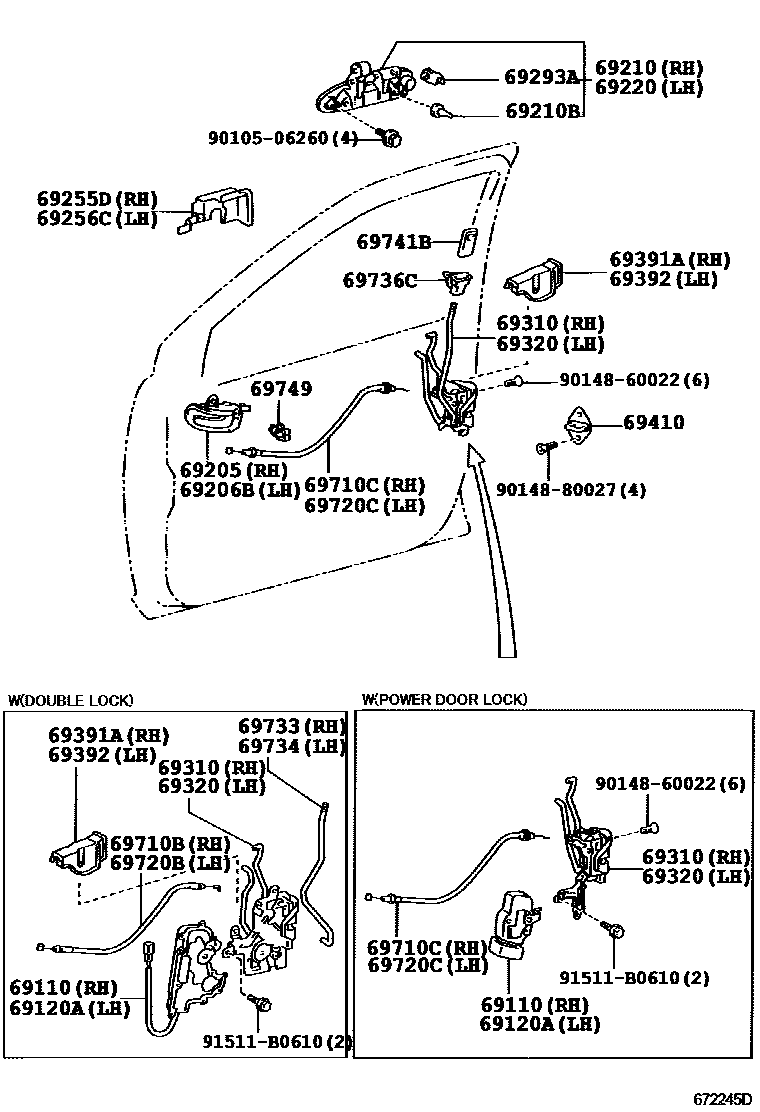

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SILVER PAINTED,SILVER,TRIM10,11,17
SILVER PAINTED,SILVER,TRIM10,11
UNPAINTED,DK.GRAY,TRIM10,11,17
DK.GRAY,TRIM10,11,17,18,19
UNPAINTED,DK.GRAY,TRIM10,11,17,18
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SHADOW GRAY,TRIM1#
FRENCH TURQUOISE,TRIM7#
SILVER PAINTED,SILVER,TRIM10,11
SILVER PAINTED,SILVER,TRIM10,11,17
DK.GRAY,TRIM10,11,17,18,19
UNPAINTED,DK.GRAY,TRIM10,11,17
UNPAINTED,DK.GRAY,TRIM10,11,17,18
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.
FOR COLOR PAINT PARTS
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
BLACK
FOR COLOR PAINT PARTS
69255DPROTECTOR, DOOR OUTSIDE HANDLE
69256CPROTECTOR, DOOR OUTSIDE HANDLE, LH
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
RH
LH
69310LOCK ASSY, FRONT DOOR, RH
sub69310-0D011
W(POWER DOOR LOCK)
sub69310-0D031
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69320LOCK ASSY, FRONT DOOR, LH
sub69320-0D011
W(POWER DOOR LOCK)
sub69320-0D031
W(POWER DOOR LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
W(POWER DOOR LOCK & DOUBLE LOCK)
69391ACOVER, FRONT DOOR LOCK, OUTER RH
W(DOUBLE-LOCK)
69392COVER, FRONT DOOR LOCK, OUTER LH
W(DOUBLE-LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69720CCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL
69733LINK, FRONT DOOR INSIDE LOCKING, RH
69734LINK, FRONT DOOR INSIDE LOCKING, LH
69736CGUIDE, FRONT DOOR LOCKING LINK
69741BKNOB, FRONT DOOR LOCK CONTROL
DK.GRAY,TRIM10,11
sub69741-87003
DK.GRAY,TRIM10,11,17,18,19
sub69741-87003
69749CLAMP, FRONT DOOR LOCK LINK
W(DOUBLE-LOCK)
9010506260
main90105-06260
9014860022
main90148-60022
9014880027
main90148-80027
91511B0610
main91511-B0610
28 parts on this diagram · 1 diagram in section
