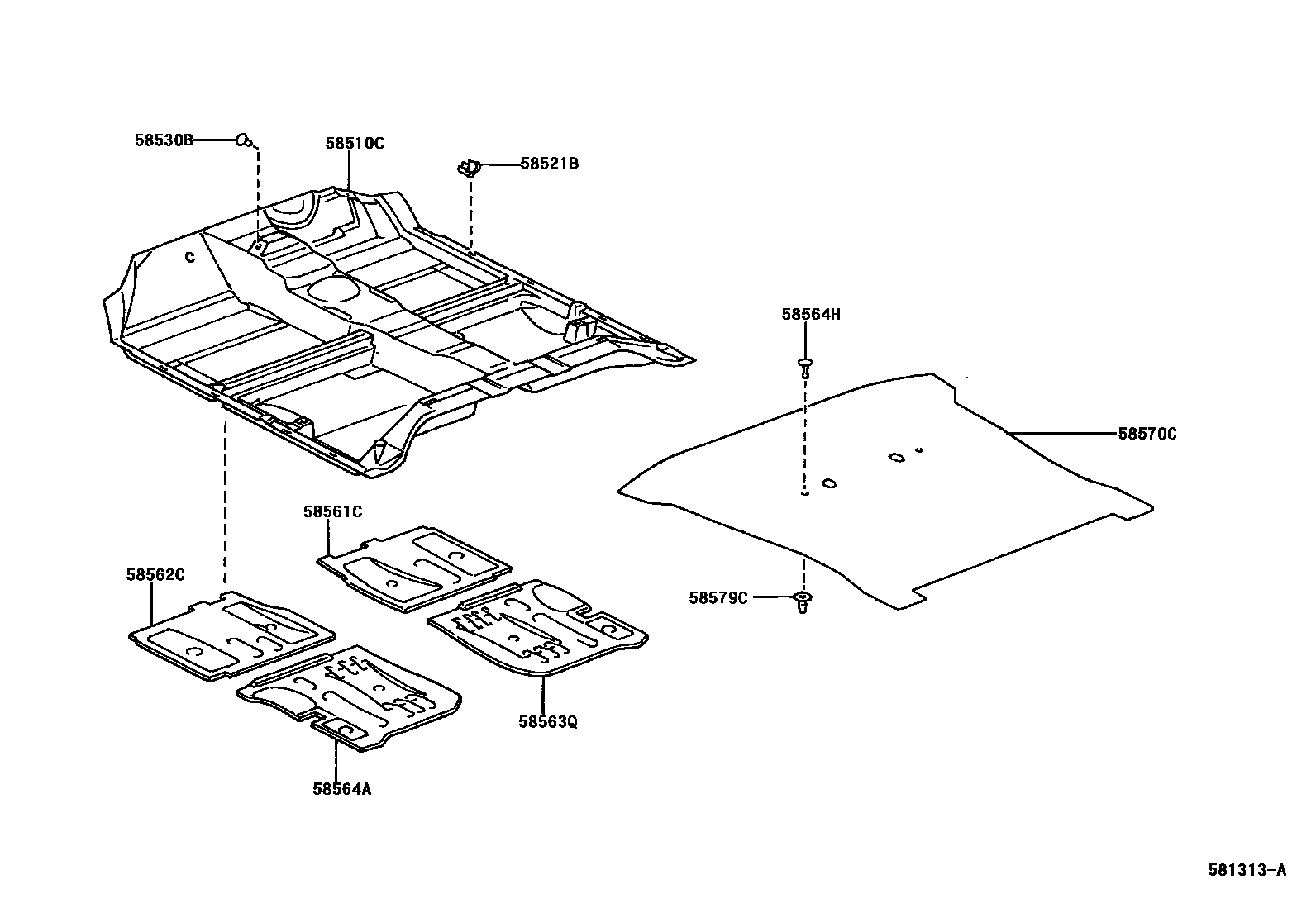

MAT & CARPET
58510CCARPET ASSY, FRONT FLOOR, FRONT
W(REAR HEATER DUCT),GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
W(REAR HEATER DUCT),GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
W(KICK DOWN SWITCH & REAR HEATER DUCT),GRAY,TRIM1#,7#; W(REAR HEATER DUCT),GRAY,TRIM1#,7#
GRAY,TRIM1#,7#
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11; W(REAR HEATER DUCT),DK.GRAY,TRIM10,11,17,18,19
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,11,17,18,19
main58510-0D300-B0iNLP10,SCP1#..FRP..RHD..3D..SOL; SCP1#..FRP..RHD..3D..TRSTD..5F; SCP10..FRP..RHD..3D..TRSTD..5FS200302
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,11,17; DK.GRAY,TRIM10,11,17,18,19
W(REAR HEATER DUCT),DK.GRAY,TRIM10,11; W(REAR HEATER DUCT),DK.GRAY,TRIM10,11,17,18,19
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,11,17,18,19
main58510-0D330-B0iNLP10,SCP1#..FRP..RHD..5D..SOL; SCP1#..FRP..RHD..5D..TRSTD..5F; SCP10..FRP..RHD..5D..TRSTD..5FS200302
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,11,17; DK.GRAY,TRIM10,11,17,18,19
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58562CSILENCER, FRONT FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58564ASILENCER, FRONT FLOOR, NO.4
58564HCLIP(FOR REAR FLOOR CARPET)
SHADOW GRAY,TRIM1#,7#
DK.GRAY,TRIM10,11,17
58570CCARPET ASSY, REAR FLOOR
main58570-0D010-B0iSCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS; SCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302
DARK GRAY,TRIM10,11,17; DARK GRAY,TRIM10,11,17,18,19
BLACK,TRIM1#,7#
W(INSULATOR),DARK GRAY,TRIM10,11,17,18
W(INSULATOR),BLACK,TRIM1#,7#
58579CCLIP, REAR FLOOR CARPET SET
10 parts on this diagram · 1 diagram in section
