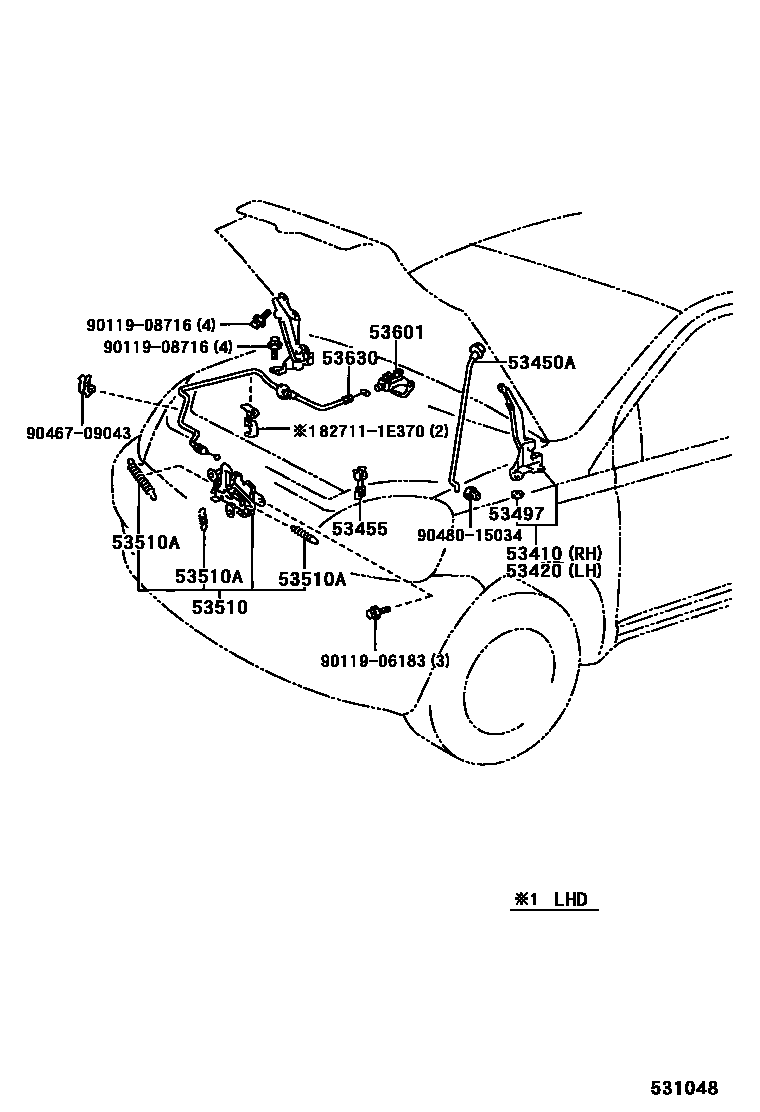

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0D010iNLP10,SCP1#..FRP200302

53420HINGE ASSY, HOOD, LH

main53420-0D010iSCP1#200101-200302

53450ASUPPORT ASSY, HOOD, LH

main53440-52010iSCP1#200101-200210

main53440-52100iSCP1#200210-200302

53455CLAMP, HOOD SUPPORT ROD

main53455-52010iSCP1#200101-200302

53497PAD, HOOD HINGE, NO.1

main53497-0D010×4iNLP10,SCP1#..FRP200302

T=1.0

53510LOCK ASSY, HOOD

main53510-0D010iSCP1#..RHD200101-200302

main53510-0D020iSCP1#..LHD200101-200302

main53510-0D070iNLP10,SCP1#..FRP..RHD200302

main53510-0D080iNLP10,SCP1#..FRP..LHD200302

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50265iNLP10,SCP1#..FRP200302

WD=1.2,CW=8.5

main90080-50266iSCP1#200101-200302

WD=0.9,CW=20.75

main90080-50267iSCP1#200101-200302

WD=1.6,CW=18

main90080-50365iNLP10,SCP1#..FRP200302

WD=1.8,CW=16

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-B0iNLP10,SCP1#..FRP..SOL; SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS; SCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302

DK.GRAY,TRIM10; DK.GRAY,TRIM10,17; DK.GRAY,TRIM10,17,18,19

main53601-05030-B1iNLP10,SCP1#..FRP200302

MD.GRAY,TRIM11

main53601-52010-B0iSCP1#200101-200302

BLUE GRAY,TRIM1#

main53601-52010-G0iSCP1#200101-200302

MIST GREEN,TRIM7#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0D010iSCP1#200101-200302

main53630-0D011iNLP10,SCP1#..FRP200507

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

9011906183

main90119-06183

9011908716

main90119-08716

9046709043

main90467-09043

9048015034

main90480-15034

14 parts on this diagram · 1 diagram in section
