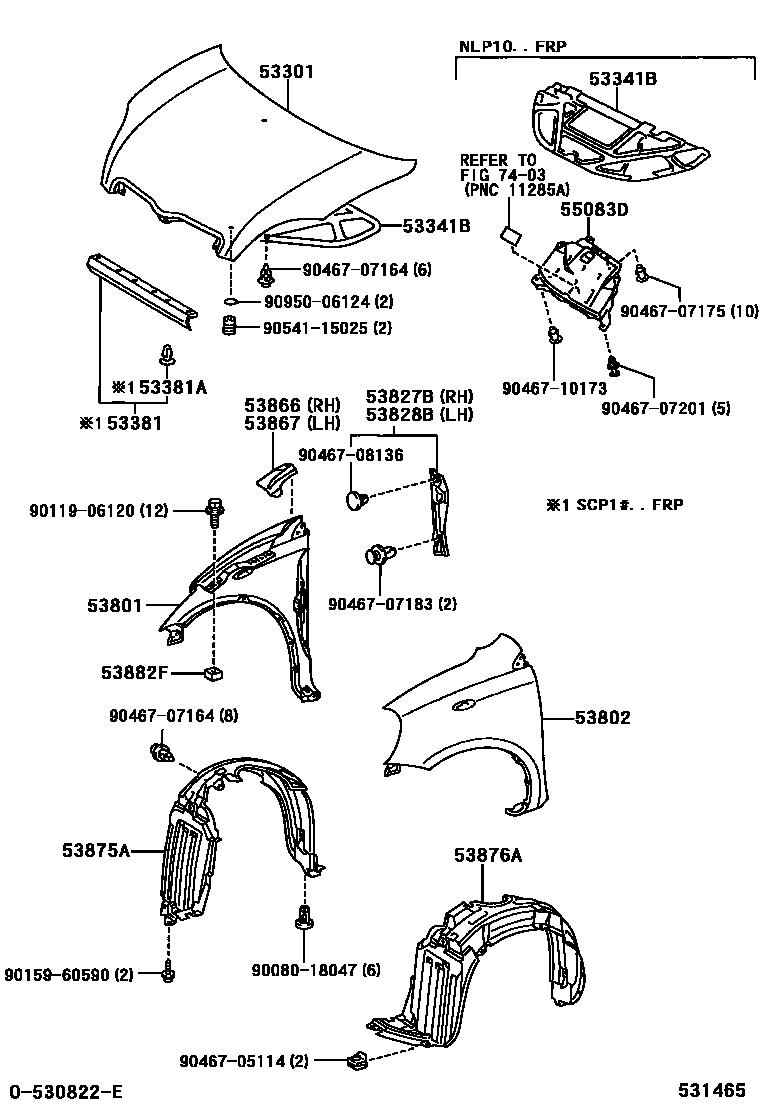

HOOD & FRONT FENDER
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882FSEAL, FRONT FENDER
55083DDUCT SUB-ASSY, FRONT VENTILATOR
7403CAUTION PLATE (EXTERIOR & INTERIOR)
9008018047
main90080-18047
9011906120
main90119-06120
9015960590
main90159-60590
9046705114
main90467-05114
9046707164
main90467-07164
9046707175
main90467-07175
9046707183
main90467-07183
9046707201
main90467-07201
9046708136
main90467-08136
9046710173
main90467-10173
9054115025
main90541-15025
9095006124
main90950-06124
27 parts on this diagram · 1 diagram in section
