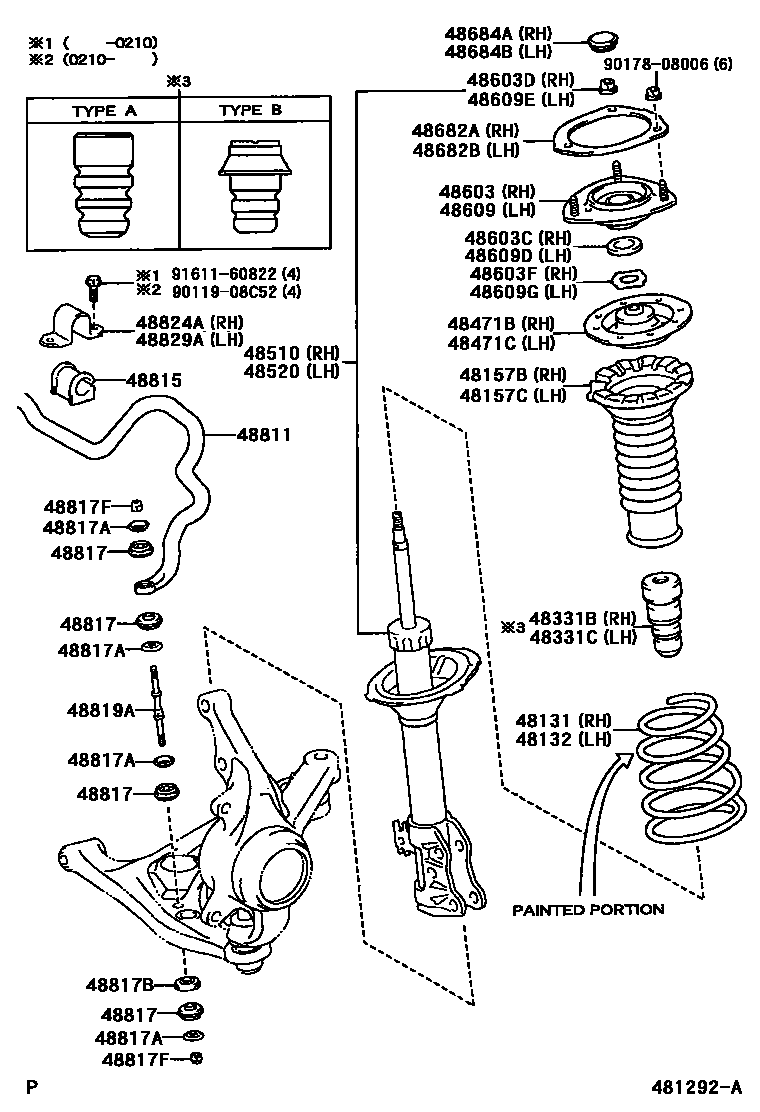

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-0D010iSCP1#200101-200302

BLUE PAINTED

main48131-0D020iSCP1#..LHD200101-200302

RED PAINTED

main48131-0D160iNLP10..FRP200302

main48131-0D170iSCP12..FRP..SOL..5F200302

WHITE PAINTED

main48131-0D180iSCP10..FRP..TSGS200306

main48131-0D250iSCP1#..FRP..(SOL,TRSTD)200302

BLUE PAINTED

main48131-0D260iSCP1#..FRP..LHD..(SOL,TRSTD)200302

RED PAINTED

48132SPRING, FRONT COIL, LH

main48131-0D010iSCP1#200101-200302

BLUE PAINTED

main48131-0D020iSCP1#..LHD200101-200302

RED PAINTED

main48131-0D160iNLP10..FRP200302

main48131-0D170iSCP12..FRP..SOL..5F200302

WHITE PAINTED

main48131-0D180iSCP10..FRP..TSGS200306

main48131-0D250iSCP1#..FRP..(SOL,TRSTD)200302

BLUE PAINTED

main48131-0D260iSCP1#..FRP..LHD..(SOL,TRSTD)200302

RED PAINTED

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0D010iSCP1#200101-200302

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0D010iSCP1#200101-200302

48331BBUMPER, FRONT SPRING, RH

main48331-0D010iSCP1#200101-200302

TYPE A:REFER TO ILLUSTRATION

main48331-0D050iSCP12..FRP..SOL..5F200302

TYPE B:REFER TO ILLUSTRATION

main48331-52020iSCP10..FRP..TSGS200306

48331CBUMPER, FRONT SPRING, LH

main48331-0D010iSCP1#200101-200302

TYPE A:REFER TO ILLUSTRATION

main48331-0D050iSCP12..FRP..SOL..5F200302

TYPE B:REFER TO ILLUSTRATION

main48331-52020iSCP10..FRP..TSGS200306

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48044-52010iSCP1#200101-200302

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48044-52010iSCP1#200101-200302

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09510iSCP10..FRP200101-200205

MARK 48510-0D010,COIL SPRING:BLUE PAINTED

main48510-09520iSCP10..FRP..LHD200101-200205

MARK 48510-0D020,COIL SPRING:RED PAINTED

main48510-09A04iNLP10..FRP200302

MARK 48510-0D100

main48510-09A05iSCP12..FRP..SOL..5F200302

MARK 48510-0D110

main48510-09A06iSCP1#..FRP..(SOL,TRSTD)200302

MARK 48510-0D150

main48510-09A07iSCP1#..FRP..LHD..(SOL,TRSTD)200302

MARK 48510-0D160

main48510-09A10iSCP1#..LHD200205-200302

MARK 48510-0D090

main48510-09A20iSCP1#..FRP200205-200302

MARK 48510-0D080

main48510-59885iSCP10..FRP..TSGS200306

MARK 48510-52560

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-09510iSCP10..FRP200101-200205

MARK 48510-0D010,COIL SPRING:BLUE PAINTED

main48510-09520iSCP10..FRP..LHD200101-200205

MARK 48510-0D020,COIL SPRING:RED PAINTED

main48510-09A04iNLP10..FRP200302

MARK 48510-0D100

main48510-09A05iSCP12..FRP..SOL..5F200302

MARK 48510-0D110

main48510-09A06iSCP1#..FRP..(SOL,TRSTD)200302

MARK 48510-0D150

main48510-09A07iSCP1#..FRP..LHD..(SOL,TRSTD)200302

MARK 48510-0D160

main48510-09A10iSCP1#..LHD200205-200302

MARK 48510-0D090

main48510-09A20iSCP1#..FRP200205-200302

MARK 48510-0D080

main48510-59885iSCP10..FRP..TSGS200306

MARK 48510-52560

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D010iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

W(POWER STEERING),BLUE PAINTED

main48609-0D020iSCP1#..LUNA,TRSTD200101-200302

W(MANUAL STEERING)

main48609-0D090iSCP12..FRP..SOL..5F200302

W(POWER STEERING),WHITE PAINTED

48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)

main90303-22049iSCP1#200101-200302

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-12145iSCP1#200101-200302

48603FSPACER(FOR FRONT SUSPENSION SUPPORT RH)

main90561-23002iSCP1#200101-200302

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D010iSCP1#200101-200302

W(POWER STEERING),BLUE PAINTED

main48609-0D020iNLP10,SCP1#..FRP..(TRSTD,TSGS)..5F200302

W(MANUAL STEERING)

main48609-0D090iSCP12..FRP..SOL..5F200302

W(POWER STEERING),WHITE PAINTED

48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)

main90303-22049iSCP1#200101-200302

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-12145iSCP1#200101-200302

48609GSPACER(FOR FRONT SUSPENSION SUPPORT LH)

main90561-23002iSCP1#200101-200302

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-52010iSCP1#200101-200302

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-52010iSCP1#200101-200302

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52010iNLP10,SCP1#..FRP200302

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52010iNLP10,SCP1#..FRP200302

48811BAR, STABILIZER, FRONT

main48811-0D010iSCP1#200101-200302

main48811-0D050iNLP10..FRP200302

main48811-52040iSCP10..FRP..TSGS200306

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0D010×2iSCP1#200101-200302

main48815-52020×2iSCP10..FRP..TSGS200306

48817CUSHION, FRONT STABILIZER

main48817-0D010×8iSCP1#200101-200302

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02179×8iNLP10,SCP1#..FRP200302

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02178×2iSCP1#200101-200302

48817FNUT(FOR FRONT STABILIZER BAR)

main94182-10800×4iNLP10,SCP1#..FRP200302

48819ABOLT, FRONT STABILIZER

main48819-52010×2iSCP1#200101-200302

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52010iSCP10..FRP..TSGS200306

main48824-52031iSCP1#200101-200302

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52010iSCP10..FRP..TSGS200306

main48824-52031iSCP1#200101-200302

9011908C52

main90119-08C52

9017808006

main90178-08006

9161160822

main91611-60822

34 parts on this diagram · 1 diagram in section
