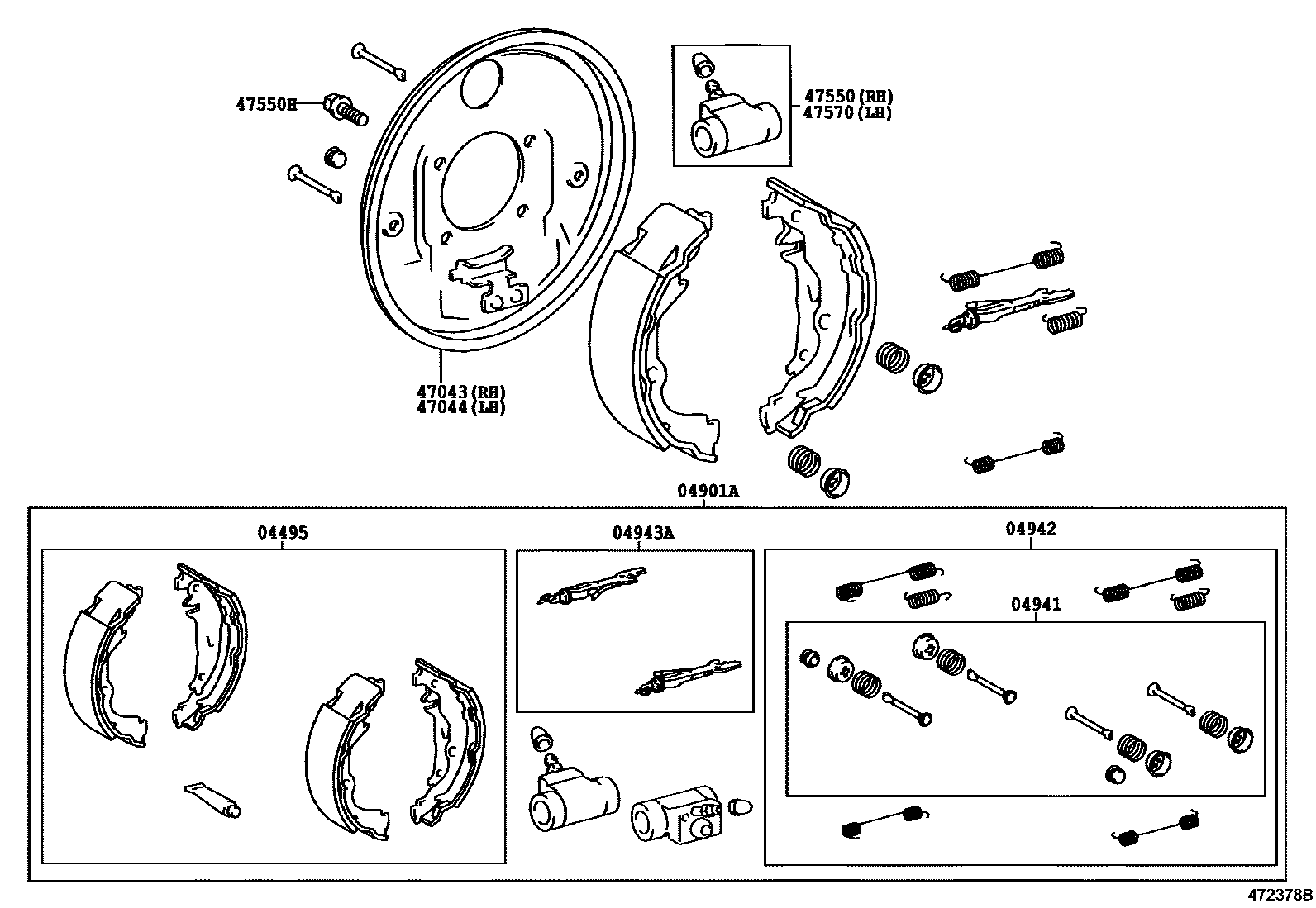

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04495SHOE KIT, REAR BRAKE
MARK FERODO 3634F
04901AMAINTENANCE KIT, REAR BRAKE
04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN
04942SPRING KIT, REAR BRAKE
04943ASTRUT KIT, REAR BRAKE
47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH
47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)
47550HBOLT(FOR REAR WHEEL CYLINDER)
47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)
10 parts on this diagram · 1 diagram in section
