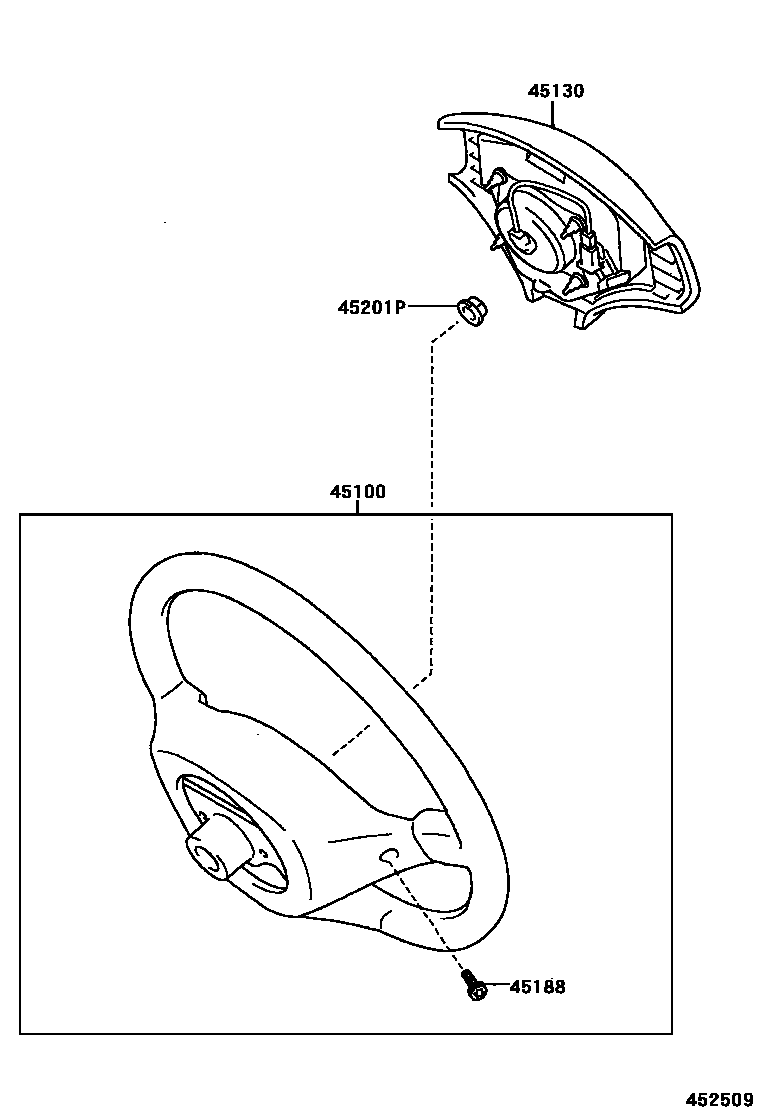

STEERING WHEEL
45100WHEEL ASSY, STEERING
3-SPOKE,URETHANE,MD.GRAY,TRIM1#
3-SPOKE,URETHANE,MIST GREEN,TRIM7#
3-SPOKE,LEATHER,MD.GRAY,TRIM1#
3-SPOKE,LEATHER,MIST GREEN,TRIM7#
main45100-0D080-B0iNLP10,SCP1#..FRP..SOL; SCP10..FRP..LHD..TRSTD..5FS; SCP10..FRP..RHD..TRSTD;SCP10..FRP..LHD..(TRSTD,TSGS)..5F200302
3-SPOKE,URETHANE,DK.GRAY,TRIM10,11; 3-SPOKE,URETHANE,DK.GRAY,TRIM10,11,17; 3-SPOKE,URETHANE,DK.GRAY,TRIM10,11,17,18,19
3-SPOKE,LEATHER,DK.GRAY,TRIM10,11; 3-SPOKE,LEATHER,DK.GRAY,TRIM10,11,17
3-SPOKE,LEATHER,W(AUDIO SWITCH),DK.GRAY,TRIM10,11,17,18
3-SPOKE,LEATHER,DK.GRAY & RED,TRIM19
45130BUTTON ASSY, HORN
URETHANE,MD.GRAY,TRIM1#
URETHANE,MIST GREEN,TRIM7#
LEATHER,SHADOW GRAY,TRIM1#
LEATHER,FRENCH TURQUOISE,TRIM7#
main45130-0D101-B0iNLP10,SCP1#..FRP..SOL; SCP1#..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP10..FRP..LHD..TRSTD..5FS; SCP10..FRP..TSGS;SCP10..FRP..RHD..TRSTD..5FS200302
DK.GRAY,TRIM10,11; DK.GRAY,TRIM10,11,17; DK.GRAY,TRIM10,11,17,18,19
45188SCREW, STEERING WHEEL PAD ATTACHING
L=18.0
45201PNUT, STEERING WHEEL SET
4 parts on this diagram · 1 diagram in section
