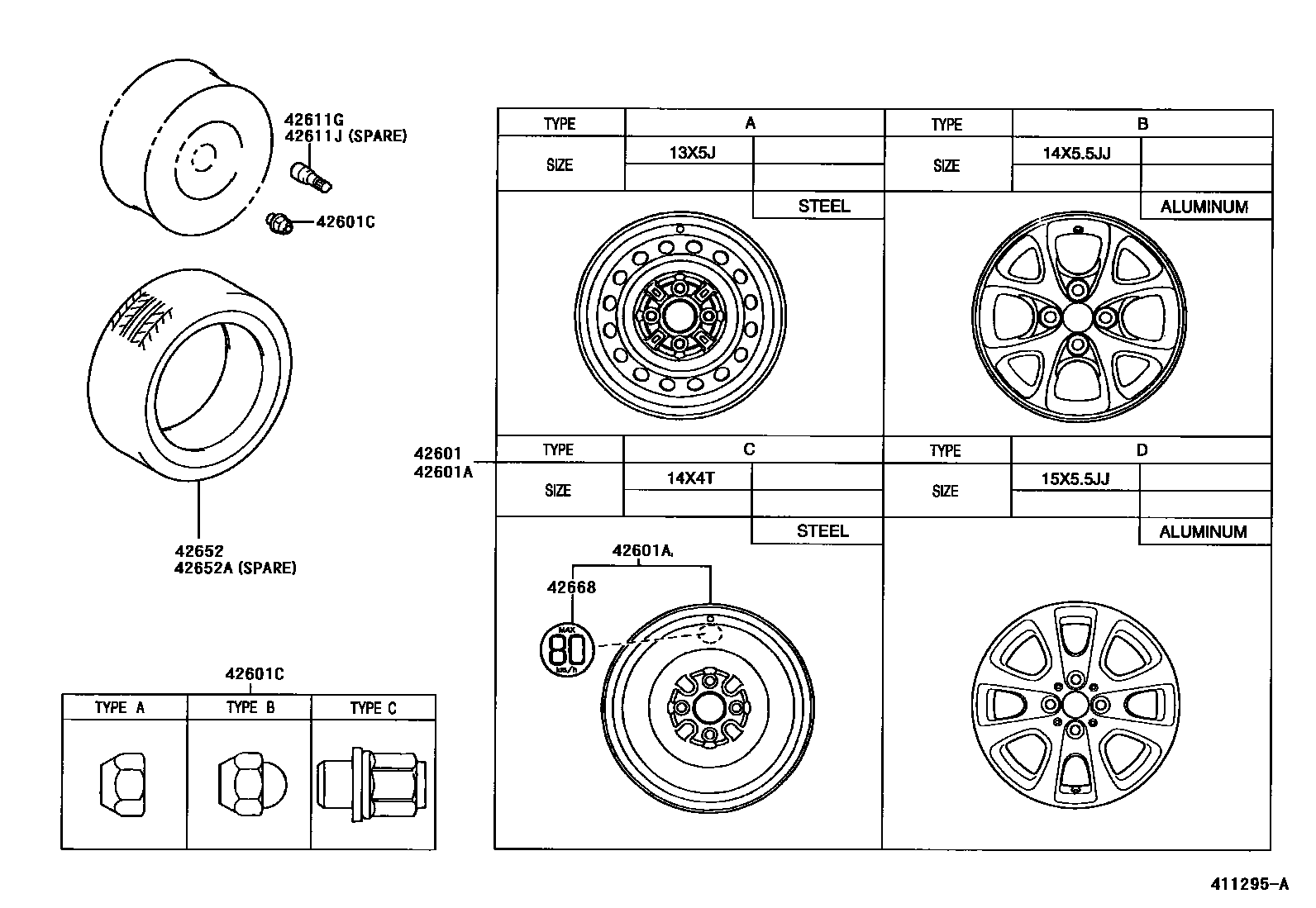

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-0D010iNLP10,SCP10..FRP..TRSTD200101-200303

13X5J,TYPE A:REFER TO ILLUSTRATION,SILVER

main42611-0D020iSCP12..FRP..LHD..5D..5F;NLP10,SCP10..FRP..(TRSTD,TSGS)200303-200406

13X5J,TYPE A:REFER ILLUST.

main42611-0D020iSCP10..TRSTD200101-200302

13X5J,TYPE A:REFER TO ILLUSTRATION,BLACK

main42611-0D030iNLP10..FRP..RHD;SCP1#..FRP..(SOL,TRSTD)200302-200406

14X5.5J,TYPE A:REFER ILLUST.

main42611-0D030iNLP10..FRP..LHD200101-200406

14X5.5J,TYPE A:REFER TO ILLUSTRATION

main42611-0D040iNLP10,SCP1#..FRP..(SOL,TRSTD)200302-200406

14X5.5J,TYPE B:REFER ILLUST.

main42611-0D040iSCP1#200101-200302

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-0D160iSCP12..FRP..SOL..5F200302-200406

15X5.5JJ,TYPE D:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-0D050iNLP10,SCP1#..FRP200101-200302

14X4T,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007iSCP10..FRP..TRSTD..5F;NLP10..FRP..LHD..TRSTD;SCP12..FRP..RHD..TRSTD;SCP12..FRP..LHD..3D..TRSTD200309

TYPE A:REFER ILLUST.

main90942-01007iSCP1#200101-200302

TYPE A:REFER TO ILLUSTRATION

main90942-01021iSCP10..TRSTD200101-200303

TYPE B:REFER TO ILLUSTRATION

main90942-01033iNLP10,SCP1#..FRP..(SOL,TRSTD)200302

TYPE C:REFER ILLUST.

main90942-01033iSCP1#200101-200302

TYPE C:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-45010iSCP1#200101-200302

main90942-05009iNLP10,SCP1#..FRP200302-200406

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45010iSCP1#200101-200302

main90942-05009iNLP10,SCP1#..FRP200302

42652TIRE

main42652-0D010iSCP10..LHD..TRSTD200101-200403

155/80R13

main42652-0D011iNLP10,SCP10..FRP..LHD..TRSTD200404-200406

155/80R13

main42652-0D020iSCP1#..LHD200101-200403

175/65R14 82T,MICHELIN

main42652-0D021iSCP1#..FRP..LHD..(SOL,TRSTD)200404-200406

175/65R14 82T,MICHELIN

main42652-0D030iNLP10,SCP10..FRP..RHD..TRSTD200101-200403

155/80R13 79T

main42652-0D031iNLP10,SCP10..FRP..RHD..TRSTD200404-200406

155/80R13 79T

main42652-0D040iNLP10,SCP1#..FRP..RHD200101-200403

175/65R14 82T

main42652-0D041iNLP10,SCP1#..FRP..RHD200404-200406

175/65R14 82T

main42652-0D060iNLP10,SCP10..FRP..LHD..TRSTD200101-200403

155/80R13 79T

main42652-0D061iNLP10,SCP10..FRP..LHD..TRSTD200404-200406

155/80R13 79T

main42652-0D070iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200302-200405

175/65R14,TYPE A:REFER ILLUST.

main42652-0D070iSCP1#..LHD200101-200405

175/65R14

main42652-0D080iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200101-200403

175/65R14 82T,GOOD YEAR

main42652-0D081iNLP10,SCP1#..FRP..LHD..(SOL,TRSTD)200404-200406

175/65R14 82T,GOOD YEAR

42652ATIRE (FOR SPARE)

main42652-16220iNLP10,SCP1#..FRP200101-200302

T115/70D14

main42652-52880iNLP10,SCP1#..FRP200508

T115/70D14 *D/L

main42652-52890iNLP10,SCP1#..FRP200508

T115/70D14 *T/Y

main42652-52A00iNLP10,SCP1#..FRP200508

T115/70D14 *Y/H

42668LABEL, COMPACT SPARE TIRE CAUTION

main42668-0D010iSCP1#200101-200302

8 parts on this diagram · 3 diagrams in section
