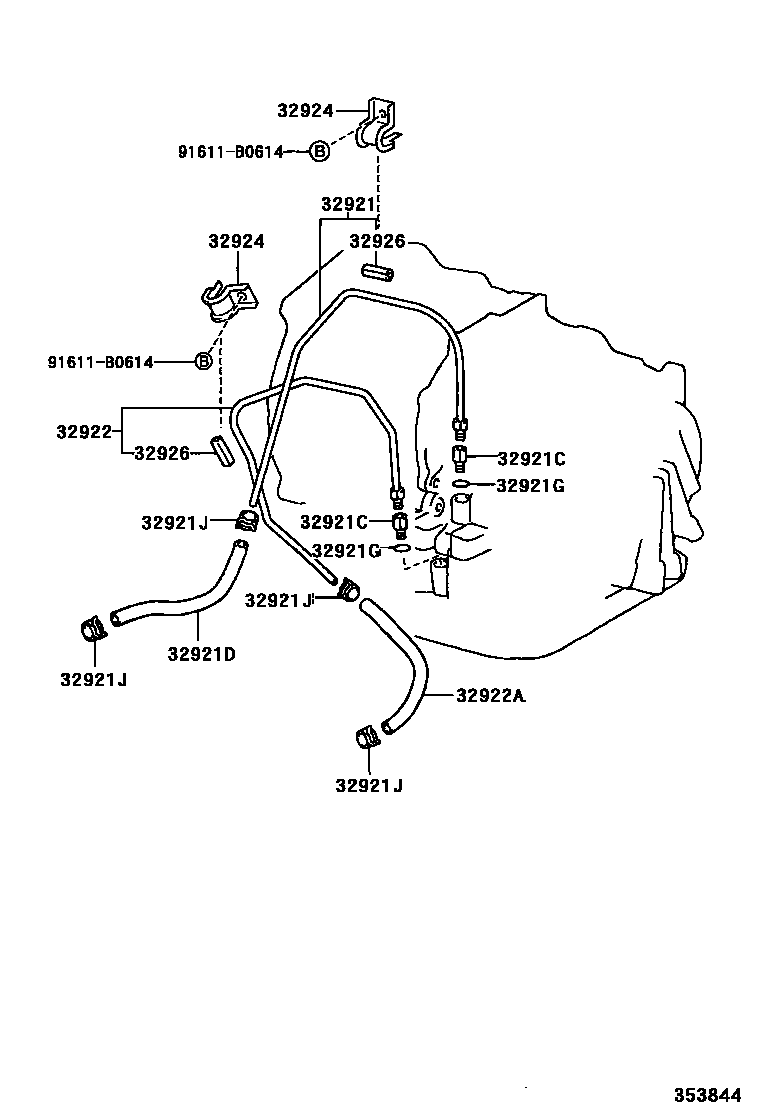

OIL COOLER & TUBE (ATM)

32921TUBE, OIL COOLER INLET, NO.1

main32921-52050iSCP12..4FC200205-200302

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007×2iSCP12..4FC200205-200302

32921DHOSE(FOR OIL COOLER INLET)

main90445-15050iSCP12..4FC200205-200302

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iSCP12..4FC200205-200302

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×4iSCP12..4FC200205-200302

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-52050iSCP12..4FC200205-200302

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15014iSCP12..4FC200205-200302

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-20070×2iSCP12..4FC200205-200302

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iSCP12..4FC200205-200302

L=30,ID=8

91611B0614

main91611-B0614

10 parts on this diagram · 1 diagram in section
